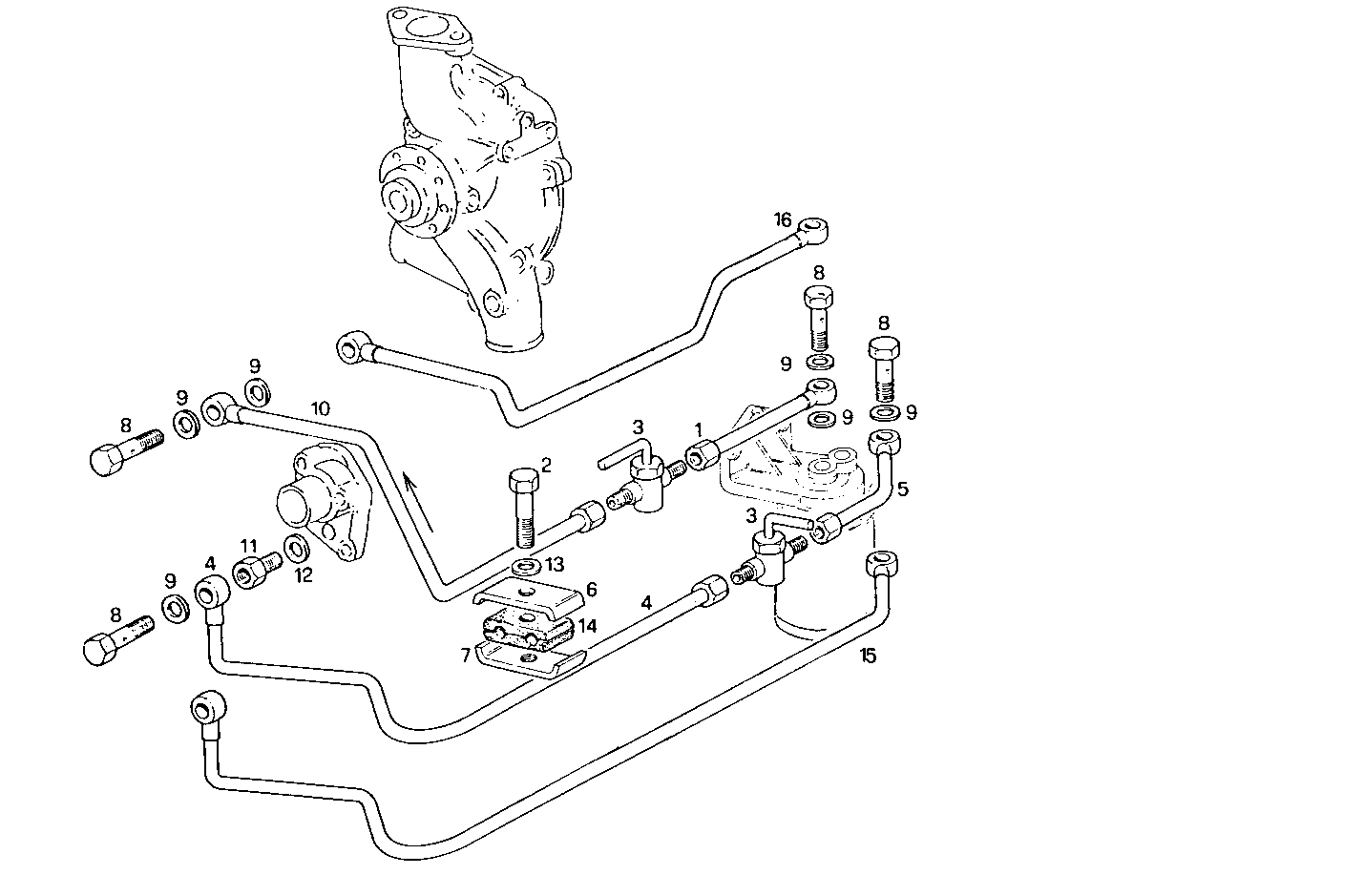

| Item |
Part number |
Description |
|
1 |
8014486 |
WATER PIPE [up to 12-97] |
|
2 |
16603824 |
SCREW M6X25 |
|
3 |
4734025 |
RETAINER COCK [up to 12-97] |
|
4 |
8014484 |
WATER PIPE [up to 12-97] |
|
5 |
8014485 |
WATER PIPE [up to 12-97] |
|
6 |
4644288 |
CLIP |
|
7 |
4644289 |
CLIP |
|
8 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
9 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
10 |
8014487 |
WATER PIPE [up to 12-97] |
|
11 |
4928330 |
PIPE SOCKET M16X1,5/M14X1,5 |
|
12 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
13 |
17088474 |
WASHER Ø6X12 MM |
|
14 |
4871771 |
RUBBER LUG |
|
15 |
8024489 |
WATER PIPE [from 12-97] |
|
16 |
8024490 |
WATER PIPE [from 12-97] |
