GE8281SRM44.30A60E

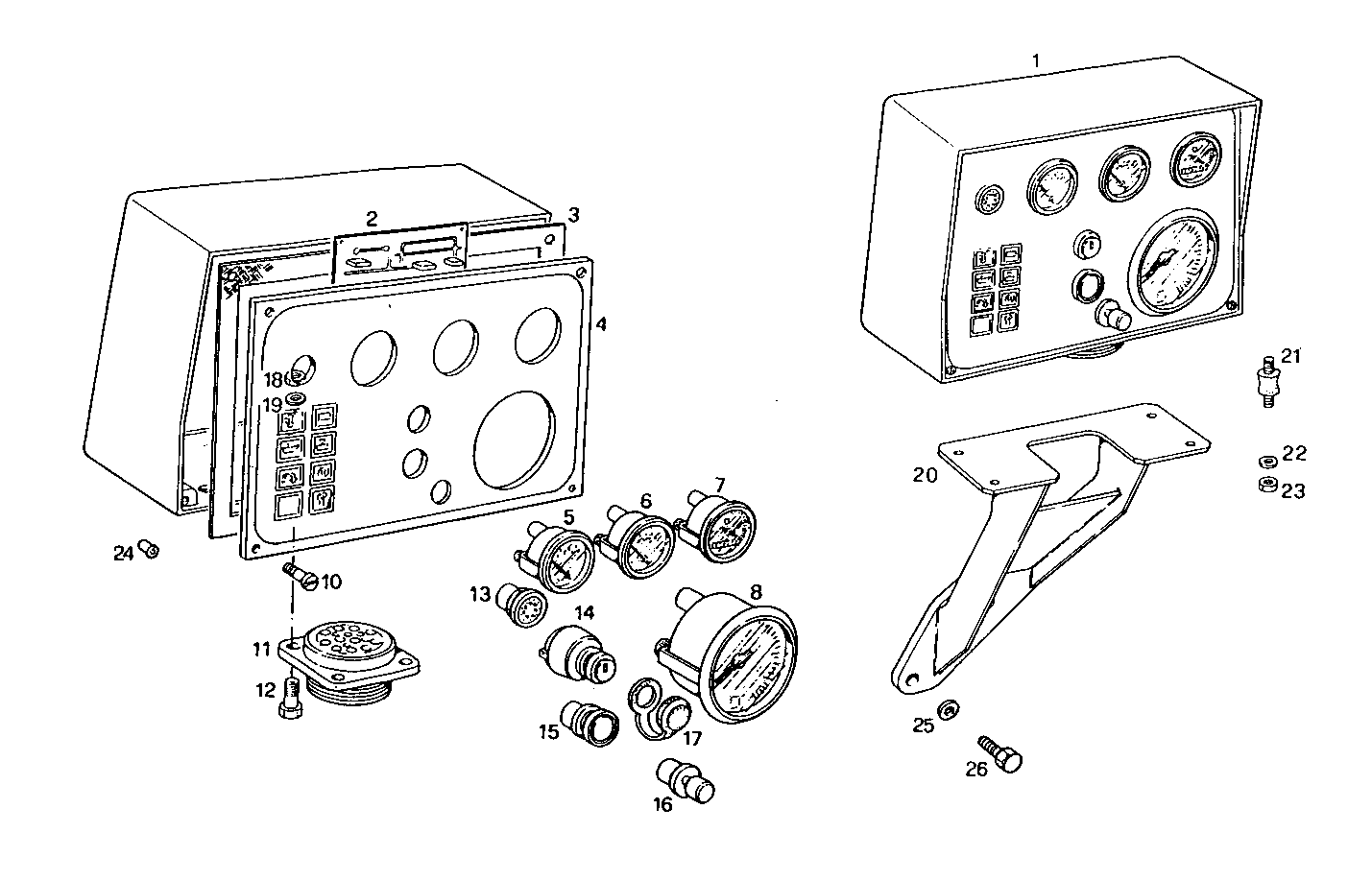

A38680904 ELECTRIC INSTRUMENTS PANEL - 24V - VDO [D 10-1997] [from10-1997]
| Item | Part number | Description |
|---|---|---|
| 1 | 8025055 | INSTRUMENTS BOARD |
| 2 | 8007783 | ELECTRONIC CARD |
| 3 | 8100350 | GASKET |
| 4 | 8010437 | SUPPORT |
| 5 | 8025017 | PRESSURE GAUGE 10 BAR |
| 6 | 8025016 | THERMOMETER |
| 7 | 8025018 | VOLTMETER |
| 8 | 8025019 | REVOLUTION COUNTER |
| 9 | 8110229 | WARNING LIGHT |
| 10 | 8103662 | SCREW M4X10 |
| 11 | 8105629 | CONNECTION |
| 12 | 17129714 | SCREW |
| 13 | 8110230 | ACOUSTIC HORN |
| 14 | 8103708 | SWITCH |
| 15 | 8025024 | PUSH BUTTON STOP |
| 16 | 8111824 | PUSH BUTTON RESET |
| 17 | 8110226 | CAP |
| 18 | 17037521 | NUT M3 |
| 19 | 17094004 | WASHER Ø3 MM |
| 20 | 8109785 | SUPPORT |
| 21 | 4910949 | RUBBER LUG |
| 22 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 23 | 17037821 | HEXAGON NUT M6X1 |
| 24 | 8025074 | LUMINOUS INDICATOR |
| 25 | 12646721 | WASHER Ø8X20 MM |
| 26 | 16607024 | HEXAGON BOLT M8X120 MM |
