GE8281SRM44.30A60E

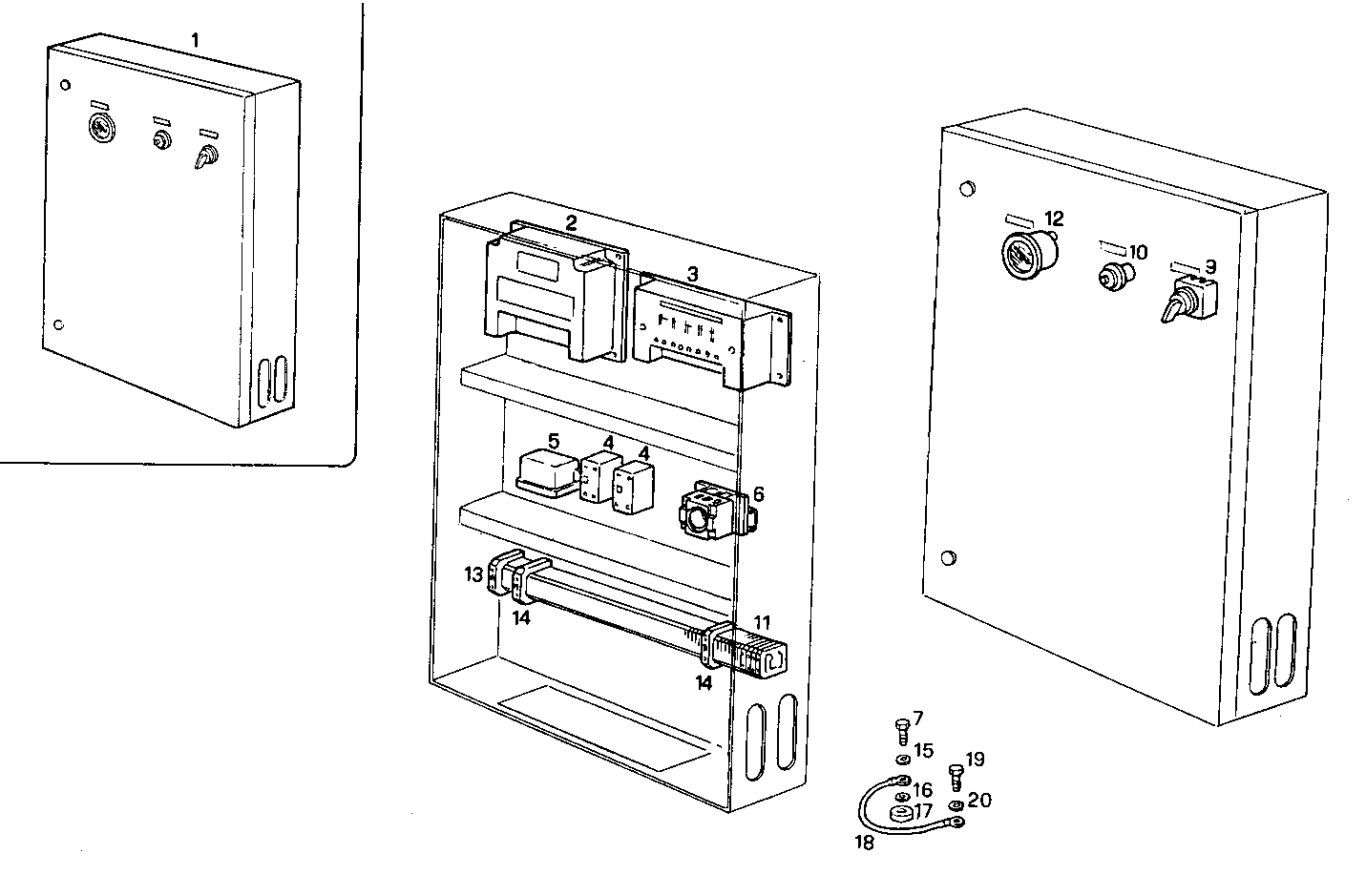

A60000936 MANUAL CONTROL BOARD

Iveco/FPT MANUAL CONTROL BOARD

Item Part number Description
1 8005796 CONTROL BOARD ASSY
2 8104795 SPEED CONTROL
3 8104389 SWITCHGEAR
4 8100689 RELAY SIEMENS
5 8108575 RELAY STARTER [up to 12-90]
6 8102662 RELAY SPRECHER
7 16605924 SCREW M8X40 MM
8 8100693 CHOCK
9 8110377 SWITCH
10 8110378 POTENTIOMETER
11 8112773 CLAMP EDM 4
12 8102399 HOURMETER
13 8104648 CLAMP EDM 6
14 8104849 CLAMP EDM 10
15 17094914 WASHER 8x16
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 17016214 SPACING BAR
18 8110852 EARTH WIRE
19 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
20 17090174 SPRING WASHER Ø10X20 MM
