GE8291SRG75.10A80S

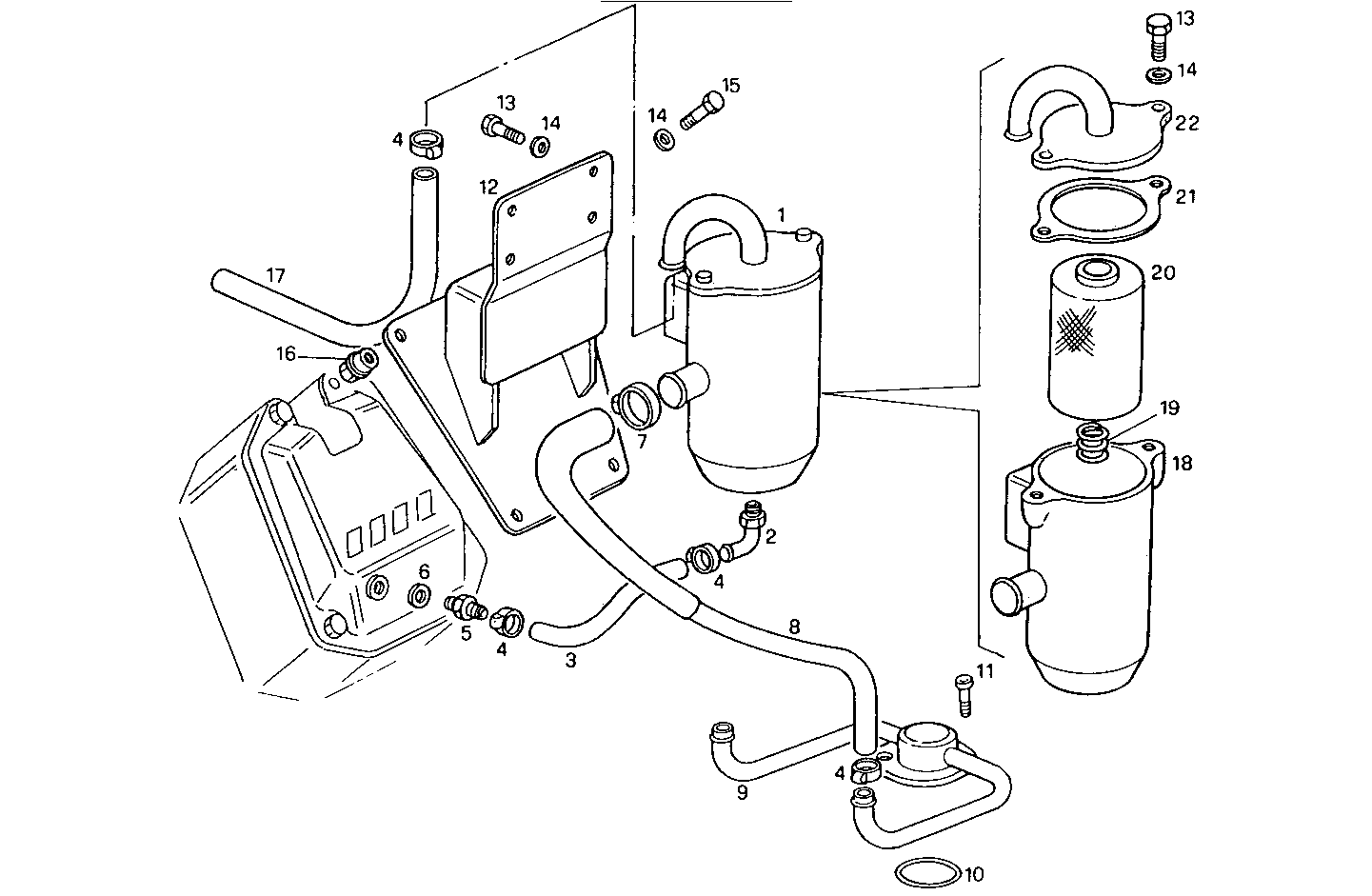

0450.128 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 8028086 BREATHER
2 8111261 PIPE SOCKET Ø1/8'' MM
3 8021856 HOSE L=450 MM
4 17764691 CLIP Ø25/40 MM
5 16500011 PIPE SOCKET
6 16550760 GASKET Ø10X13,5 MM SP=1
7 17764891 CLIP Ø40/60 MM
8 8027192 HOSE
9 8027984 BREATHER PIPE
10 17283581 O-RING Ø44,12 MM SP=2,62 MM
11 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
12 8027967 SUPPORT
13 16605524 HEXAGON BOLT M8X20 MM
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 16605424 SCREW M8X16 MM (8.8)
16 8026366 PIPE SOCKET
17 8028037 HOSE
18 8027983 BREATHER
19 4965120 SPRING
20 4788504 FUEL FILTER ELEM.
21 8023819 GASKET
22 8025345 COVER
