GE8291SRG75.10A80S

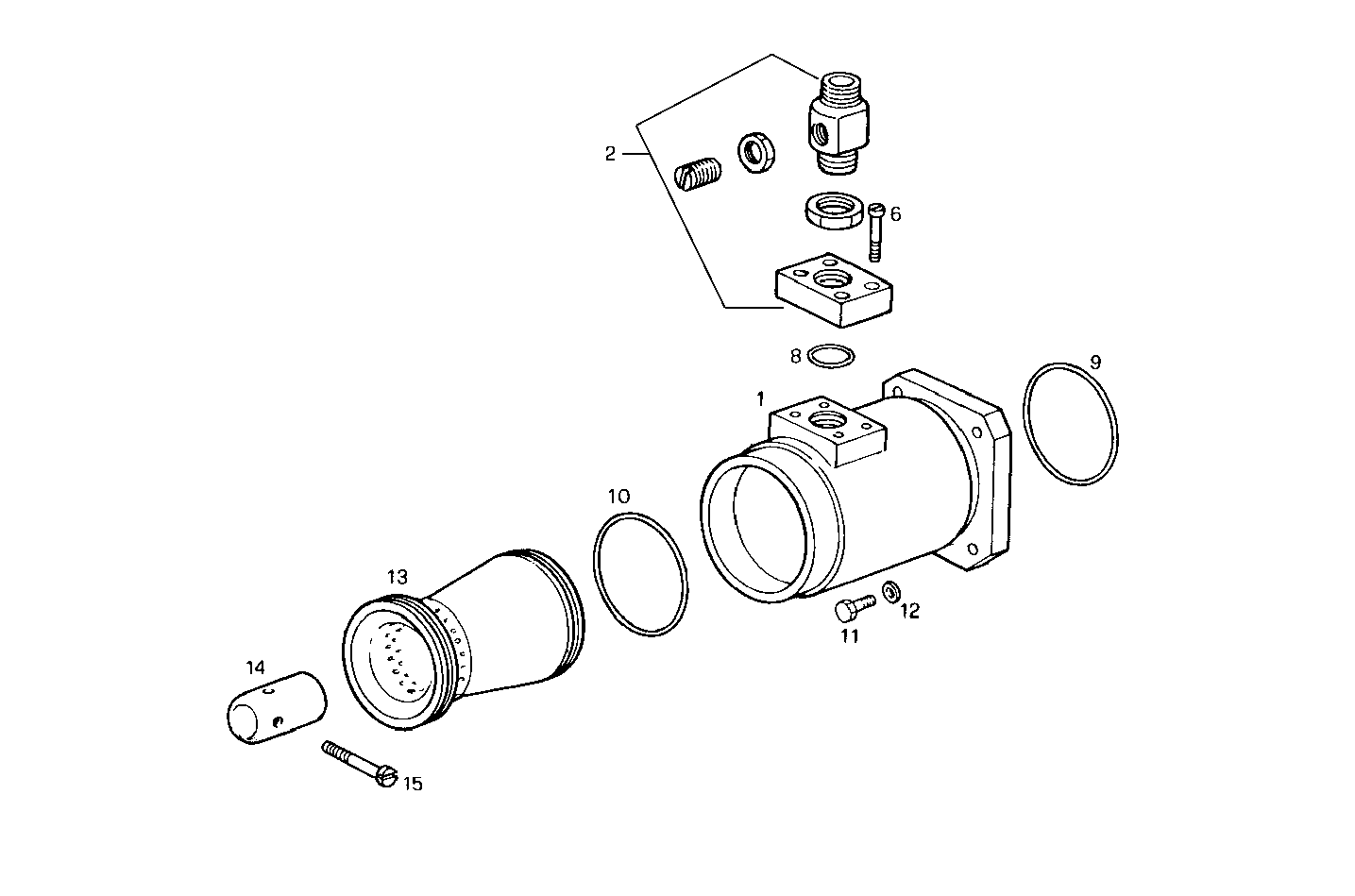

1600.009 POWERING
| Item | Part number | Description |
|---|---|---|
| 1 | 8023353 | VENTURI HOUSING |
| 2 | 8023358 | HAND M.A.S. ASSY |
| 6 | 16689224 | SOCKET-HEAD SCREW M6X20 MM |
| 8 | 17280181 | O-RING Ø53,70X1,78 MM |
| 9 | 17292181 | O-RING Ø123,42X3,53 MM |
| 10 | 17286081 | O-RING Ø113,97X2,62 MM |
| 11 | 16605734 | HEXAGON BOLT M8X30 MM |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 8023274 | VENTURI |
| 14 | 8026773 | CONE |
| 15 | 17131370 | SCREW |
