GE8291SRG75.10A80S

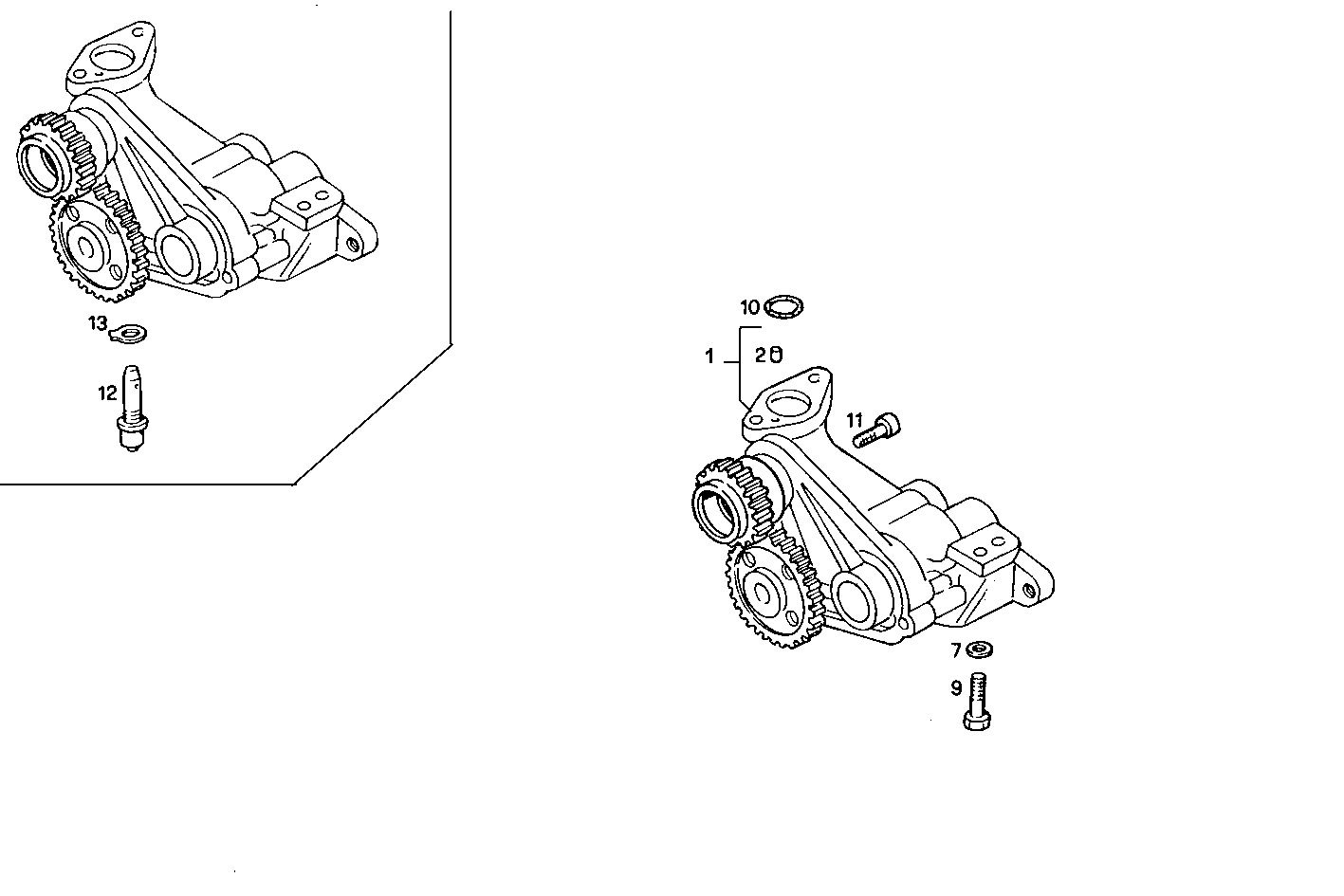

3000.019 OIL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8027389 | LUBE OIL PUMP ASSY |
| 2 | 10839510 | DOWEL PIN |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 15971621 | HEXAGON BOLT M10X1,25X90 MM |
| 10 | 17283081 | O-RING Ø36,17X2,62 MM |
| 11 | 16690824 | CYLIND-HEAD SCREW M8X35 MM |
| 12 | 500310084 | VALVE |
| 13 | 4861028 | CIRCLIP |
