GE8291SRG75.10A80S

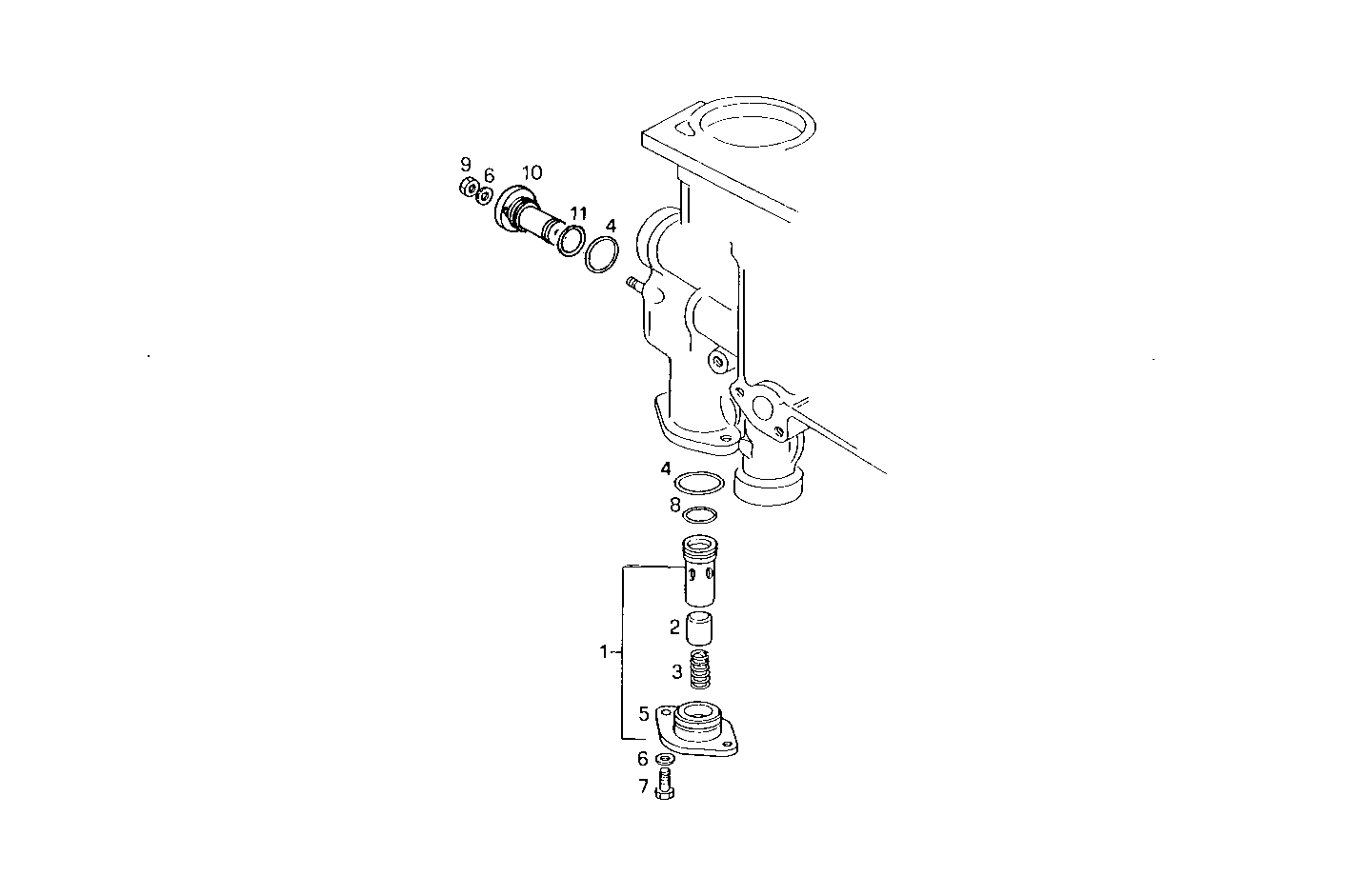

3030.026 OIL PRESSURE VALVE
Item | Part number | Description |
---|---|---|
1 | 4863143 | VALVE ASSY |
2 | 4861344 | VALVE |
3 | 4861261 | SPRING |
4 | 17283681 | O-RING Ø45,6 MM SP=2,62 MM |
5 | 4785405 | COVER |
6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
7 | 16605524 | HEXAGON BOLT M8X20 MM |
8 | 17282781 | O-RING Ø31,42 MM SP=2,62 MM |
9 | 17037931 | HEXAGON NUT M8X1,25 |
10 | 8020315 | PLUG |
11 | 17282881 | O-RING 2,62x32,99 |
