GE8291SRG75.10A80S

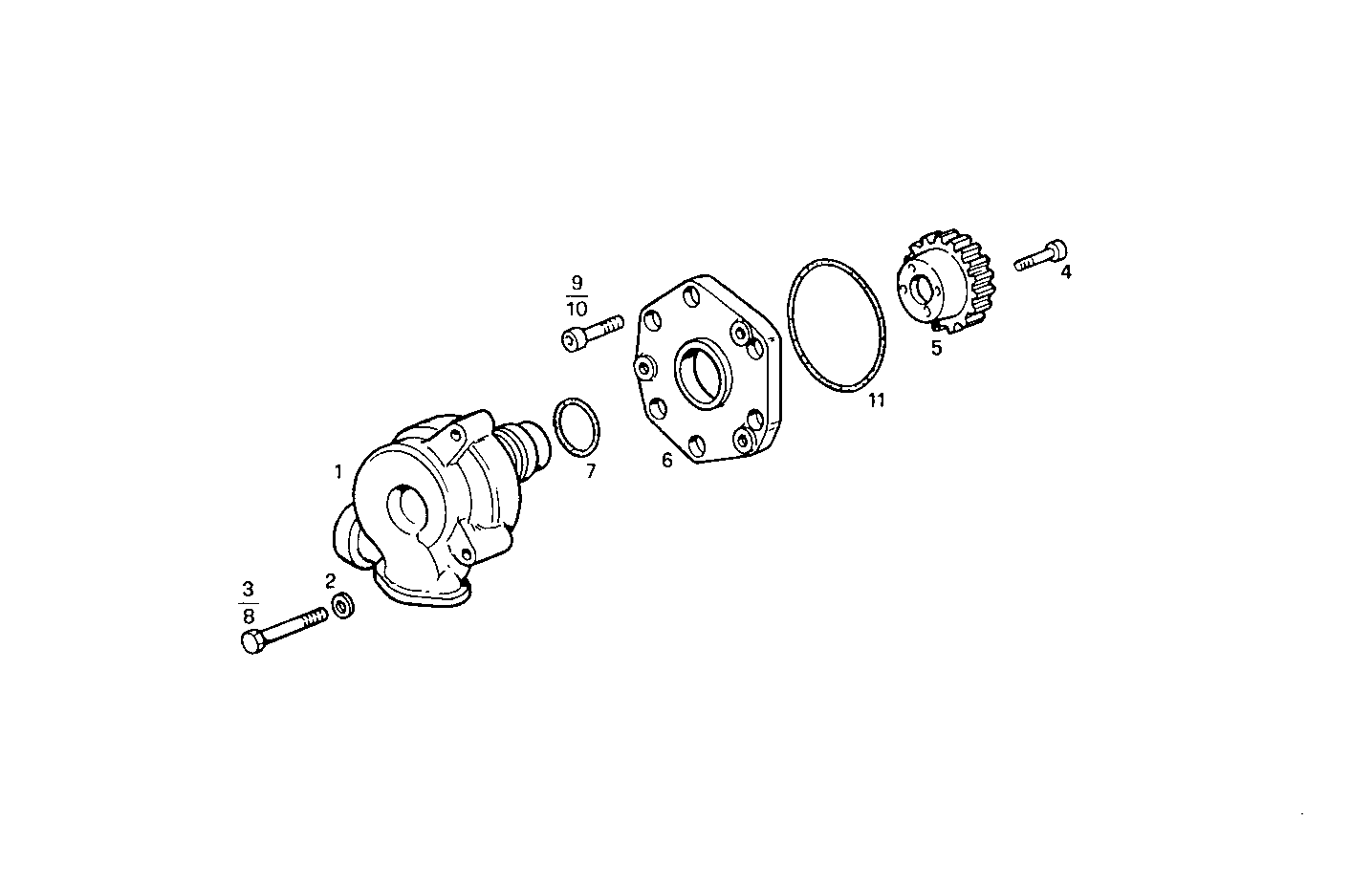

3320.007 AUXILIARY WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8013515 | WATER PUMP SECONDARY |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 16608824 | HEXAGON BOLT M10X100 MM |
| 4 | 17455234 | HEXAGON BOLT M8X30 MM |
| 5 | 8012811 | GEAR |
| 6 | 8012747 | FLANGE |
| 7 | 17284581 | O-RING Ø59,99 x 2,62 MM |
| 8 | 16608924 | HEXAGON BOLT M10X110 MM |
| 9 | 16692924 | SCREW M10X65 |
| 10 | 16692124 | CYLIND-HEAD SCREW M10X25 MM (8.8) |
| 11 | 17293081 | O-RING Ø152,00X3,53 MM |
