GE8291SRG75.10A80S

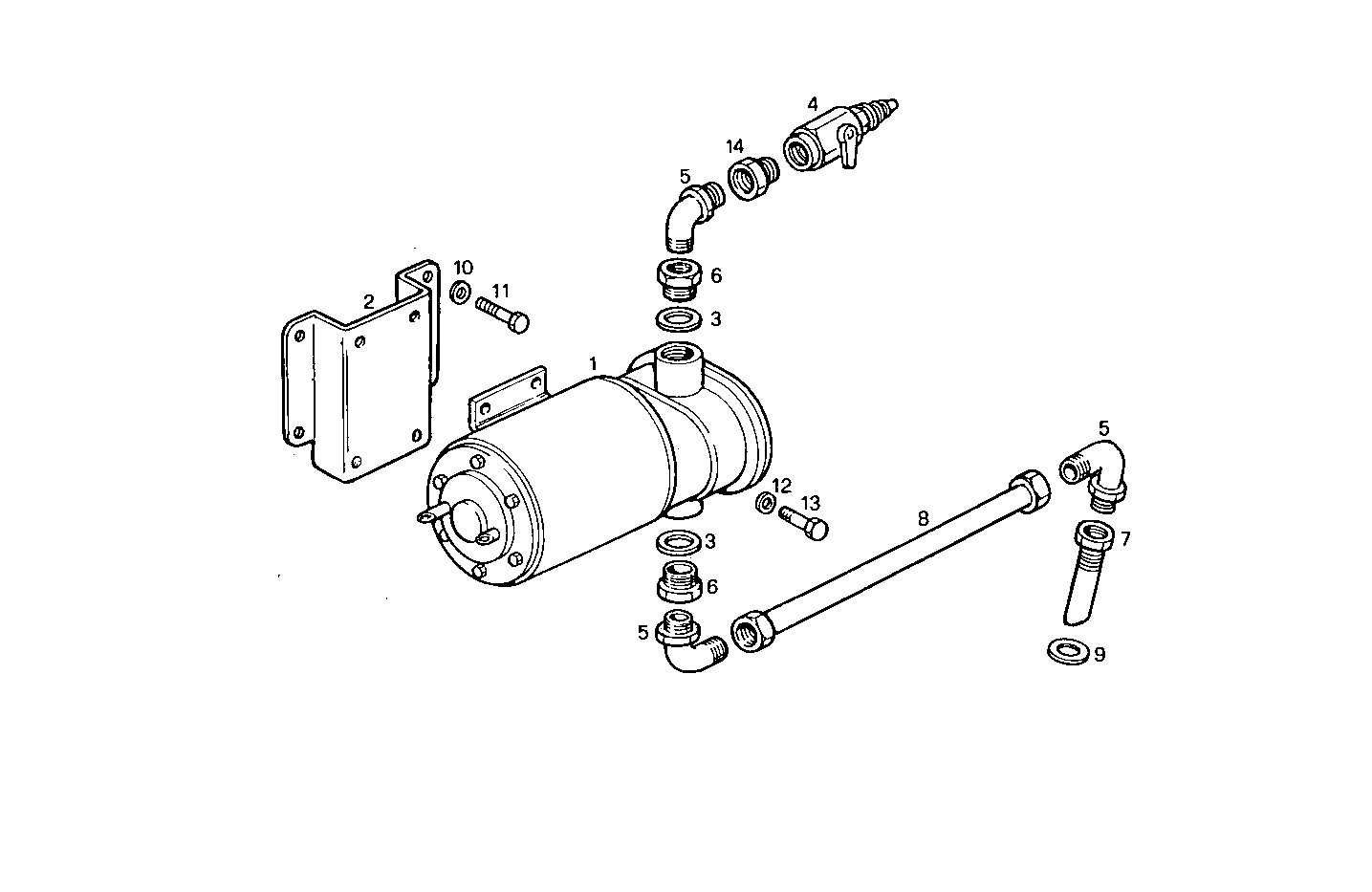

5510.024 OIL OUTLET PUMP
Item | Part number | Description |
---|---|---|
1 | 8011001 | OIL DRAIN ELECTRIC PUMP |
2 | 8018171 | SUPPORT |
3 | 11270460 | GASKET Ø17X21X1,5 MM |
4 | 8113932 | DRAIN COCK |
5 | 16512111 | PIPE SOCKET |
6 | 8011422 | PIPE SOCKET Ø3/8''/M22 MM |
7 | 8016101 | OIL LINE |
8 | 8018194 | OIL LINE |
9 | 11271460 | GASKET Ø21X26X1,5 MM |
10 | 17090174 | SPRING WASHER Ø10X20 MM |
11 | 15970521 | HEXAGON BOLT M10X20 MM |
12 | 17088474 | WASHER Ø6X12 MM |
13 | 16603524 | SCREW M6X12 MM (8.8) |
14 | 8016102 | PIPE SOCKET |
