GE8291SRG75.10A80S

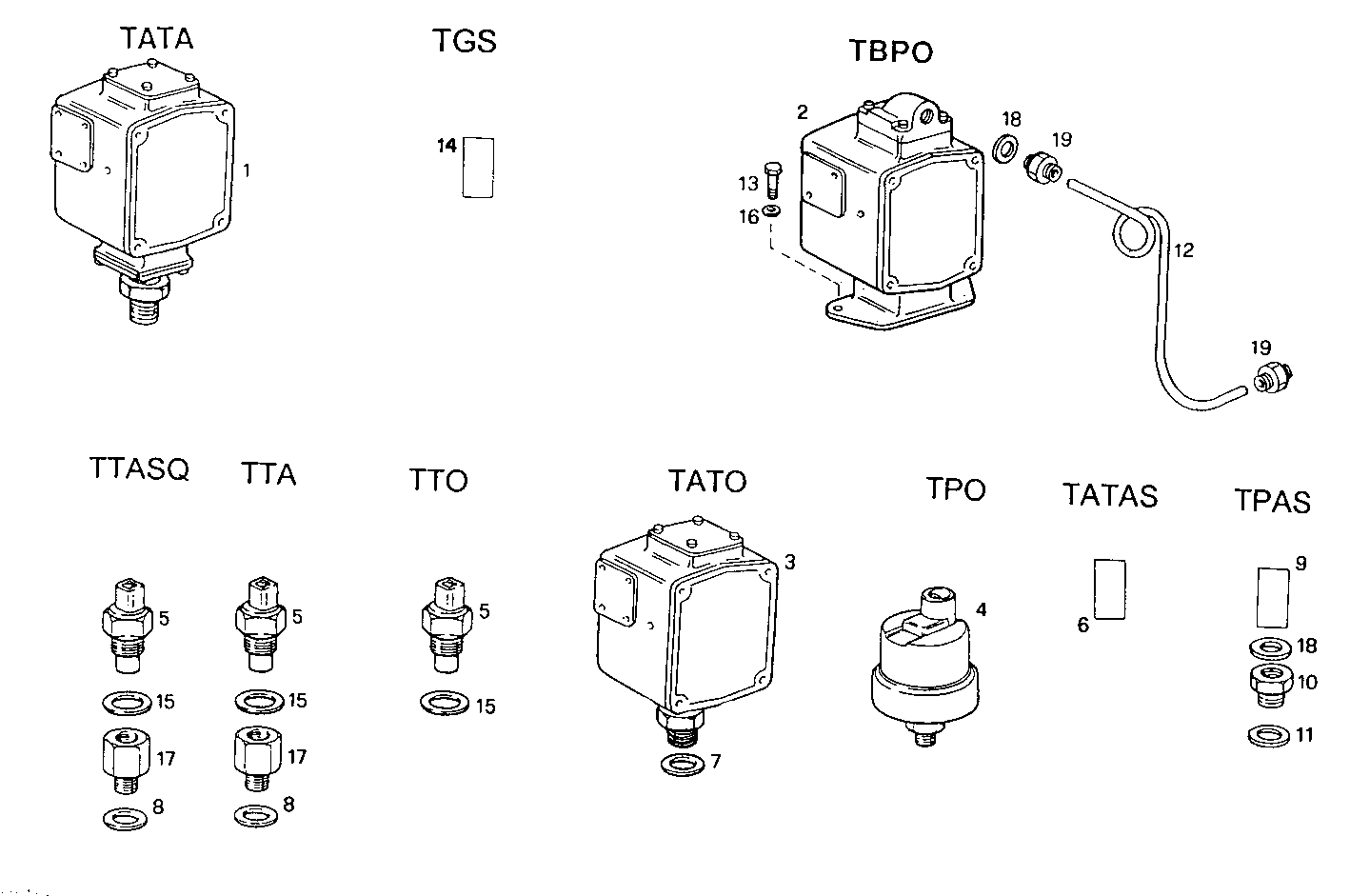

A38550076 SENDER UNITS FOR INSTRUMENTS - two poles system - 12/24V - VEGLIA

Iveco/FPT SENDER UNITS FOR INSTRUMENTS

Item Part number Description
1 8110742 TRANSMITTER
2 8110741 TRANSMITTER TBPO
3 8111450 TRANSMITTER TATO
4 8100563 TRANSMITTER TPO
5 4933019 TRANSMITTER TTA - TTO
6 8023756 TRANSMITTER
7 11271460 GASKET Ø21X26X1,5 MM
8 10263460 WASHER Ø22X28X1,5 MM
9 8024371 TRANSMITTER
10 4881606 PIPE SOCKET
11 4858610 WASHER Ø18X24 MM SP=1,5 MM
12 8024896 HOSE
13 16603524 SCREW M6X12 MM (8.8)
14 8022117 TRANSMITTER
15 4858609 WASHER Ø16X22 MM SP=1,5 MM
16 17088474 WASHER Ø6X12 MM
17 4919578 PIPE SOCKET M22X1,5/M16X1,5
18 4858606 GASKET Ø10X14X1 MM
19 16500011 PIPE SOCKET
