GE8291SRG75.10A85S

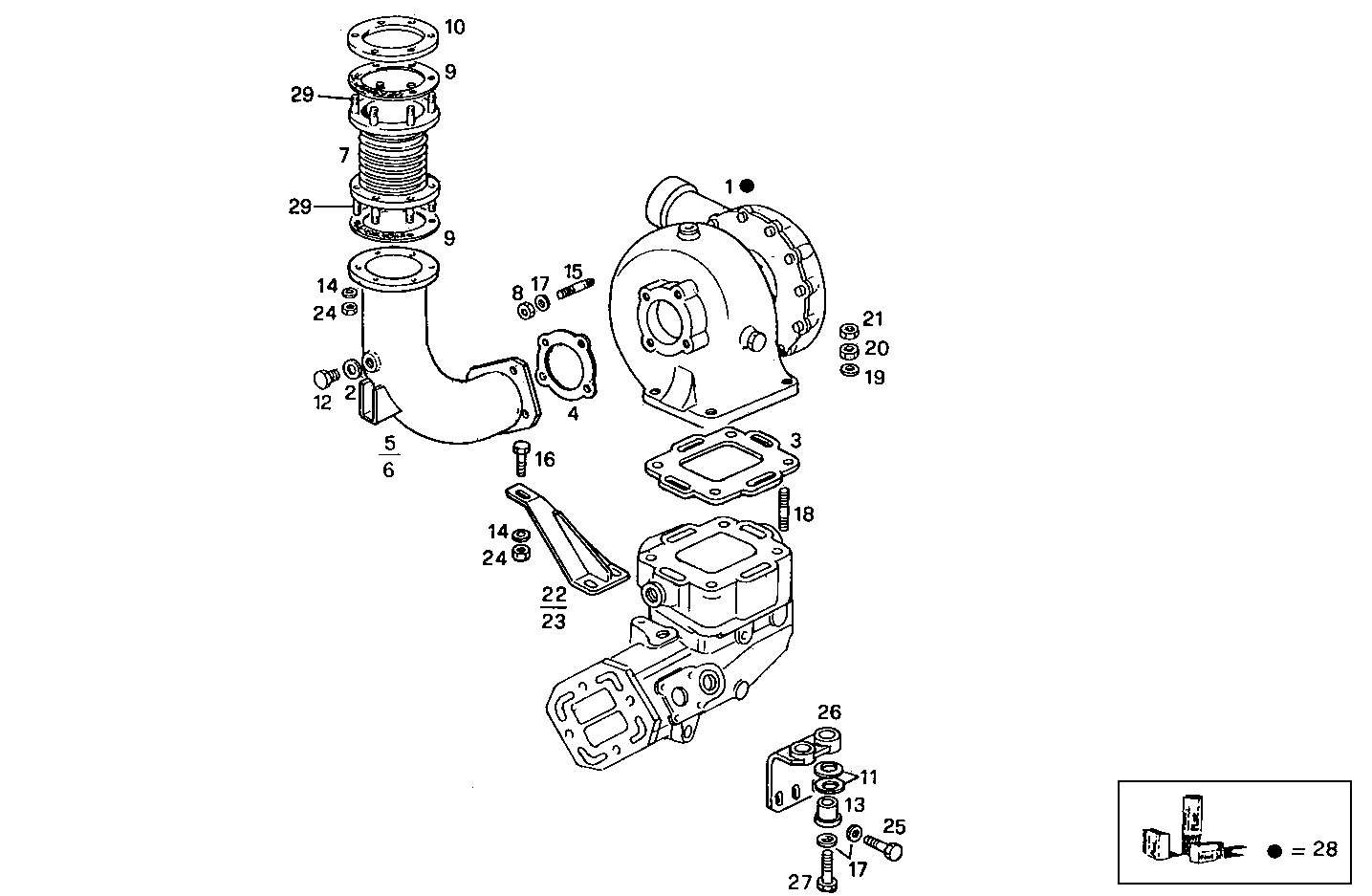

2400.125 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 8110129 WATER COOL.TURBOCHARGER ASSY HOLSET
2 4858607 WASHER Ø12X17 MM SP=1,5 MM
3 8027510 FLAT ENGINE GASKET
4 8111833 GASKET
5 8021690 EXHAUST ELBOW LEFT
6 8021691 EXHAUST ELBOW RIGHT
7 8101671 EXHAUST BELLOWS
8 17037931 HEXAGON NUT M8X1,25
9 8009600 GASKET
10 8103591 FLANGE
11 8110051 SPRING
12 16992211 THREADED PLUG M12X1,5
13 8110050 BUSH
14 17090174 SPRING WASHER Ø10X20 MM
15 16729424 STUD M8X1,25X25
16 16607624 SCREW M10X25
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 13449730 STUD M10X15X30 MM
19 16665614 WASHER Ø10,5 MM
20 17038121 HEXAGON NUT M10
21 16979631 HEXAGON NUT M10
22 8021887 RETAINER LEFT
23 8021888 RETAINER RIGHT
24 17038221 HEXAGON NUT M10
25 16605524 HEXAGON BOLT M8X20 MM
26 8009553 RETAINER
27 16605824 HEXAGON BOLT M8X35 MM
28 8090770 KIT-TURBOCHARGER
29 13449524 STUD M10X1,25X15X25
