GE8291SRG75.10A85S

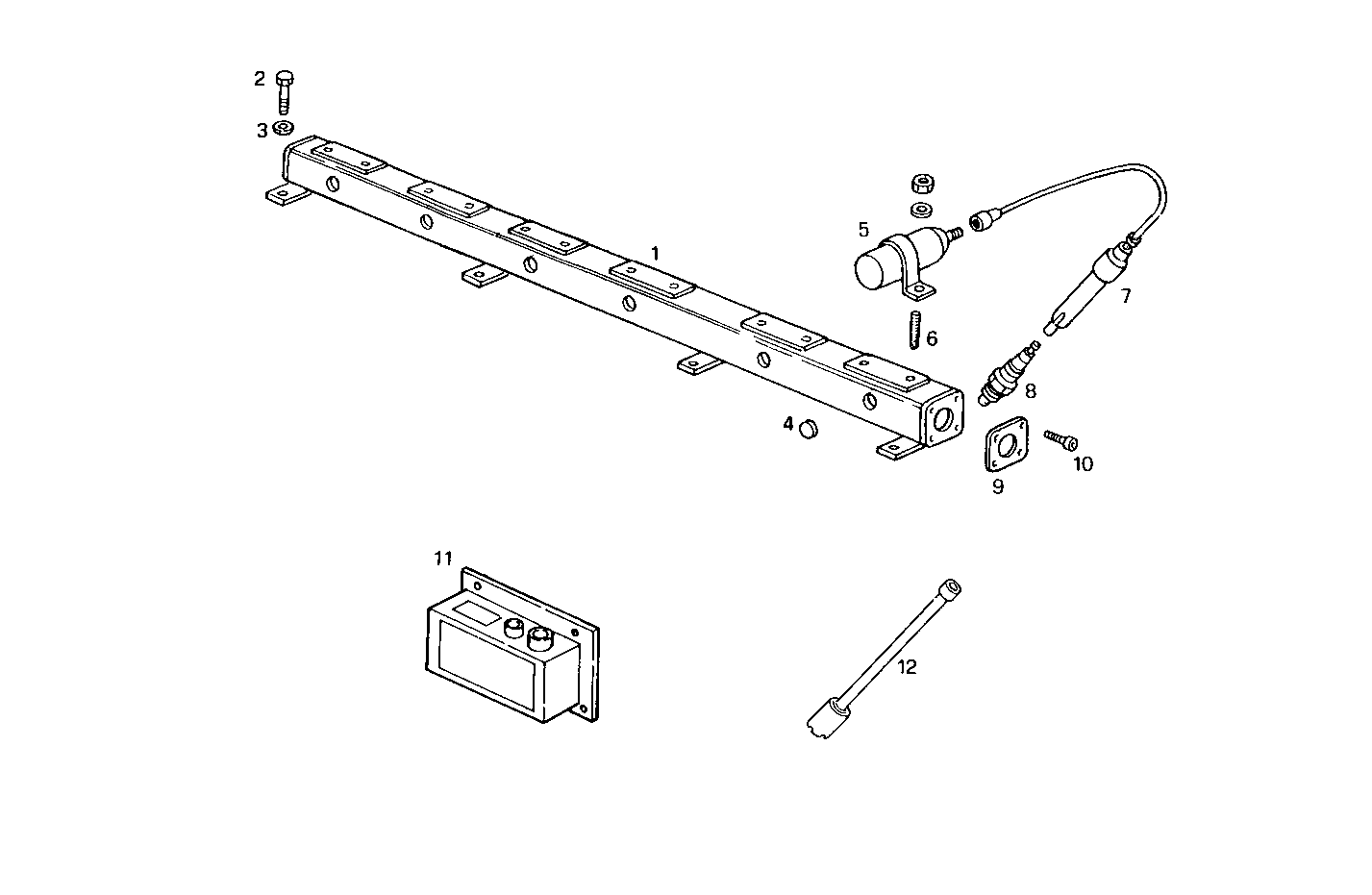

2800.008 IGNITION CONTROL - SPARK PLUGS
| Item | Part number | Description |
|---|---|---|
| 1 | 8023540 | SUPPORT |
| 2 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 17913580 | PLUG |
| 5 | 8018778 | IGNITION COIL |
| 6 | 16726424 | STUD |
| 7 | 8019594 | SPARK PLUGS CABLE |
| 8 | 8017846 | GAS SPARK PLUG |
| 9 | 8023546 | FLANGE |
| 10 | 16687924 | SCREW |
| 11 | 8022475 | GAS ENG. EL.CONTROL UNIT |
| 12 | 8022378 | SPARK PLUGS WRENCH |
