GE8291SRG85.10A85S

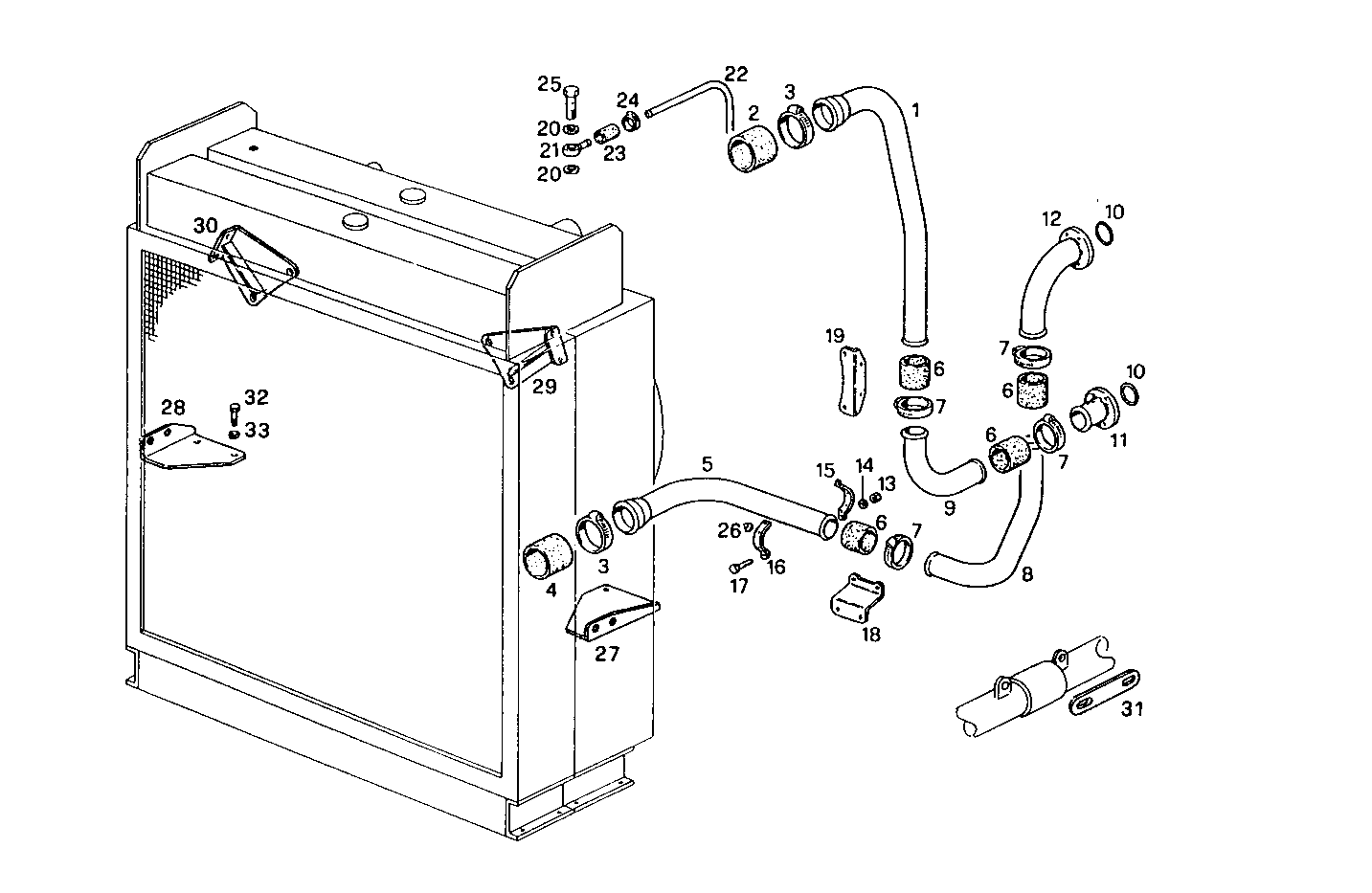

A22610001/02 RADIATOR 2 CIRCUITS AIR/WATER - loose

Iveco/FPT RADIATOR 2 CIRCUITS AIR/WATER

Item Part number Description
1 8019213 WATER PIPE
2 8019244 RUBBER SLEEVE
3 17765591 CLIP Ø110/130 MM
4 8019245 RUBBER SLEEVE
5 8019214 WATER PIPE
6 61319109 RUBBER SLEEVE
7 17765191 CLIP Ø70/90 MM
8 8019264 WATER PIPE
9 8019212 WATER PIPE
10 17290581 O-RING Ø72,63X3,53 MM
11 8018723 WATER PIPE
12 8019215 WATER PIPE
13 17038121 HEXAGON NUT M10
14 17090174 SPRING WASHER Ø10X20 MM
15 8013655 CLAMP
16 8013656 CLAMP
17 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
18 8019269 SUPPORT
19 8019268 SUPPORT
20 4858609 WASHER Ø16X22 MM SP=1,5 MM
21 98413896 PIPE SOCKET Ø8 MM
22 8017220 WATER HOSE
23 4927825 WATER HOSE
24 17764291 CLIP
25 60127770 SCREW CONNECTOR
26 1366290 RUBBER LUG
27 8021892 RETAINER
28 8021891 RETAINER
29 8021893 RETAINER
30 8021894 RETAINER
31 8021895 RETAINER
32 16609924 HEXAGON BOLT M12X30 MM (8.8)
33 17091374 SPRING WASHER Ø12X30X3,0 MM
