GE8361SRi25.00A52S

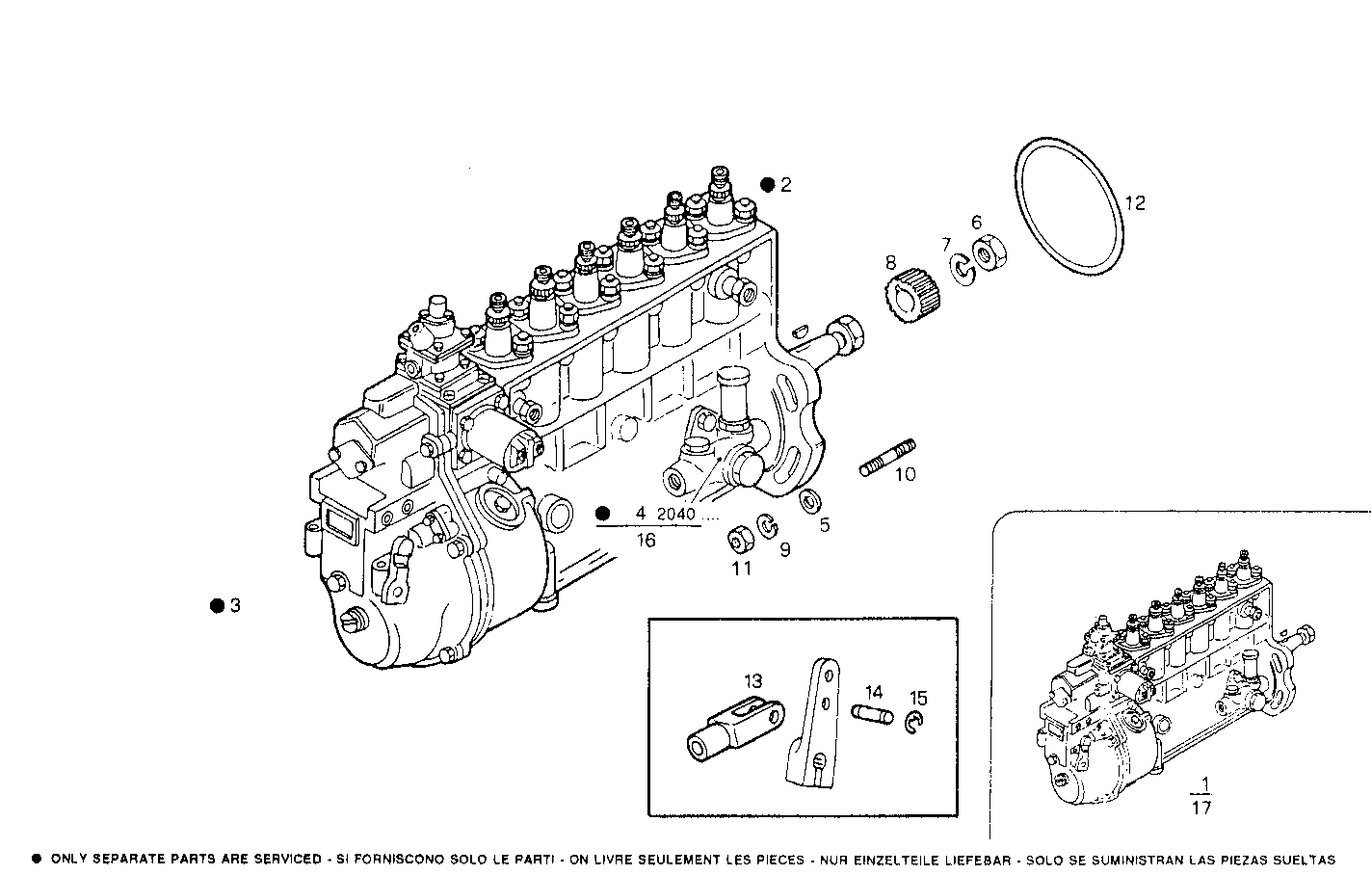

1400.041 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 4807509 | INLINE INJECT.PUMP W.ALTECNA |
4 | 772110 | FUEL PUMP ASSY WEBER ALTECNA |
5 | 759850 | WASHER Ø10X21X2 MM |
6 | 4750524 | NUT |
7 | 4750525 | WASHER |
8 | 4816287 | BUSH 156Ø40' |
9 | 17090274 | WASHER Ø10X20 MM |
10 | 13449824 | STUD M10X1,25X15 MM |
11 | 17038221 | HEXAGON NUT M10 |
12 | 17289281 | O-RING Ø34,5 MM SP=3,53 MM |
13 | 10001071 | CLEVIS |
14 | 10249110 | GUIDE BOLT Ø6 MM |
15 | 11087776 | CIRCLIP Ø5 MM |
16 | 1173764 | FUEL PUMP ASSY |
17 | 98453585 | INLINE INJECT.PUMP BOSCH |
