GE8361SRi25.00A52S

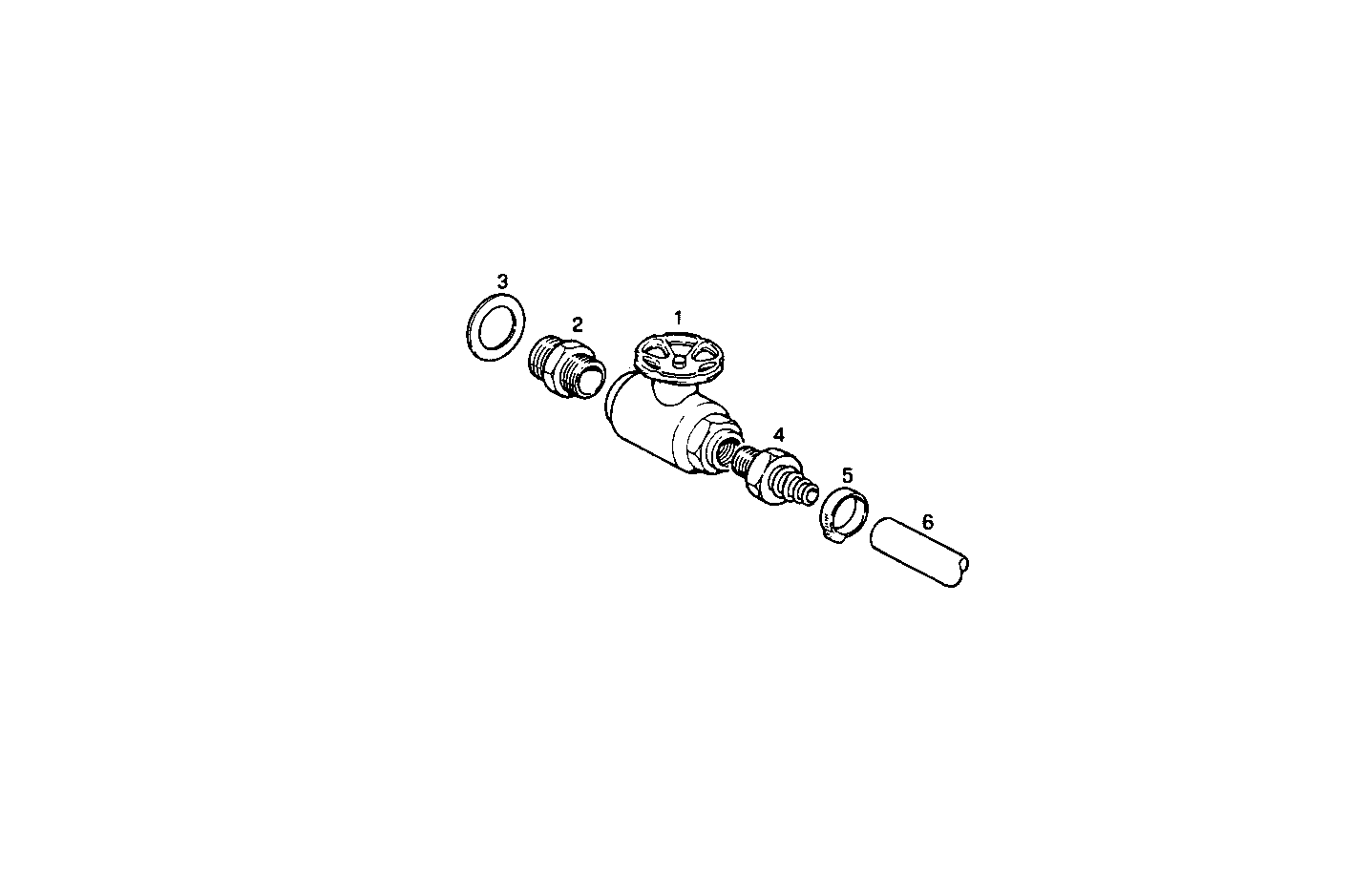

A49020900 DRAIN COCK
Item | Part number | Description |
---|---|---|
1 | 4930837 | RETAINER COCK |
2 | 8107752 | PIPE SOCKET |
3 | 10279560 | SEAL GASKET Ø22,2 MM |
4 | 4930839 | PIPE SOCKET |
5 | 17764592 | CLIP Ø20/32 MM |
6 | 4931236 | OIL HOSE Ø24X18 - L=680 MM |
