GE8361SRi25.00A52S
A60210009/02 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

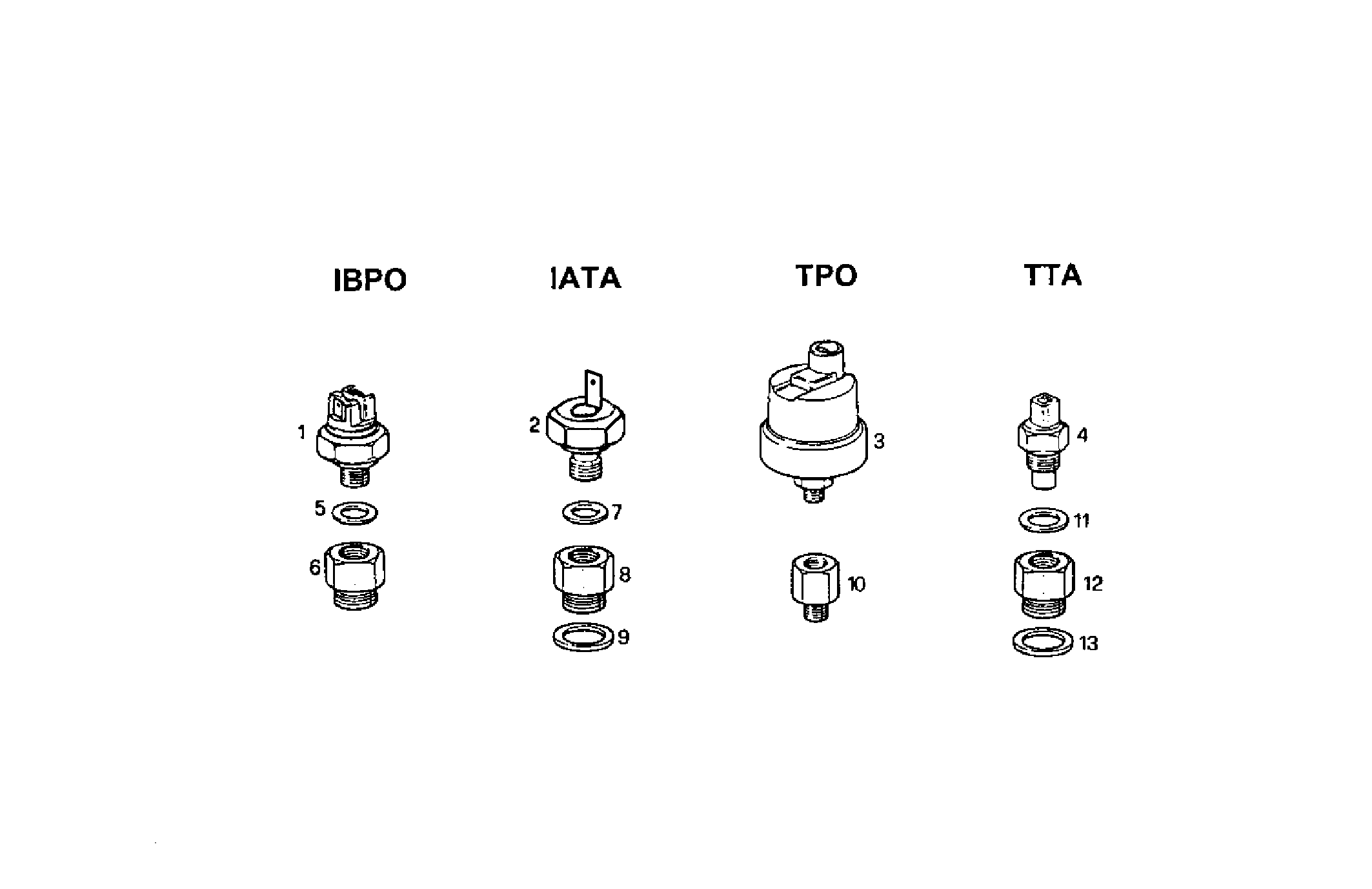

Item Part number Description
1 8114030 TRANSMITTER IBPO
2 8019581 TRANSMITTER IATA
3 8100563 TRANSMITTER TPO
4 4933019 TRANSMITTER TTA - TTO
5 4858607 WASHER Ø12X17 MM SP=1,5 MM
6 4928343 PIPE SOCKET
7 10282460 SEAL GASKET Ø14X20 MM
8 4931480 PIPE SOCKET
9 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
10 4929444 PIPE SOCKET
11 4858609 WASHER Ø16X22 MM SP=1,5 MM
12 4919578 PIPE SOCKET M22X1,5/M16X1,5
13 10263460 WASHER Ø22X28X1,5 MM
