GE8361SRi25.00A70E

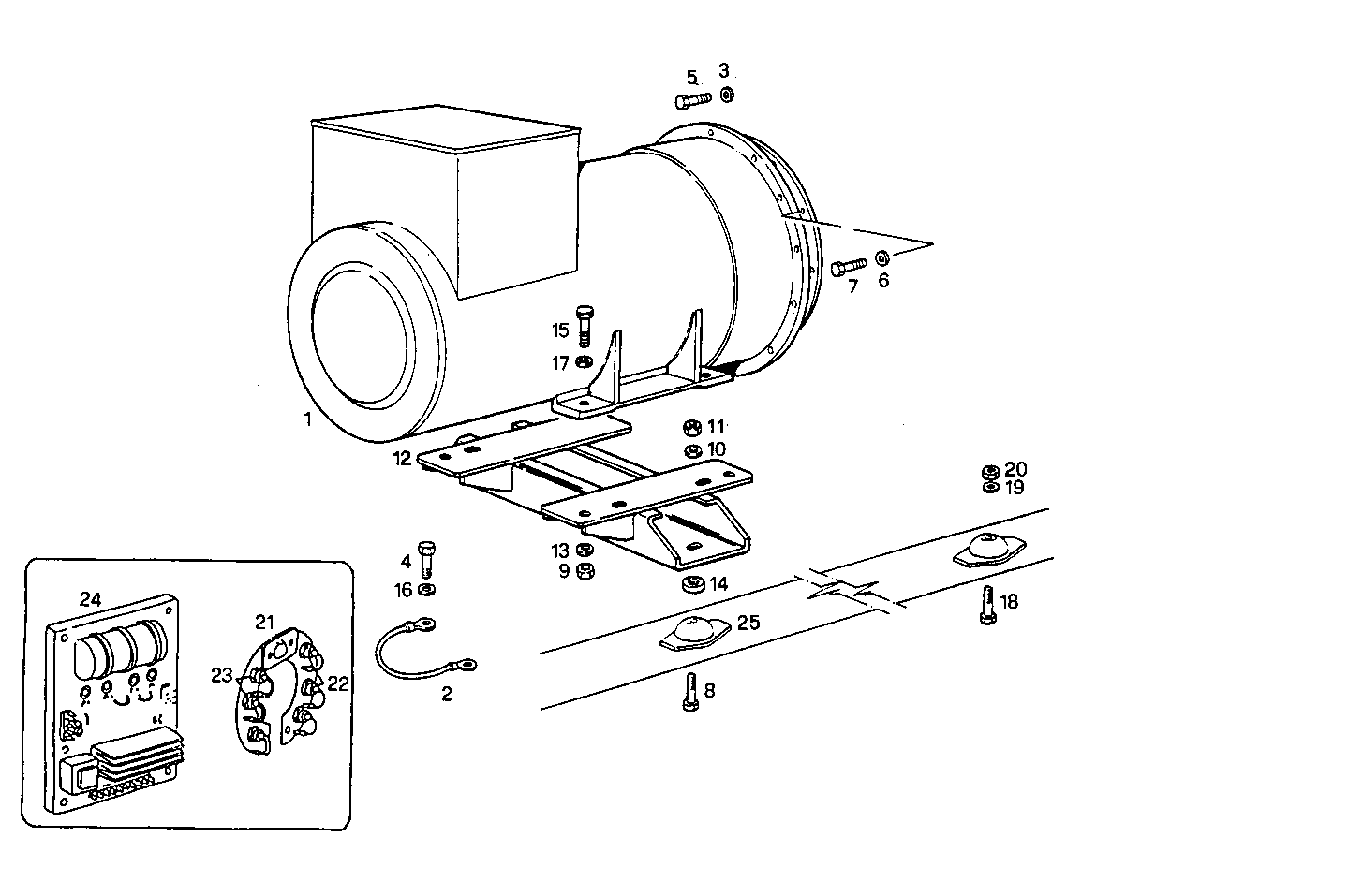

A37210030 SINGLE BEARING ELECTRIC MACHINE - MARELLI [D 03-1991] [from03-1991]

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8009785 ELECTRIC MACHINE M7B 250 MA/4 50HZ
2 8104707 WIRE/CABLE
3 11198371 SPRING WASHER Ø10X20 MM
4 16043321 HEXAGON BOLT M8X18 MM
5 11306921 SCREW M10X1,25X30
6 10516871 SPRING WASHER Ø10,5 MM
7 15004021 HEXAGON BOLT M10X1,25X25 MM
8 15988921 HEXAGON BOLT M20X1,5X90 MM
9 12164111 HEXAGON NUT M16X1,5
10 11191771 WASHER
11 12164311 HEXAGON NUT M20X1,5
12 8100182 SUPPORT
13 11200271 WASHER Ø16X34X4,4 MM
14 8108957 SPACING BAR
15 15981121 HEXAGON BOLT M16X60 MM
16 11193871 WASHER Ø8X16X1,4 MM
17 4929369 WASHER
18 11227021 HEXAGON BOLT M14X1,5X65 MM
19 11200171 SPRING WASHER Ø15 MM
20 12164011 HEXAGON NUT M14X1,5 [up to…]
21 8106491 SUPPRESSOR
22 8106486 EL.MACHINE DIODE MARELLI - REVERSE
23 8106485 EL.MACHINE DIODE MARELLI - FORWARD
24 8091776 EL.MACHINE VOLTAGE REGUL. MECC-ALTE
25 4955094 RUBBER PAD
