GE8361SRi25.00A70L

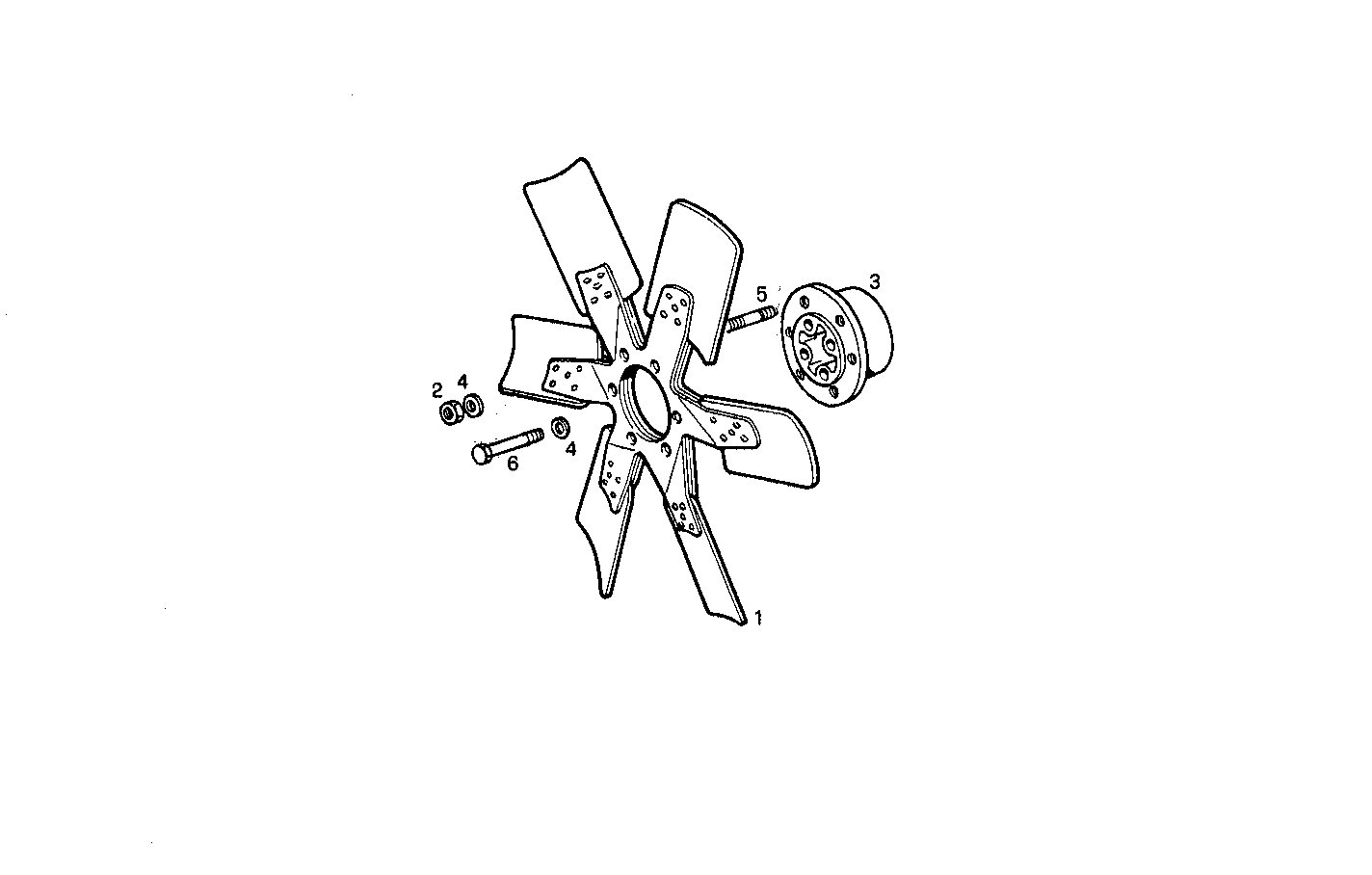

3230.001 FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 79003152 | FAN Ø562 MM |
| 2 | 17038221 | HEXAGON NUT M10 |
| 3 | 8104535 | HUB |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 13546321 | STUD M10X25 MM |
| 6 | 15972121 | SCREW M10X1,25X115 |
