GE8361SRi25.00A70L

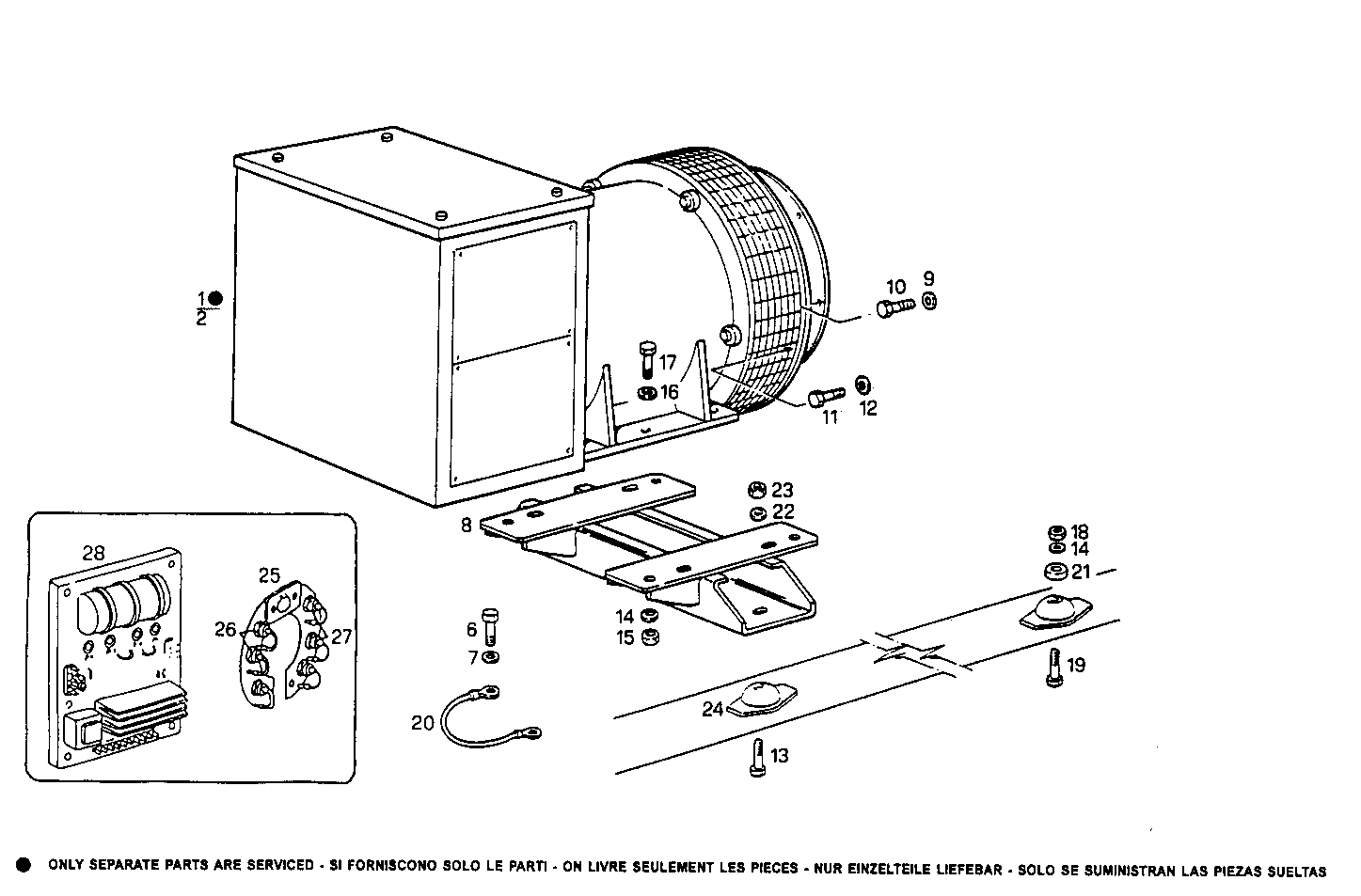

A37110019 SINGLE BEARING ELECTRIC MACHINE - LEROY

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8110720 ELECTRIC MACHINE LSA 46 M2 150-170KVA 50-60HZ [up to 07-92]
2 8007352 ELECTRIC MACHINE LSA 46 M2S 150-170KVA 50-60HZ [from 07-92]
6 16043321 HEXAGON BOLT M8X18 MM
7 11193871 WASHER Ø8X16X1,4 MM
8 8100182 SUPPORT
9 10516871 SPRING WASHER Ø10,5 MM
10 15004021 HEXAGON BOLT M10X1,25X25 MM
11 11307021 HEXAGON BOLT M10X40 MM
12 11198371 SPRING WASHER Ø10X20 MM
13 15988521 HEXAGON BOLT M20
14 11200271 WASHER Ø16X34X4,4 MM
15 12164111 HEXAGON NUT M16X1,5
16 4929369 WASHER
17 15981121 HEXAGON BOLT M16X60 MM
18 12164011 HEXAGON NUT M14X1,5 [up to…]
19 15977721 SCREW M14X1,5X75
20 8104707 WIRE/CABLE
21 8109912 SPACING BAR 10MM
22 11191771 WASHER
23 12164311 HEXAGON NUT M20X1,5
24 4955094 RUBBER PAD
25 8091778 SUPPRESSOR
26 8090762 EL.MACHINE DIODE -
27 8090761 EL.MACHINE DIODE +
28 8090755 EL.MACHINE VOLTAGE REGUL.
