GE8361SRi25.06A955
A28010046/02 ELECTRONIC GOVERNOR WOODWARD - 24V

Iveco/FPT ELECTRONIC GOVERNOR WOODWARD

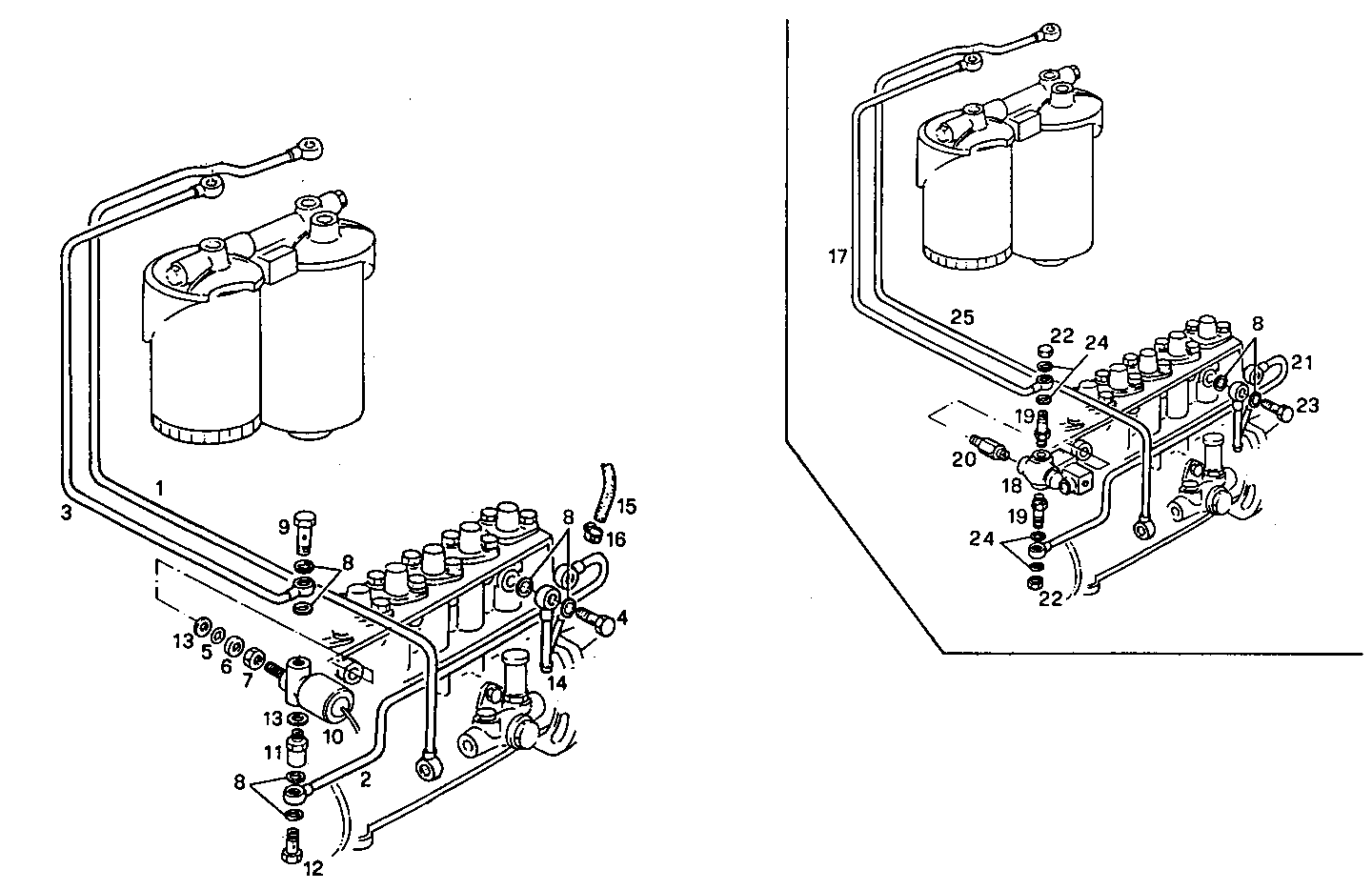

Item Part number Description
1 8016444 FUEL LINE [from 07-94]
2 8018344 FUEL LINE [from 07-94]
3 8018345 FUEL LINE [from 07-94]
4 61608319 SCREW CONNECTOR
5 17281581 O-RING Ø12,37X2,62 MM
6 8006339 CAP
7 16508711 NUT M14X1,5 [from 05-92]
8 98474308 SEAL GASKET Ø14X22 MM
9 8020609 SCREW CONNECTOR [from 04-94]
10 8017500 ELECTROVALVE [from 04-94]
11 8102465 VALVE
13 4858608 SEAL GASKET dia.14x19,5x1,5
14 8012659 FUEL LINE
15 4934253 RUBBER SLEEVE L=500 MM
16 17764491 CLIP Ø16/25 MM
17 8012382 FUEL LINE [up to 07-94]
18 8108944 ELECTROVALVE
19 4929627 PIPE SOCKET
20 4929626 PIPE SOCKET
21 8012628 FUEL LINE
22 10182817 LOCK PLUG
23 61320123 SCREW CONNECTOR
24 10280060 WASHER Ø14X20 MM SP=1,5 MM
25 8012381 INJECTION LINE [up to 07-94]
