GE8361SRi26.00A50L

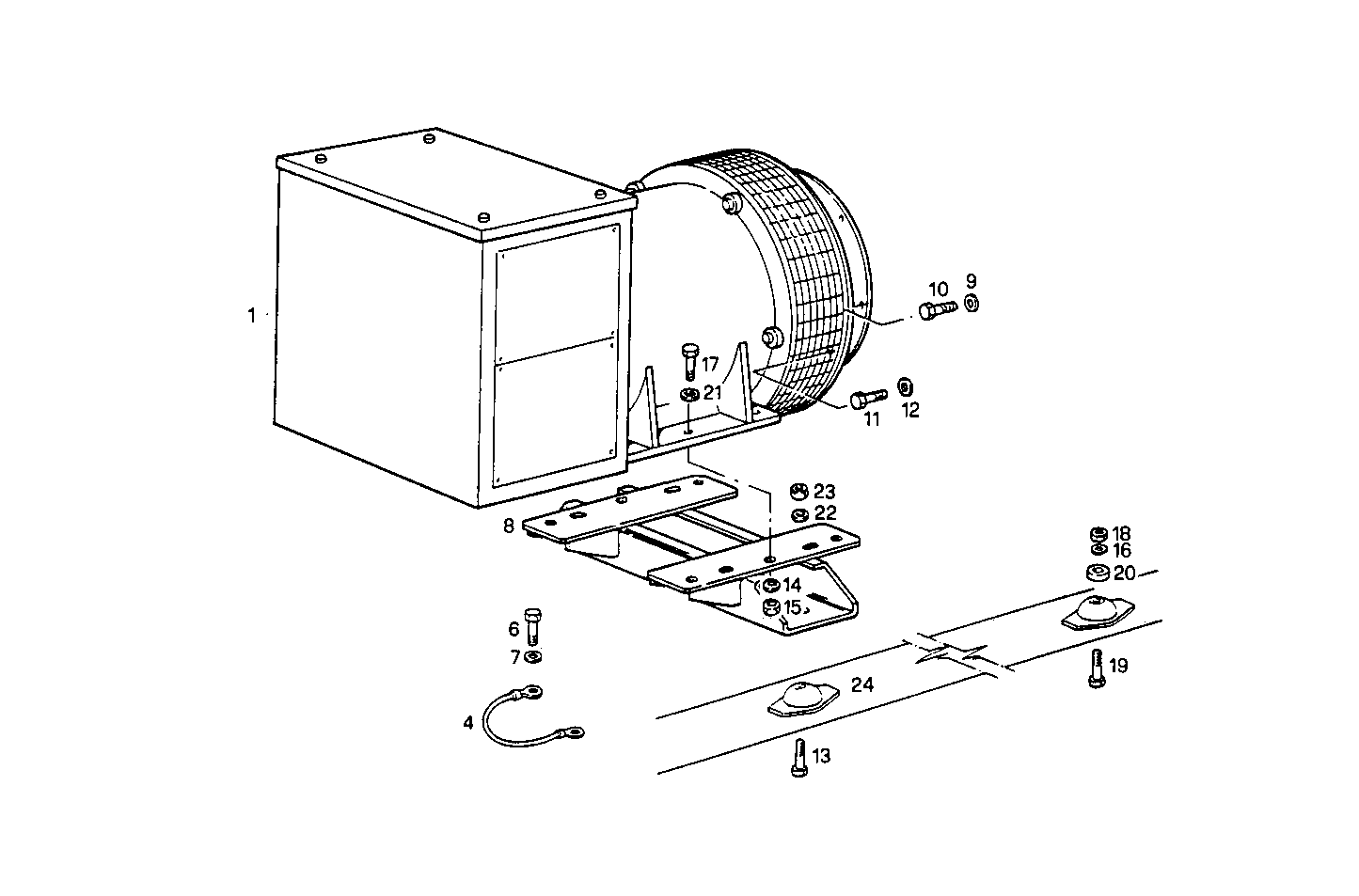

A37110009 SINGLE BEARING ELECTRIC MACHINE - LEROY
Item | Part number | Description |
---|---|---|
1 | 8007353 | ELECTRIC MACHINE LSA 46 M5S 50-60HZ |
4 | 8104707 | WIRE/CABLE |
6 | 16043321 | HEXAGON BOLT M8X18 MM |
7 | 11193871 | WASHER Ø8X16X1,4 MM |
8 | 8100182 | SUPPORT |
9 | 10516871 | SPRING WASHER Ø10,5 MM |
10 | 15970731 | SCREW |
11 | 11307021 | HEXAGON BOLT M10X40 MM |
12 | 11198371 | SPRING WASHER Ø10X20 MM |
13 | 15988521 | HEXAGON BOLT M20 |
14 | 11200271 | WASHER Ø16X34X4,4 MM |
15 | 12164111 | HEXAGON NUT M16X1,5 |
16 | 11200171 | SPRING WASHER Ø15 MM |
17 | 15981121 | HEXAGON BOLT M16X60 MM |
18 | 12164011 | HEXAGON NUT M14X1,5 [up to…] |
19 | 15977721 | SCREW M14X1,5X75 |
20 | 8109912 | SPACING BAR 10MM |
21 | 4929369 | WASHER |
22 | 11191771 | WASHER |
23 | 12164311 | HEXAGON NUT M20X1,5 |
24 | 4955094 | RUBBER PAD |
