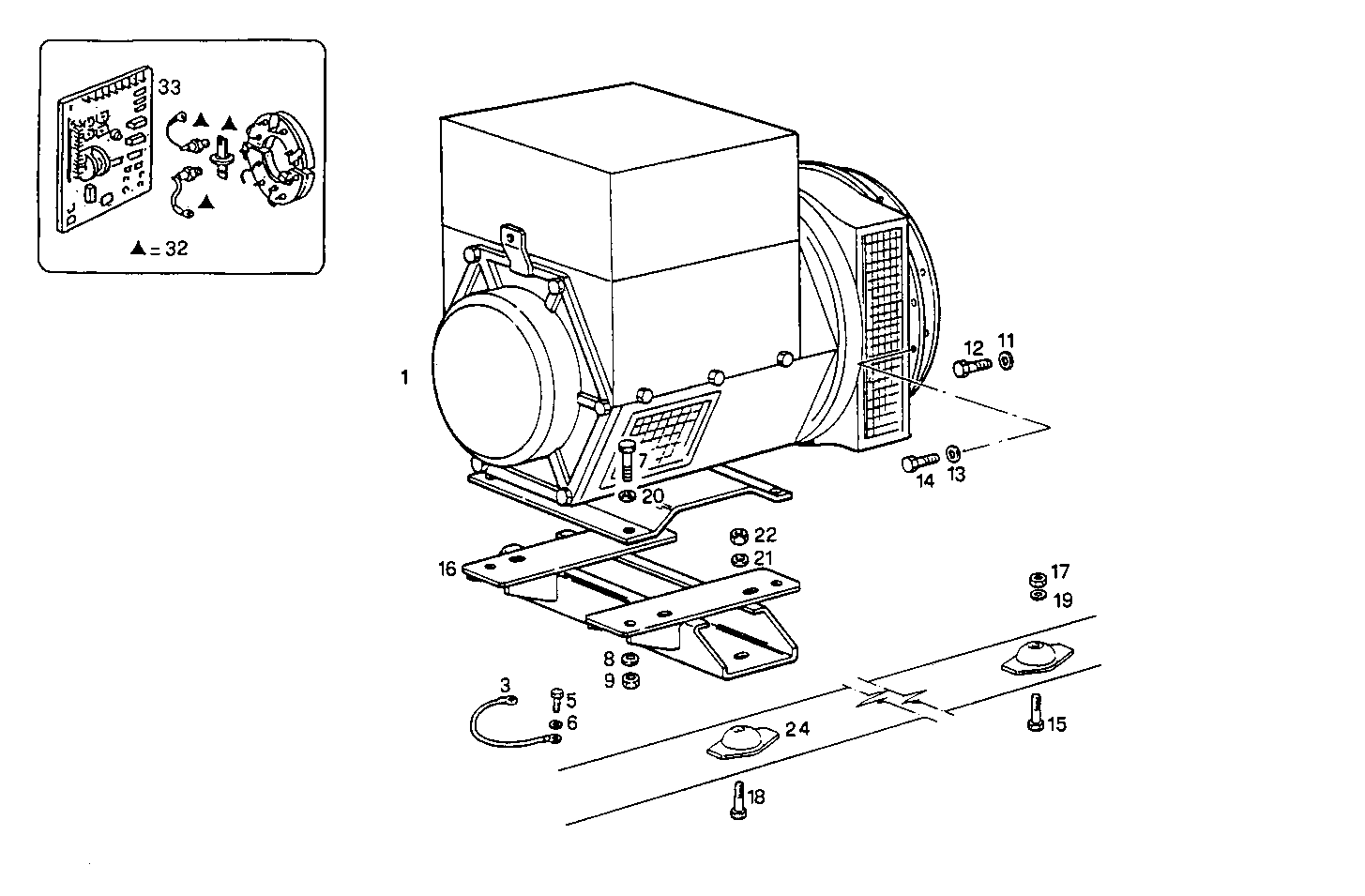

| Item |
Part number |
Description |
|
1 |
8005810 |
ELECTRIC MACHINE UCI 274 H (50-60HZ) |
|
3 |
8104707 |
WIRE/CABLE |
|
5 |
16043321 |
HEXAGON BOLT M8X18 MM |
|
6 |
11193871 |
WASHER Ø8X16X1,4 MM |
|
7 |
15981121 |
HEXAGON BOLT M16X60 MM |
|
8 |
11200271 |
WASHER Ø16X34X4,4 MM |
|
9 |
12164111 |
HEXAGON NUT M16X1,5 |
|
11 |
10516871 |
SPRING WASHER Ø10,5 MM |
|
12 |
15970531 |
SCREW |
|
13 |
11198371 |
SPRING WASHER Ø10X20 MM |
|
14 |
11306921 |
SCREW M10X1,25X30 |
|
15 |
11227021 |
HEXAGON BOLT M14X1,5X65 MM |
|
16 |
8100182 |
SUPPORT |
|
17 |
12164011 |
HEXAGON NUT M14X1,5 [up to…] |
|
18 |
15840521 |
SCREW M16X1,5X50 |
|
19 |
11200171 |
SPRING WASHER Ø15 MM |
|
20 |
4929369 |
WASHER |
|
21 |
11200471 |
WASHER |
|
22 |
12164311 |
HEXAGON NUT M20X1,5 |
|
24 |
4955094 |
RUBBER PAD |
|
32 |
8092769 |
KIT-GENERATOR Stamford |
|
33 |
8106738 |
EL.MACHINE VOLTAGE REGUL. Stamford |
