GE8361SRi26.00A52S

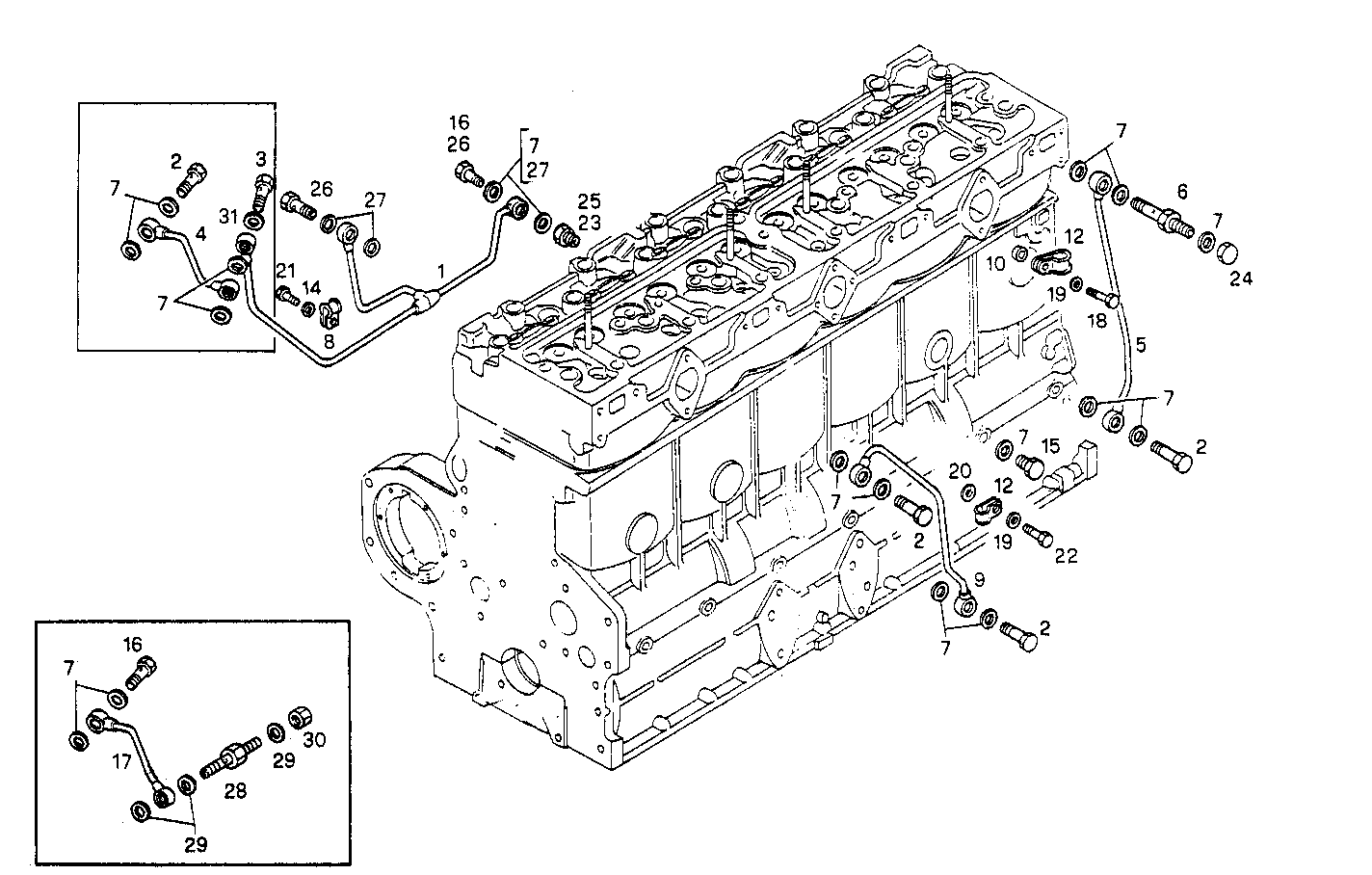

3010.025/01 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98430603 | OIL LINE |
| 2 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 3 | 4864079 | SCREW CONNECTOR M10X1 |
| 4 | 98428782 | OIL LINE [from ...] |
| 5 | 98427907 | OIL LINE |
| 6 | 98451916 | PIPE SOCKET |
| 7 | 4858606 | GASKET Ø10X14X1 MM |
| 8 | 10450090 | PIPE CLIP Ø8 MM |
| 9 | 98427899 | OIL LINE |
| 10 | 13606011 | SPACER SP=8,5 MM |
| 12 | 10449890 | PIPE CLIP Ø53 MM |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 15 | 11903111 | LOCK PLUG M10X1,25 |
| 17 | 4815033 | OIL LINE [up to ...] |
| 18 | 16625734 | HEXAGON BOLT M8X35 |
| 19 | 11193871 | WASHER Ø8X16X1,4 MM |
| 20 | 12646701 | WASHER Ø8X20 MM |
| 21 | 16043124 | SCREW M8X14 MM |
| 22 | 16043321 | HEXAGON BOLT M8X18 MM |
| 23 | 4858852 | PIPE SOCKET |
| 24 | 38827772 | REAR SPRING |
| 25 | 4750513 | PIPE SOCKET [up to ...] |
| 26 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 28 | 11901617 | SWIVEL COUPLING |
| 29 | 10260060 | SEAL GASKET Ø8X12X1 MM |
| 30 | 11902017 | LOCK PLUG M8 |
