GE8361SRi26.00A52S

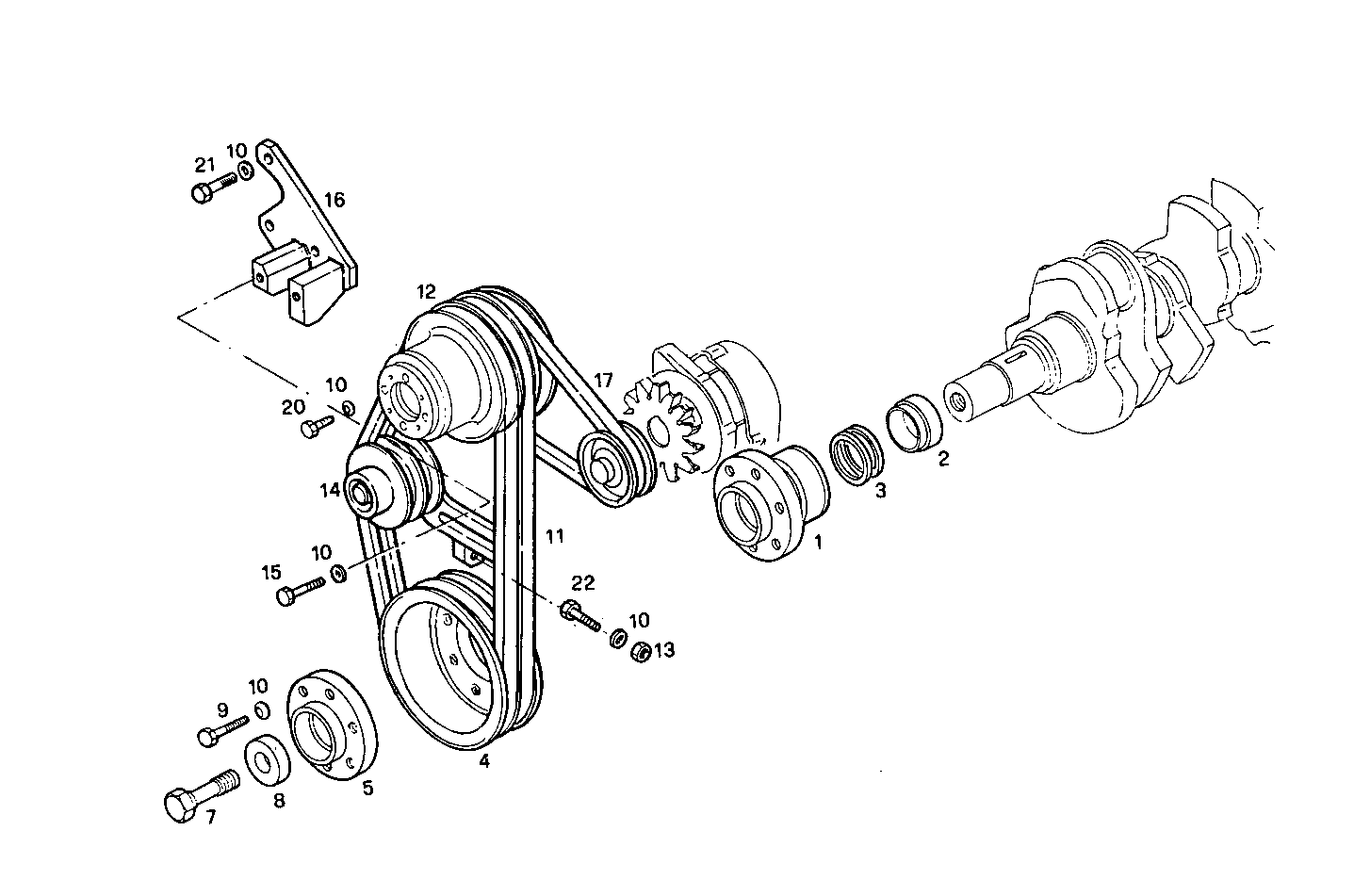

3240.013 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4820917 | HUB |
| 2 | 4711787 | BUSH |
| 3 | 4811426 | BUSH |
| 4 | 8112730 | PULLEY |
| 5 | 4725248 | SPACING BAR |
| 7 | 8823774 | SCREW |
| 8 | 8823773 | WASHER |
| 9 | 15888831 | HEXAGON BOLT M10X70 MM |
| 10 | 17090274 | WASHER Ø10X20 MM |
| 11 | 4763649 | SET OF V-BELTS KIT |
| 12 | 8112729 | PULLEY |
| 13 | 12164711 | HEXAGON NUT M10X1,25 |
| 14 | 8112733 | BELT TENSIONER |
| 15 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 16 | 8112731 | SUPPORT |
| 17 | 4830442 | V-BELT |
| 20 | 15971821 | SCREW M10X1,25X100 |
| 21 | 15971321 | HEXAGON BOLT M10X1,25X75 MM |
| 22 | 15231721 | SCREW M10X1,25X65 |
