GE8361SRi26.00A52S

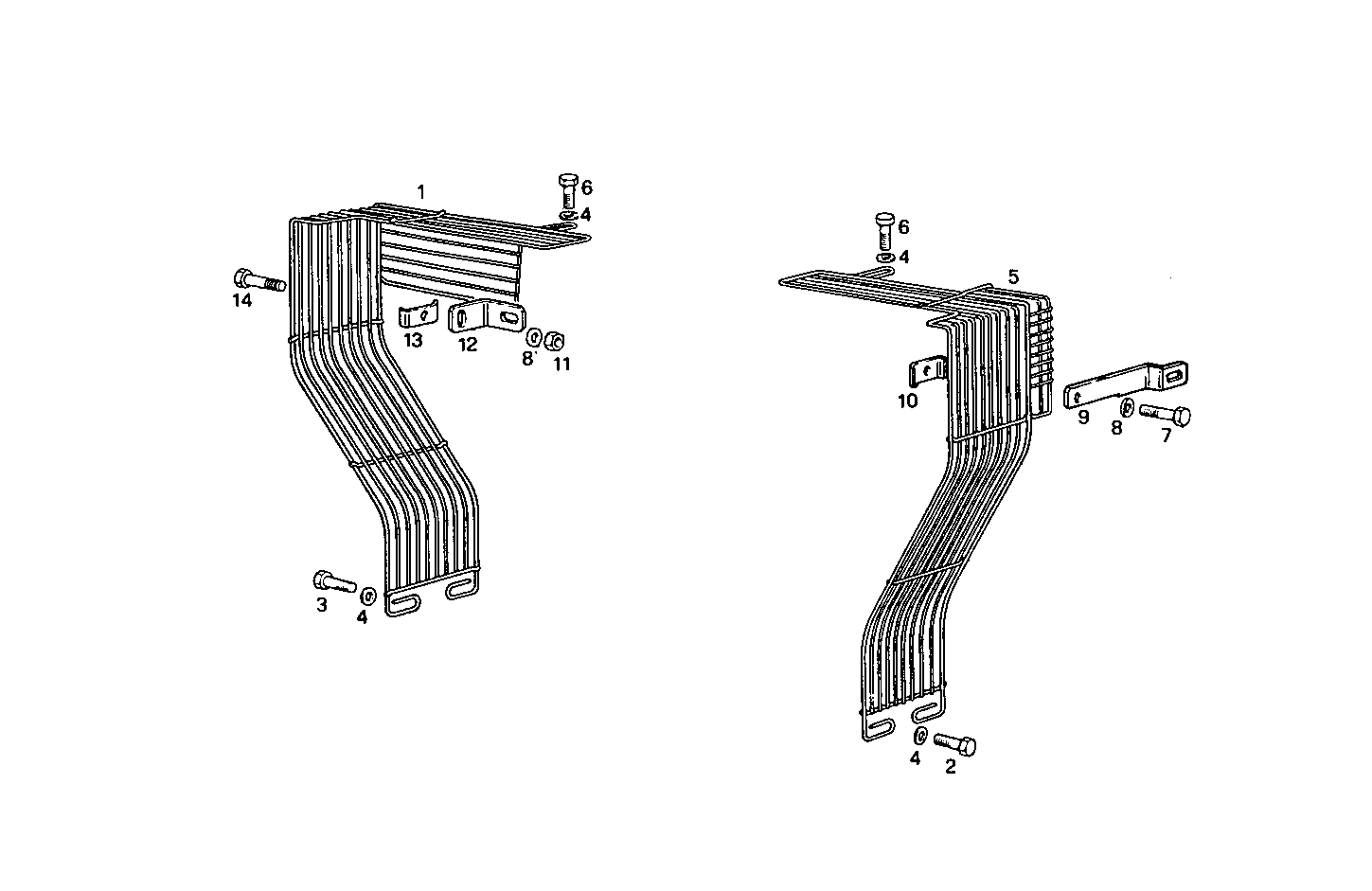

5770.004 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8114370 | PROTECTION |
| 2 | 11288021 | HEXAGON BOLT M10X1,25X60 MM |
| 3 | 16044121 | HEXAGON BOLT M8X45 MM (8.8) |
| 4 | 11198371 | SPRING WASHER Ø10X20 MM |
| 5 | 8114371 | PROTECTION |
| 6 | 15970521 | HEXAGON BOLT M10X20 MM |
| 7 | 16602224 | HEXAGON BOLT M5X20 MM |
| 8 | 12624101 | WASHER Ø5X22X2MM |
| 9 | 8005135 | RETAINER |
| 10 | 4641874 | RETAINER TOP |
| 11 | 10725011 | NUT |
| 12 | 4935433 | RETAINER |
| 13 | 4641873 | RETAINER BOTTOM |
| 14 | 10978021 | HEXAGON BOLT M5X20 MM |
