GE8361SRi26.00A52S

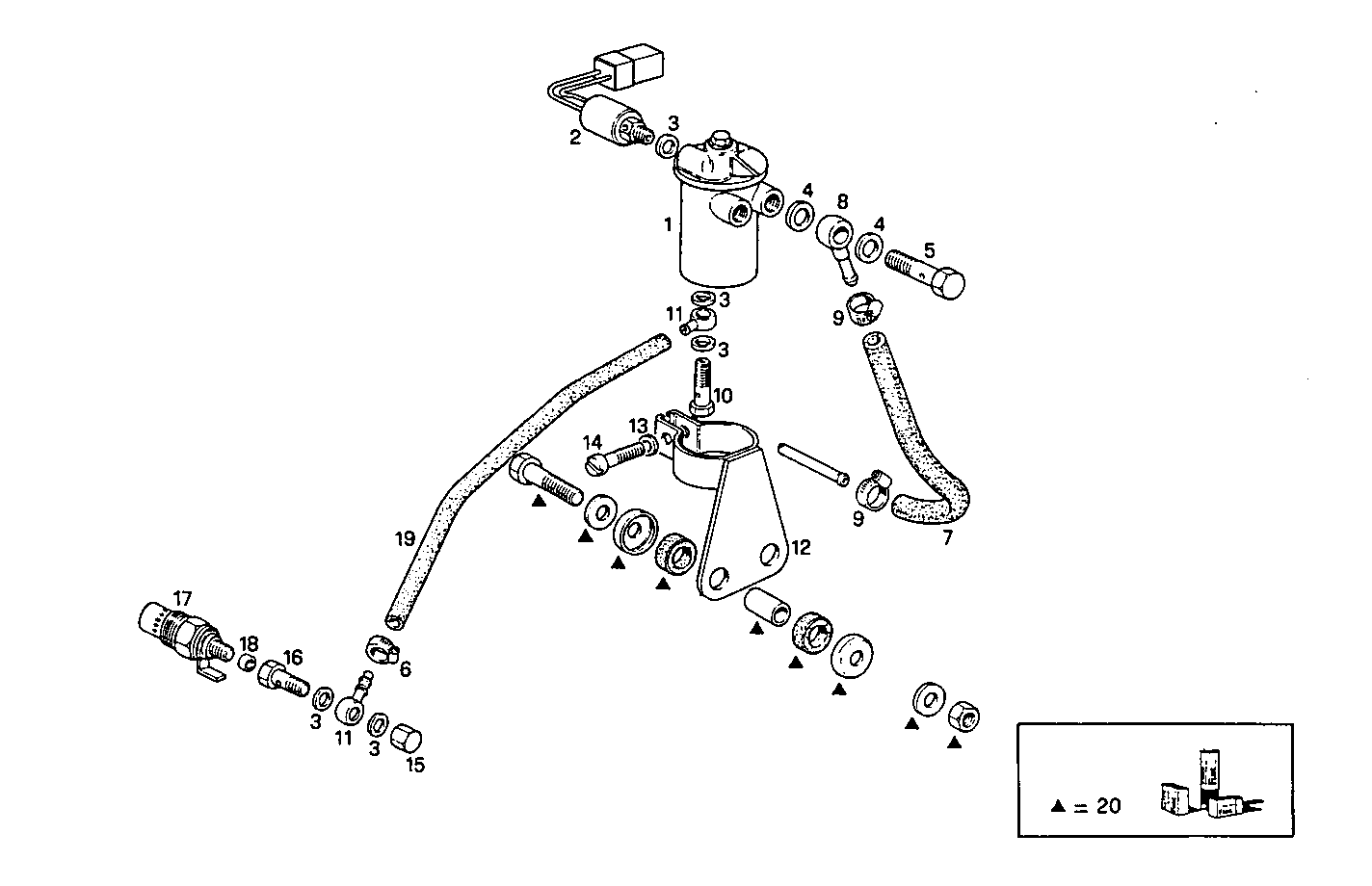

A20010006 THERMOSTARTER - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 4815431 | TANK FOR PREHEATER |
| 2 | 98414208 | ELECT.V.VE.PREHEAT |
| 3 | 98474303 | WASHER Ø8X14 MM SP=2,3 MM |
| 4 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
| 5 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 6 | 18087991 | CLIP Ø8/16 MM |
| 7 | 19056687 | RUBBER HOSE Ø7,5 MM |
| 8 | 98434018 | THREADED UNION |
| 10 | 4864079 | SCREW CONNECTOR M10X1 |
| 11 | 4647661 | SWIVEL COUPLING |
| 12 | 4617260 | SUPPORT |
| 13 | 17494631 | SPRING WASHER Ø5 MM |
| 14 | 10389811 | SCREW M5X20 |
| 15 | 11902017 | LOCK PLUG M8 |
| 16 | 4551101 | SCREW CONNECTOR |
| 17 | 4221168 | THERMO-STARTER 24V |
| 18 | 4557649 | WASHER |
| 19 | 19018087 | HOSE |
| 20 | 8090342 | KIT |
