GE8361SRi26.00A52S

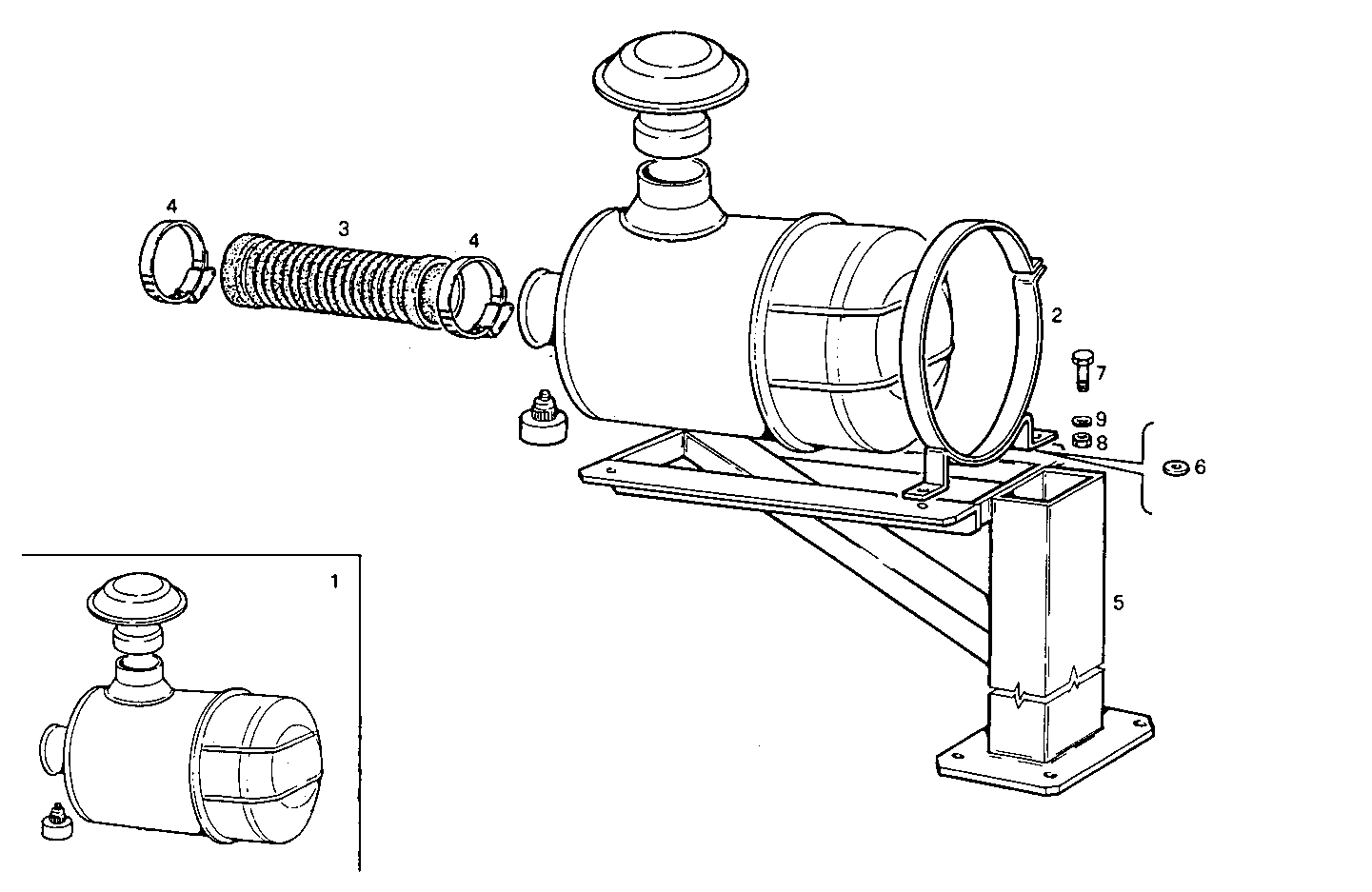

A21170033 DRY AIR CLEANER - with mechanical clogging gauge - genset
Item | Part number | Description |
---|---|---|
1 | 8106913 | AIR CLEANER ASSY |
2 | 8106400 | CLIP |
3 | 4616297 | RUBBER SLEEVE |
4 | 12174590 | CLIP Ø107-127 MM |
5 | 8108446 | SUPPORT |
6 | 741570 | WASHER Ø10X17 MM SP=2,3 |
7 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
8 | 12164711 | HEXAGON NUT M10X1,25 |
9 | 11190571 | SPRING WASHER Ø10X20 MM SP=2,3 |
