GE8361SRi26.06A955

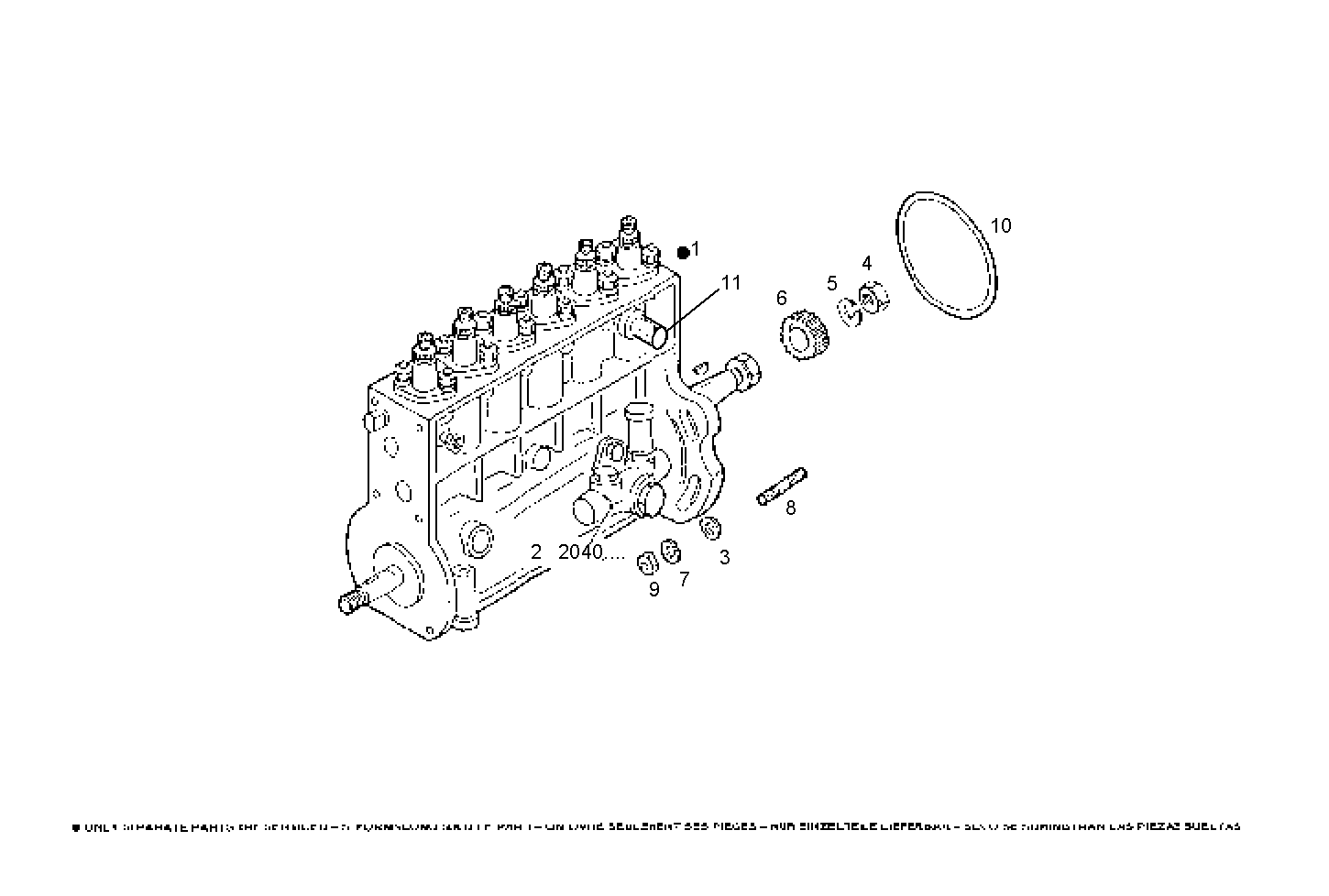

1400.115 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8010683 INLINE INJECT.PUMP ASSY
2 8092638 FUEL PUMP ASSY
3 759850 WASHER Ø10X21X2 MM
4 4750524 NUT
5 4750525 WASHER
6 4816286 BUSH 158ø
7 17090274 WASHER Ø10X20 MM
8 13449821 STUD M10X1,25X15 MM
9 17038221 HEXAGON NUT M10
10 17289281 O-RING Ø34,5 MM SP=3,53 MM
11 8194141 VALVE
