GE8361SRi26.06A955

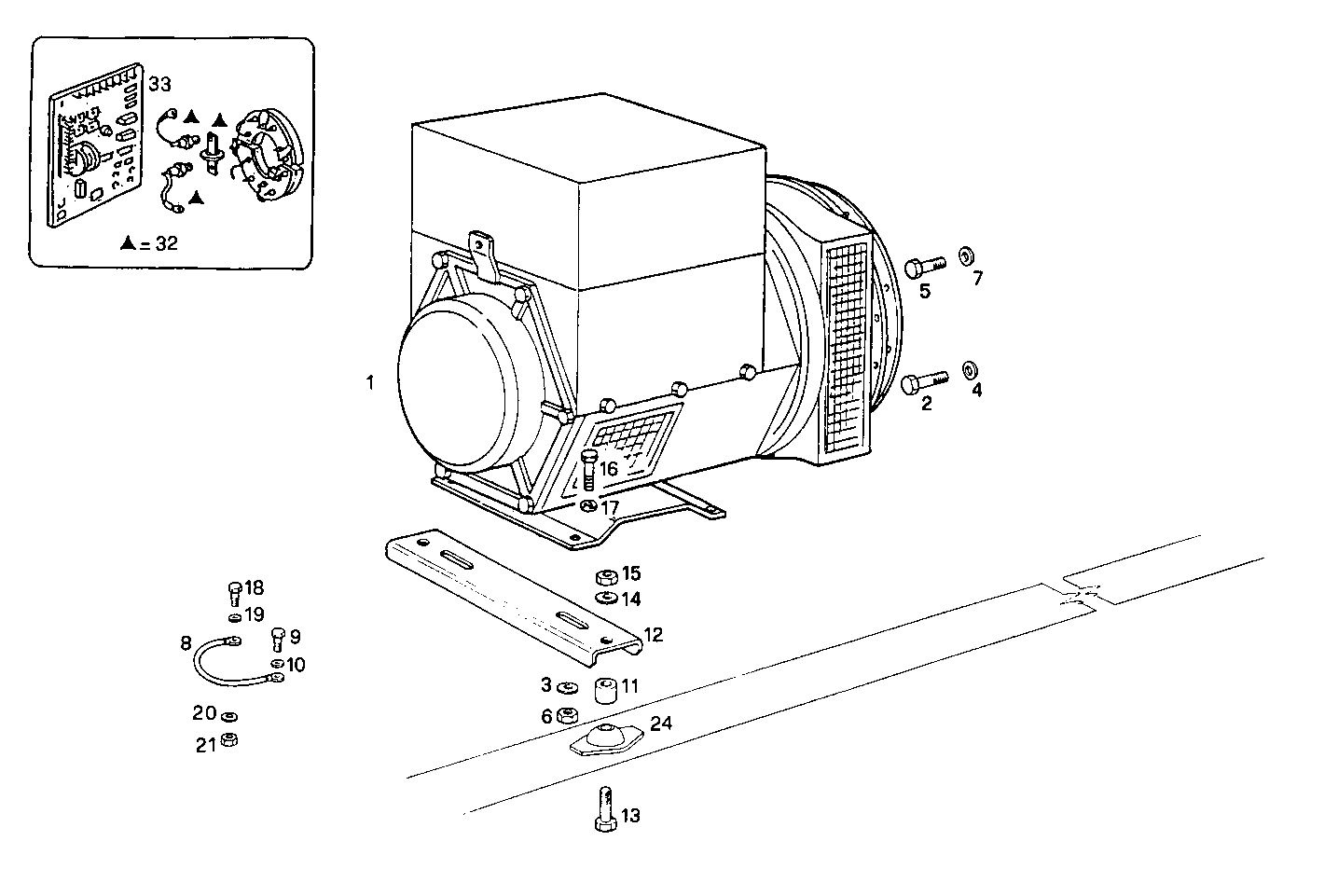

A37010047 SINGLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8005810 ELECTRIC MACHINE UCI 274 H (50-60HZ)
2 11306921 SCREW M10X1,25X30
3 4279447 WASHER
4 17090174 SPRING WASHER Ø10X20 MM
5 15970521 HEXAGON BOLT M10X20 MM
6 17039321 NUT M20X2,5
7 17494934 WASHER Ø10X18,1X2,2 MM
8 8104707 WIRE/CABLE
9 16605524 HEXAGON BOLT M8X20 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 8016025 SPACING BAR
12 8015167 SUPPORT
13 16620224 SCREW M24X90
14 17093174 WASHER Ø24X46X5,4 MM
15 17039721 HEXAGON NUT M24
16 16617224 SCREW M20X50
17 17092774 WASHER Ø20X38X4,6 MM
18 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
19 17095004 WASHER Ø10X18X2 MM
20 17710274 WASHER
21 17038121 HEXAGON NUT M10
24 4955094 RUBBER PAD
32 8092769 KIT-GENERATOR Stamford
33 8106738 EL.MACHINE VOLTAGE REGUL. Stamford
