GE8361SRi26.06A955

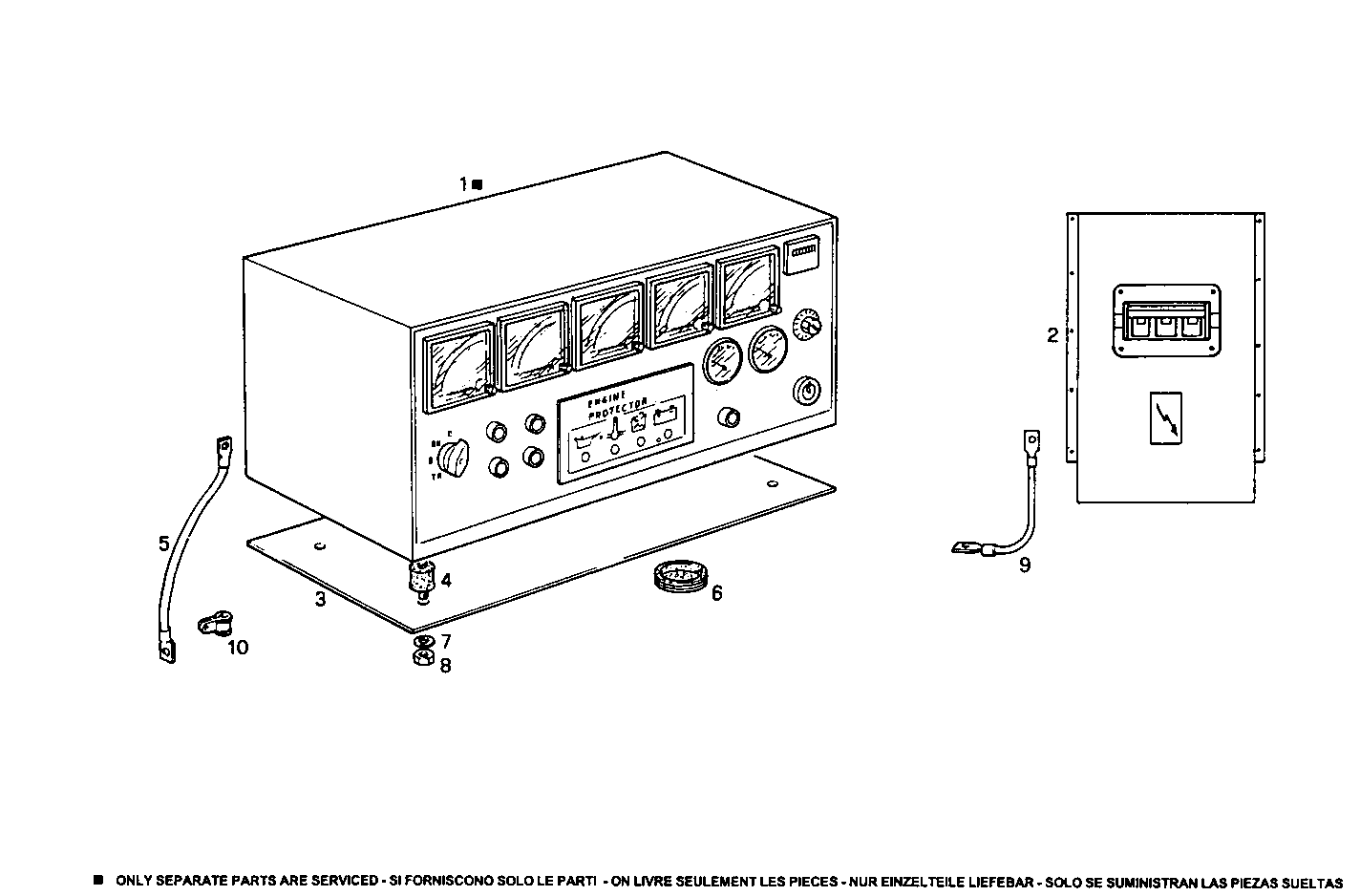

A60220039 MANUAL CONTROL BOARD FOR ELECT. MACHINE - LEROY

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8009060 CONTROL BOARD ASSY 200-210KVA 380V 50-60HZ [from 07-93]
2 8016371 SWITCH 250A
3 8015662 COVER
4 8104155 DOWEL
5 8006993 EARTH WIRE
6 8113214 INSULATING RING
7 17088474 WASHER Ø6X12 MM
8 17037821 HEXAGON NUT M6X1
9 8104358 EARTH WIRE
10 17314890 CLIP
