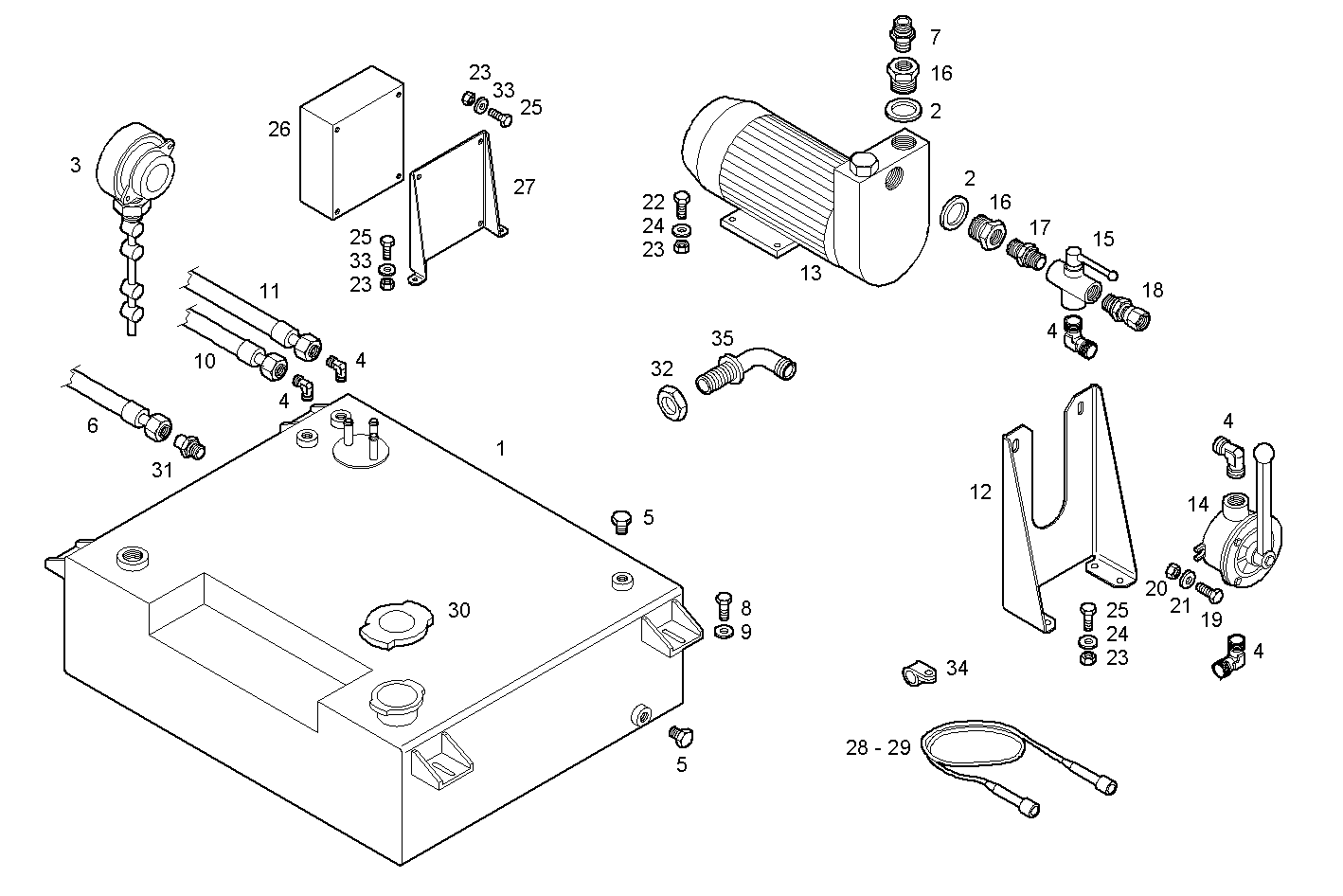

| Item |
Part number |
Description |
|
1 |
8029747 |
TANK |
|
2 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
3 |
8029416 |
FUEL LEVEL GAUGE |
|
4 |
8028539 |
ELBOW COUPLING |
|
5 |
8029748 |
THREADED PLUG |
|
6 |
8029688 |
FUEL PIPES |
|
7 |
8028524 |
THREADED UNION |
|
8 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
9 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
10 |
8029687 |
FUEL PIPES |
|
11 |
8028752 |
FUEL PIPES |
|
12 |
8028602 |
RETAINER |
|
13 |
8028527 |
PUMP |
|
14 |
8012424 |
MAR. ENG. SUCTION PUMP |
|
15 |
8028526 |
RETAINER COCK |
|
16 |
8028519 |
PIPE SOCKET |
|
17 |
8028522 |
PIPE SOCKET |
|
18 |
8028541 |
PIPE SOCKET |
|
19 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
20 |
17037925 |
HEXAGON NUT M8X1,25 |
|
21 |
17089574 |
WASHER Ø8X16 MM |
|
22 |
10902633 |
HEXAGON BOLT M6X1X25 MM |
|
23 |
17037821 |
HEXAGON NUT M6X1 |
|
24 |
17088874 |
WASHER |
|
25 |
16603677 |
HEXAGON BOLT M6X16 MM |
|
26 |
8029967 |
SWITCHGEAR |
|
27 |
8029948 |
RETAINER |
|
28 |
8029992 |
WIRE/CABLE |
|
29 |
8029994 |
WIRE/CABLE |
|
30 |
8018418 |
FUEL TANK PLUG |
|
31 |
8028490 |
PIPE SOCKET |
|
32 |
16981135 |
HEXAGON NUT M22 |
|
33 |
17088474 |
WASHER Ø6X12 MM |
|
34 |
17315090 |
FASTENING BRACKET Ø14 MM |
|
35 |
8028890 |
PIPE SOCKET M22 |
