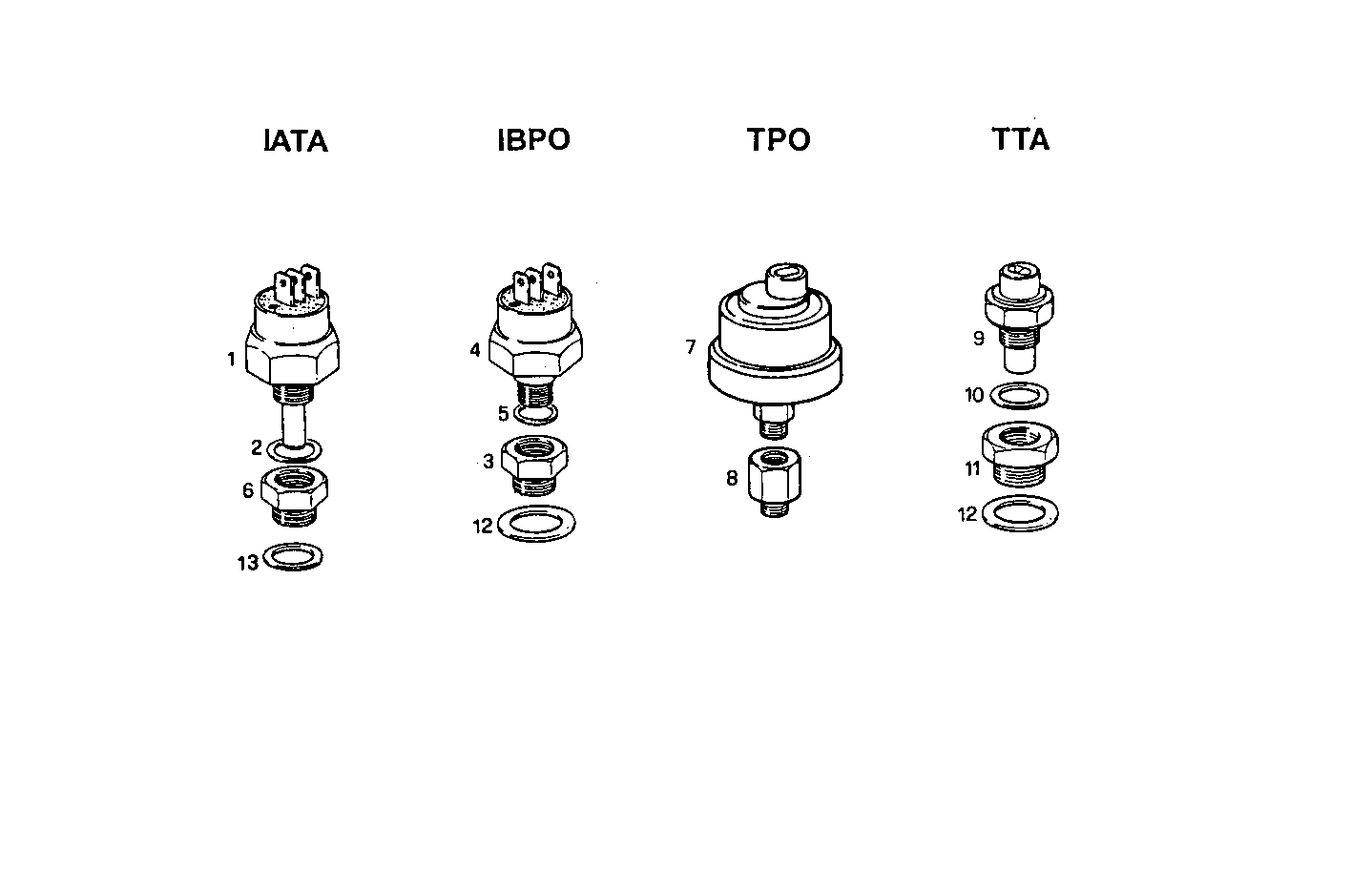

A38550073 SENDER UNITS FOR INSTRUMENTS - two poles system - 12/24V - VEGLIA

Iveco/FPT SENDER UNITS FOR INSTRUMENTS

Item Part number Description
1 8019581 TRANSMITTER IATA
2 4858608 SEAL GASKET dia.14x19,5x1,5
3 8113358 PIPE SOCKET
4 8114030 TRANSMITTER IBPO
5 4858607 WASHER Ø12X17 MM SP=1,5 MM
6 4752787 PIPE SOCKET
7 8100563 TRANSMITTER TPO
8 4929444 PIPE SOCKET
9 4933019 TRANSMITTER TTA - TTO
10 4858609 WASHER Ø16X22 MM SP=1,5 MM
11 4919578 PIPE SOCKET M22X1,5/M16X1,5
12 10263460 WASHER Ø22X28X1,5 MM
13 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
