GE8361SRi26.07R970

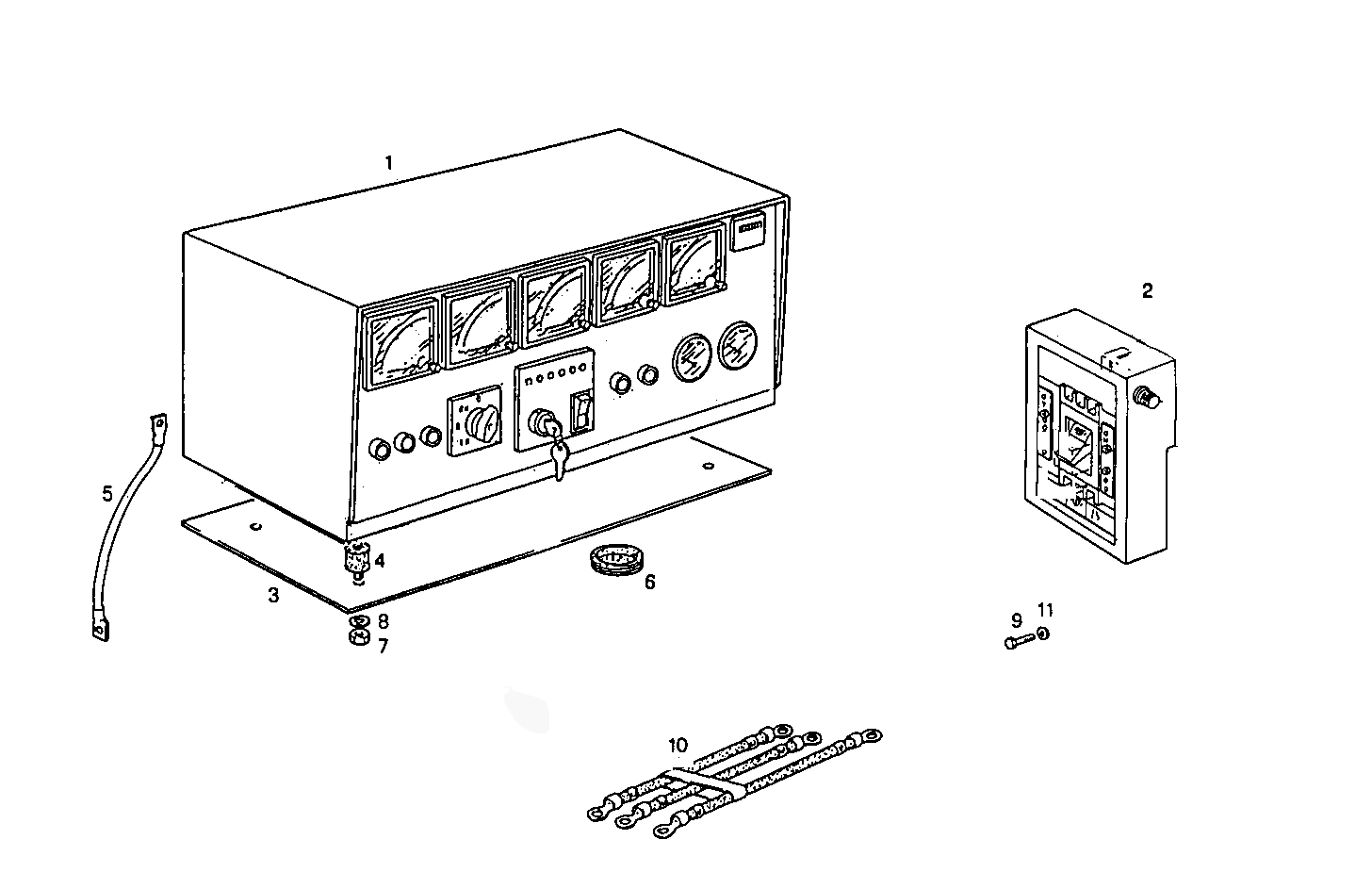

A60330024 MANUAL CONTROL BOARD FOR ELECT. MACHINE
| Item | Part number | Description |
|---|---|---|
| 1 | 8022359 | CONTROL BOARD ASSY |
| 2 | 503110722 | SWITCH |
| 3 | 8019202 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8110852 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 16603524 | SCREW M6X12 MM (8.8) |
| 10 | 8020691 | WIRE/CABLE |
| 11 | 17094724 | WASHER Ø6X12 MM |
