GE8361SRi26.07R970

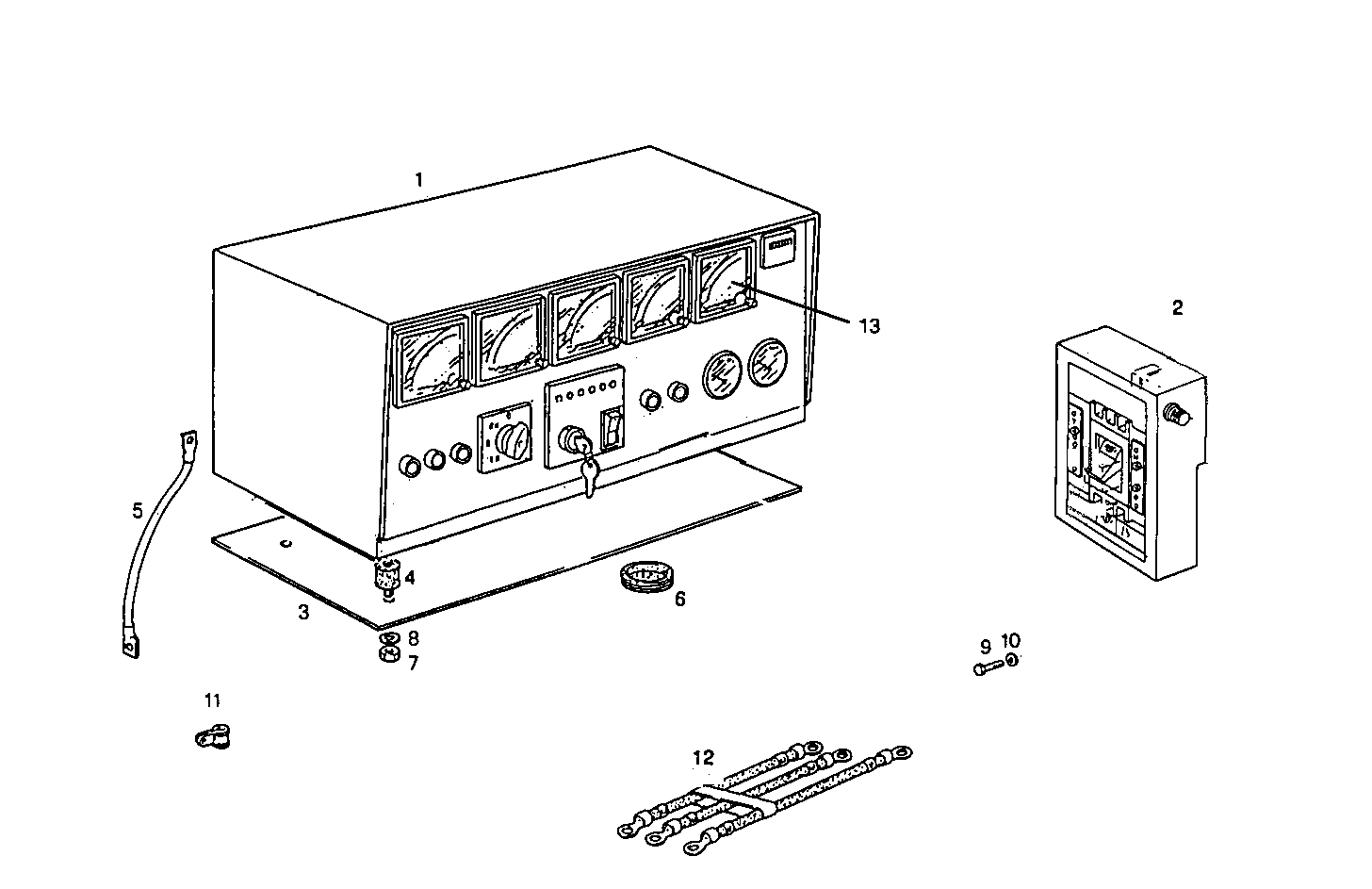

A60340019 MANUAL CONTROL BOARD FOR ELECT. MACHINE
| Item | Part number | Description |
|---|---|---|
| 1 | 8022359 | CONTROL BOARD ASSY |
| 2 | 503110788 | SWITCH |
| 3 | 8019255 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8006993 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 16603524 | SCREW M6X12 MM (8.8) |
| 10 | 17094724 | WASHER Ø6X12 MM |
| 11 | 10441290 | PIPE CLIP Ø10 MM |
| 12 | 8023970 | WIRE/CABLE |
| 13 | 8110956 | STOP PLATE 400A - 800A |
