GECURSOR250E.R990

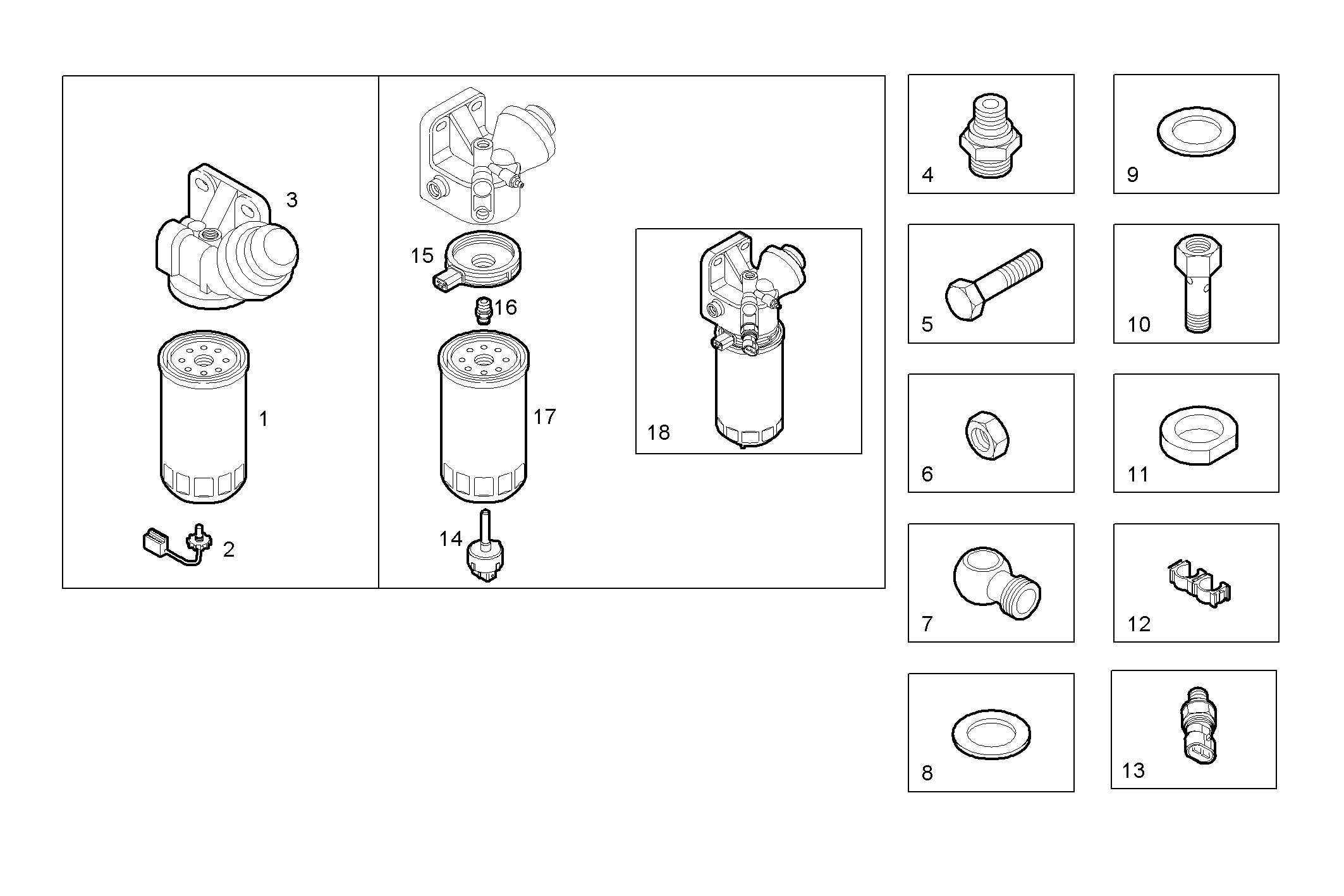

2090.009 FUEL PREFILTER

Iveco/FPT FUEL PREFILTER

Item Part number Description
1 1908547 FUEL FILTER ELEM.
2 99468264 SENSOR
3 500316676 FUEL FILT.SUPPORT [UP TO 10- 01-05]
4 1245715 THREADED UNION M14X1,5 - M18X1,5
5 16587425 HEXAGON BOLT M10X40 MM
6 17044825 HEXAGON NUT M10
7 97104163 BANJO COUPLING
8 98474308 SEAL GASKET Ø14X22 MM
9 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
10 504015866 THREADED UNION M14
11 504017409 SPACING BAR
12 504060998 SPRING CLAMP
13 504064817 THERMOSWITCH
14 42540203 SENSOR WATER
15 42548584 HEATER FUEL FILTE
16 42545832 THREADED UNION [FROM 11-01-05]
17 2992662 FUEL FILTER ELEM.
18 504082414 PREFILTER ASSY [FROM 11-01-05]
