GECURSOR250ED.R990

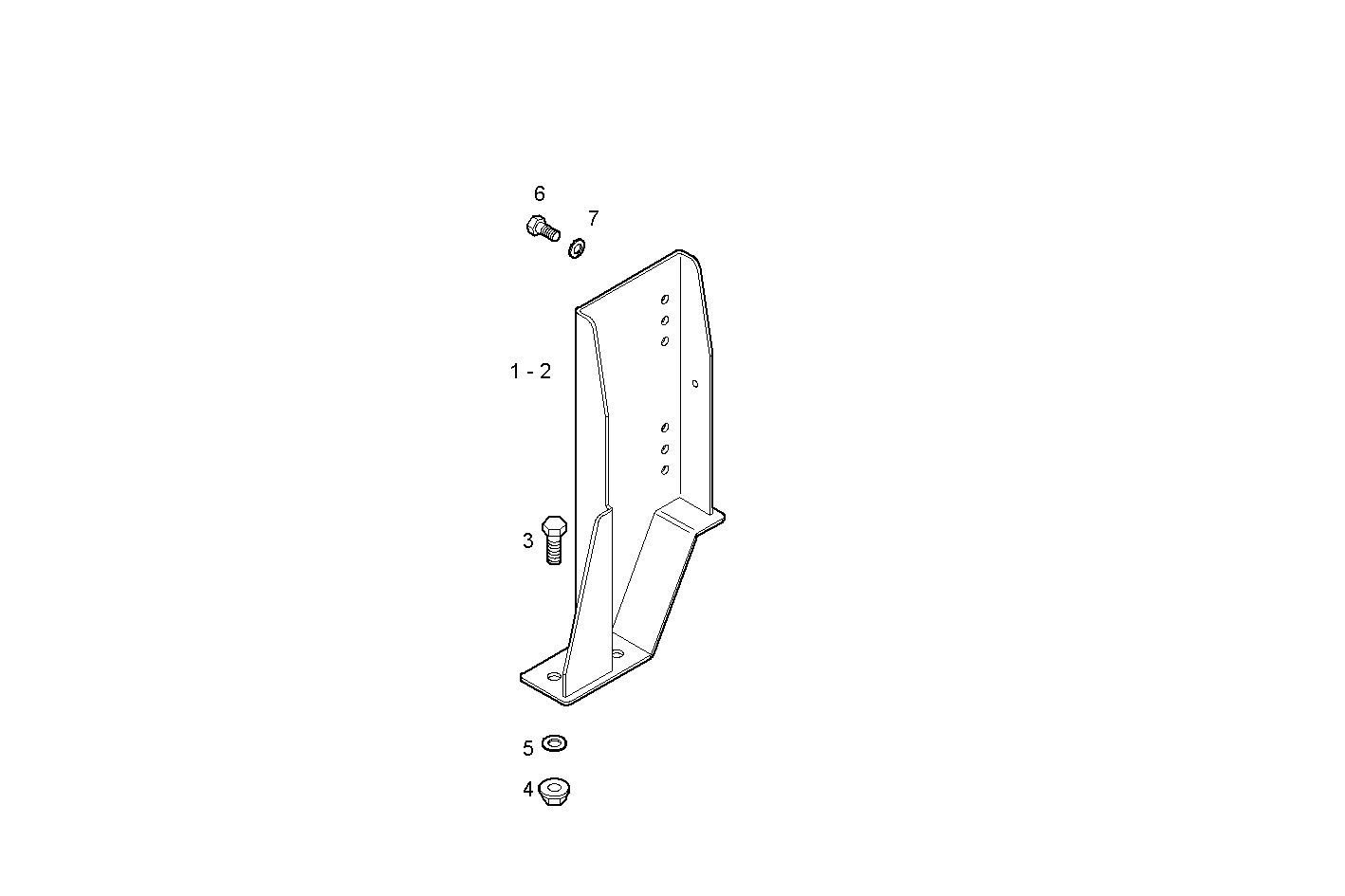

A04815003 POWER SWITCHBOARD SUPPORT
| Item | Part number | Description |
|---|---|---|
| 1 | 503114465 | SUPPORT RIGHT |
| 2 | 503114464 | SUPPORT LEFT |
| 3 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 4 | 17037925 | HEXAGON NUT M8X1,25 |
| 5 | 17089574 | WASHER Ø8X16 MM |
| 6 | 16924615 | HEXAGON BOLT M6 |
| 7 | 17088474 | WASHER Ø6X12 MM |
