GECURSOR250ES.A001

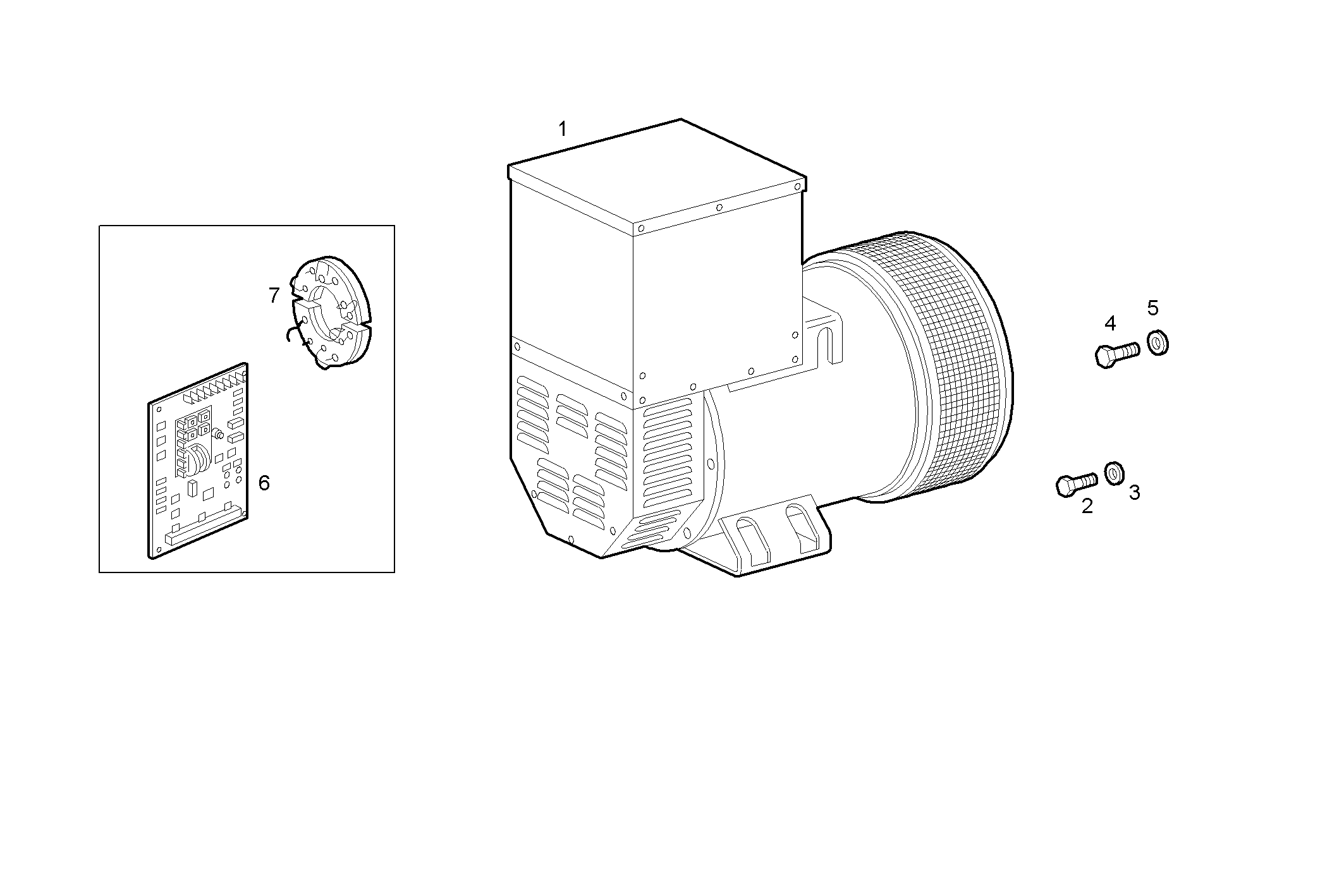

5720.004 ELECTRIC MACHINE
| Item | Part number | Description |
|---|---|---|
| 1 | 503112283 | ELECTRIC MACHINE ECO381LN 250KVA |
| 2 | 16608325 | HEXAGON BOLT |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
| 5 | 17091074 | WASHER Ø12X24X2,8 MM |
| 6 | 8094731 | EL.MACHINE VOLTAGE REGUL. |
| 7 | 8093763 | EL.MACH.DIODE BRIDGE |
