GECURSOR250ES.R990

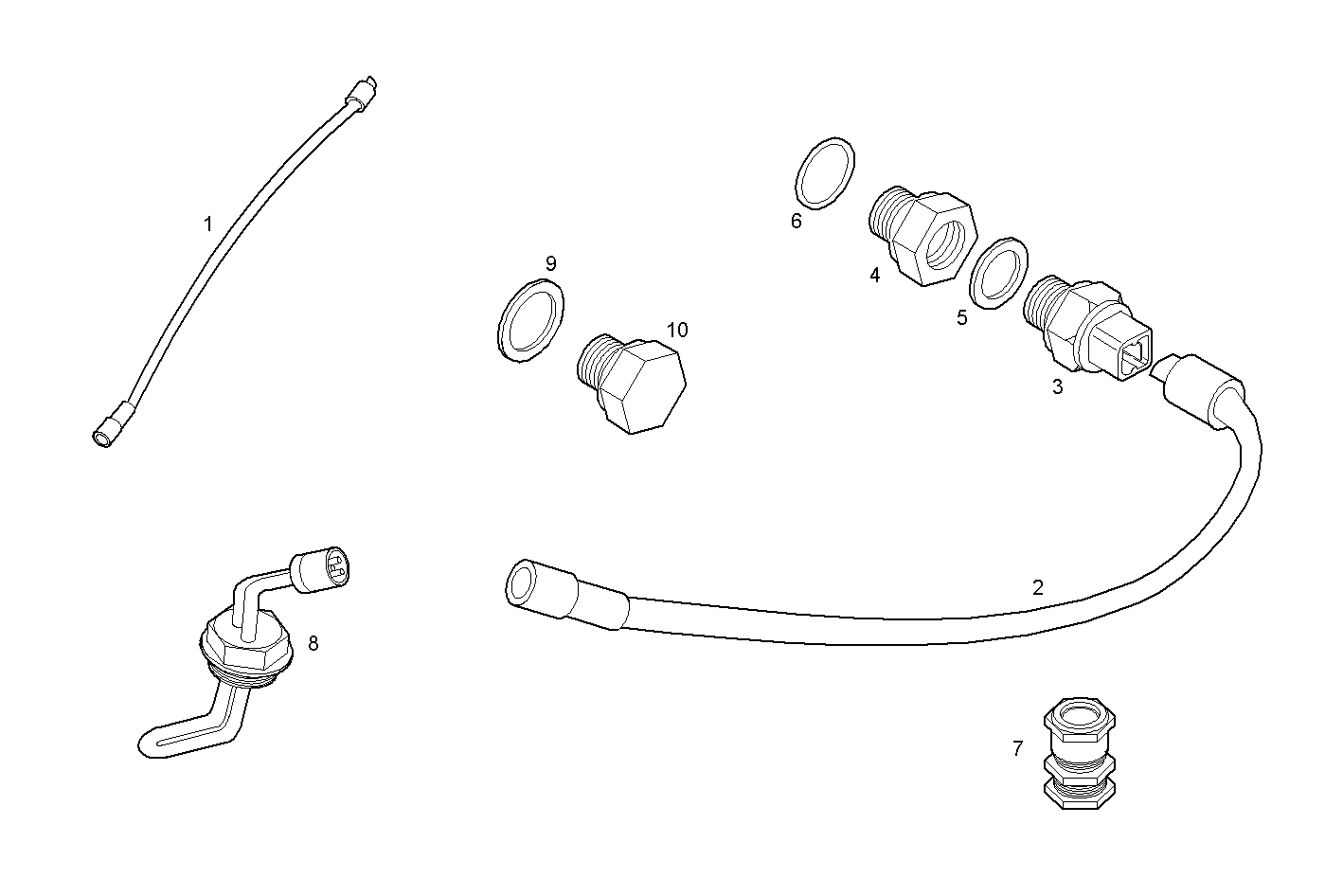

A20505004 WATER PREHEATER DEVICE - 120V

Iveco/FPT WATER PREHEATER DEVICE - 120V

Item Part number Description
1 8112321 WIRE/CABLE L=1000 MM
2 503111088 WIRE/CABLE
3 503110825 THERMOSWITCH
4 4928330 PIPE SOCKET M16X1,5/M14X1,5
5 98474308 SEAL GASKET Ø14X22 MM
6 99489019 WASHER Ø16X24 MM SP=1,5 MM
7 503111395 GROMMET
8 8043772 HEATER
9 98474309 WASHER Ø16X24 MM SP=1,9 MM
10 16992415 THREADED PLUG M16X1,5
