GECURSOR250ES.R990

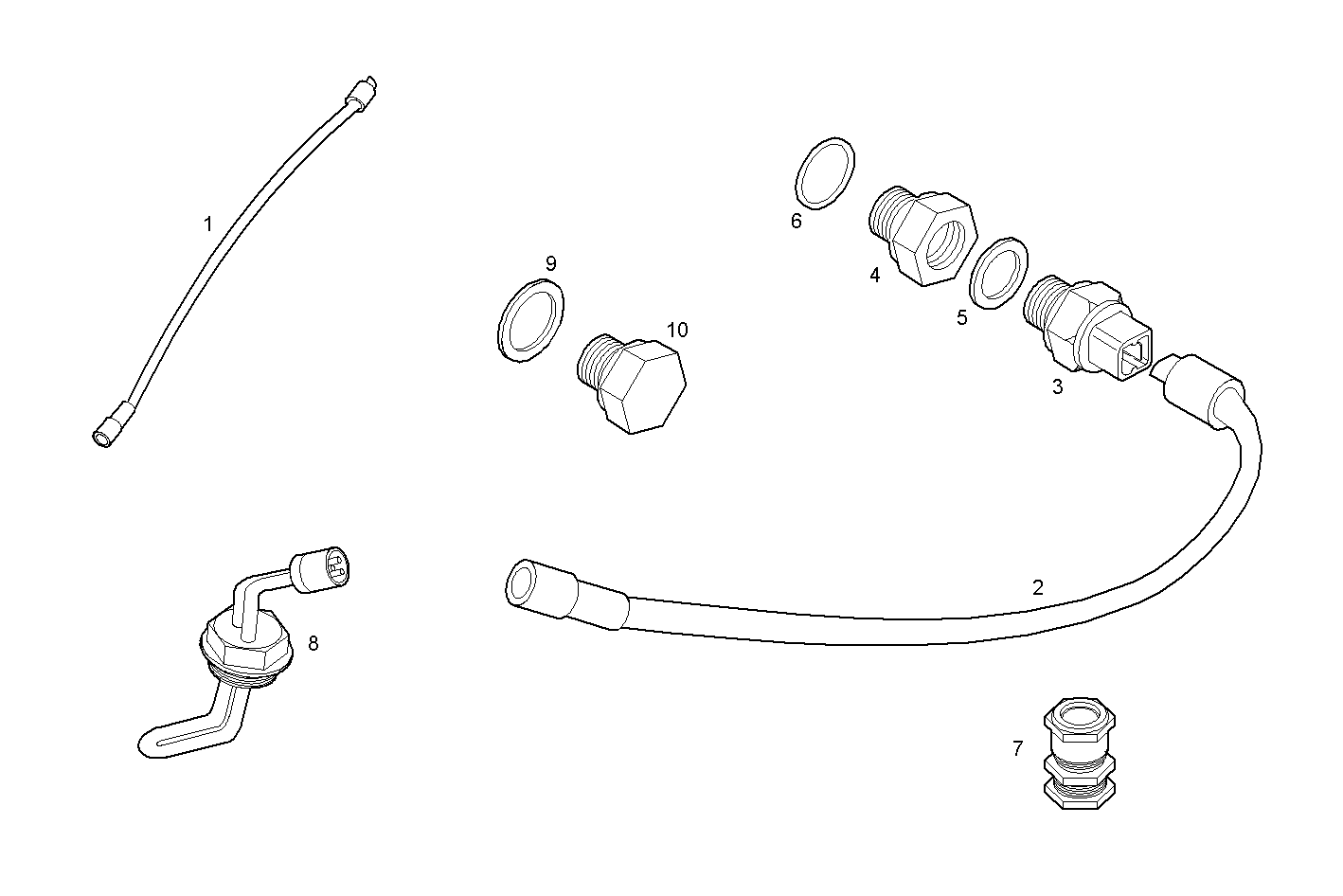

A20605004 WATER PREHEATER DEVICE - 230V
| Item | Part number | Description |
|---|---|---|
| 1 | 8112321 | WIRE/CABLE L=1000 MM |
| 2 | 503111088 | WIRE/CABLE |
| 3 | 503110825 | THERMOSWITCH |
| 4 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 5 | 98474308 | SEAL GASKET Ø14X22 MM |
| 6 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 7 | 503111395 | GROMMET |
| 8 | 8042895 | RESISTOR |
| 10 | 16992415 | THREADED PLUG M16X1,5 |
