GECURSOR300ED.A71M

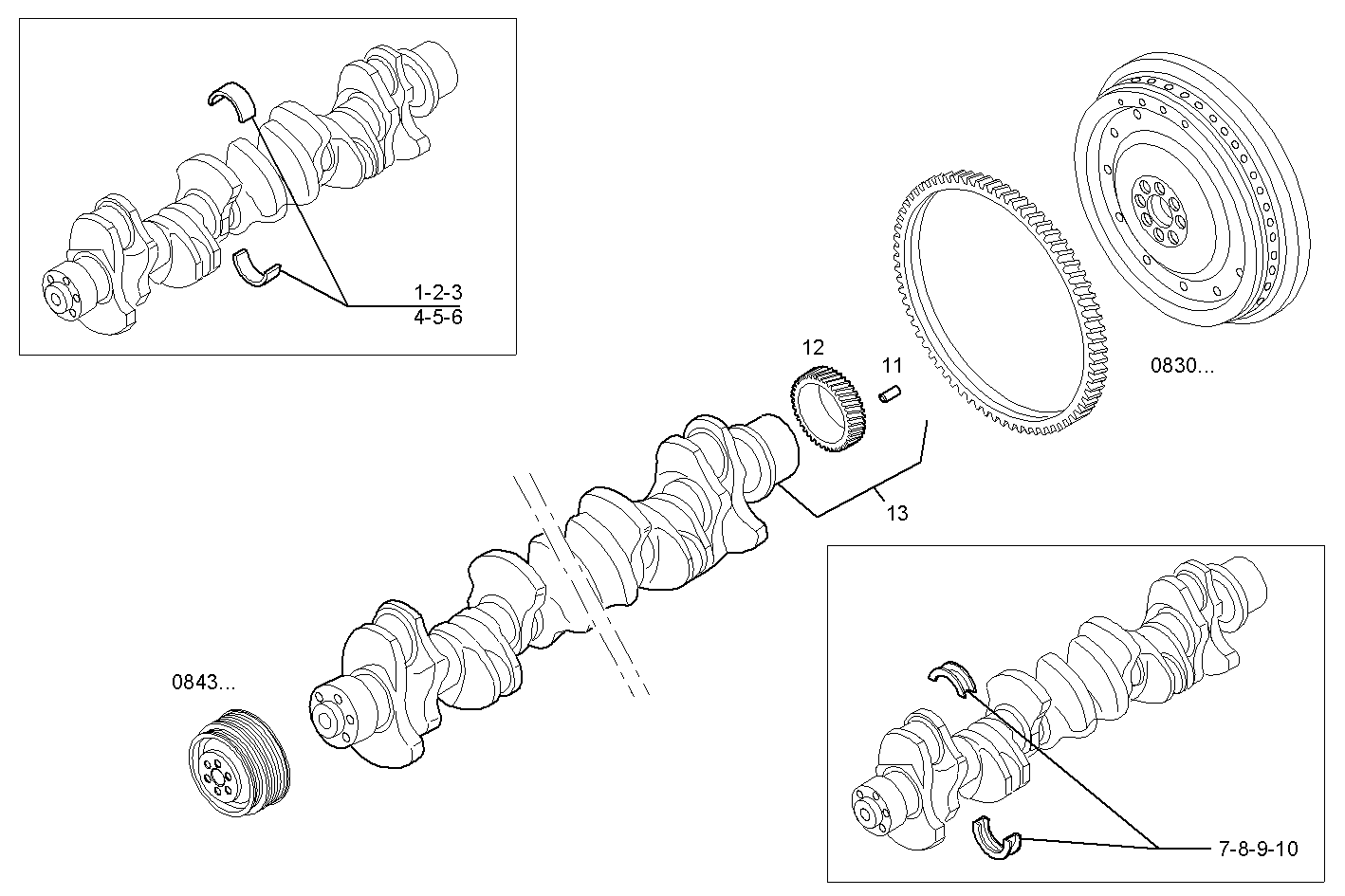

0801.012 CRANK SHAFT
Item | Part number | Description |
---|---|---|
1 | 2991776 | MAIN BEARING SET STD RED |
2 | 2991836 | MAIN BEARING SET STD GREEN |
3 | 2991838 | MAIN BEAR.SET -0,254 RED |
4 | 2991777 | MAIN BEAR.SET -0,127 RED BLACK |
5 | 2991839 | MAIN BEAR.SET -0,508 RED |
6 | 2991837 | MAIN BEAR.SET -0,127 GREEN BLACK |
7 | 2991780 | THRUSTRING SET STD RED |
8 | 2991840 | THRUSTRING SET STD GREEN |
9 | 2991842 | THRUSTRING SET STD - 0.508 MM RED |
10 | 2991841 | THRUSTRING SET STD - 0.254 MM RED |
11 | 17275410 | DOWEL PIN Ø8 MM |
12 | 99437423 | GEAR |
13 | 99437550 | CRANK SHAFT ASSY |
