GECURSOR300ED.R990

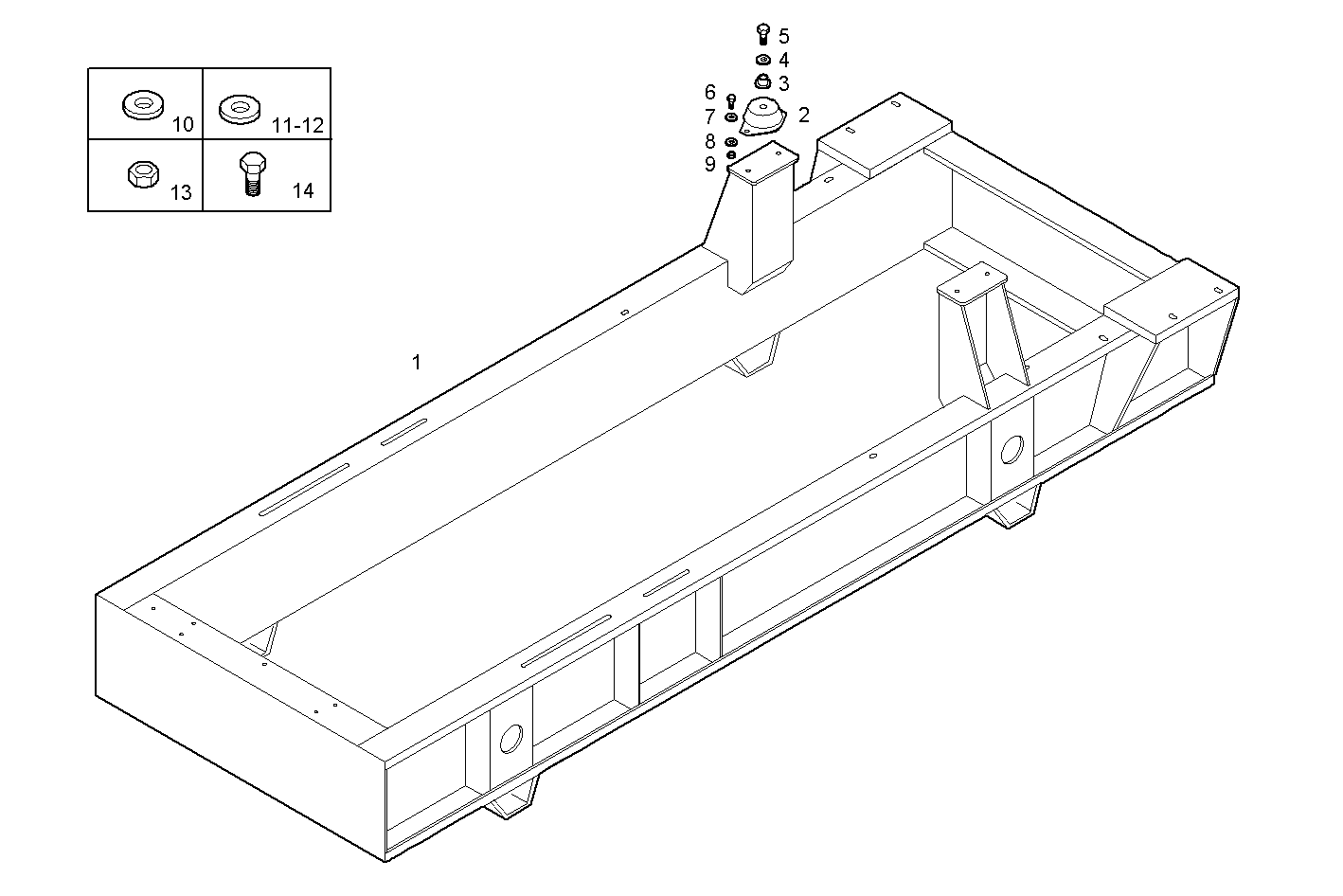

A36125003 SUBBASE FOR GENERATOR UNIT
| Item | Part number | Description |
|---|---|---|
| 1 | 503113130 | SUBBSAE-SUPPORT FRAME |
| 2 | 503112690 | RUBBER PAD |
| 3 | 503112692 | SPACING BAR |
| 4 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 5 | 16615224 | HEXAGON BOLT M16X70 MM |
| 6 | 16612324 | HEXAGON BOLT M14X35 MM |
| 7 | 17091674 | WASHER Ø14X27X3,0 MM |
| 8 | 17095504 | WASHER Ø14X28 MM |
| 9 | 17038725 | NUT M14 |
| 12 | 17710474 | WASHER |
| 14 | 16612224 | HEXAGON BOLT M14X30 MM |
