GECURSOR350E.A71M

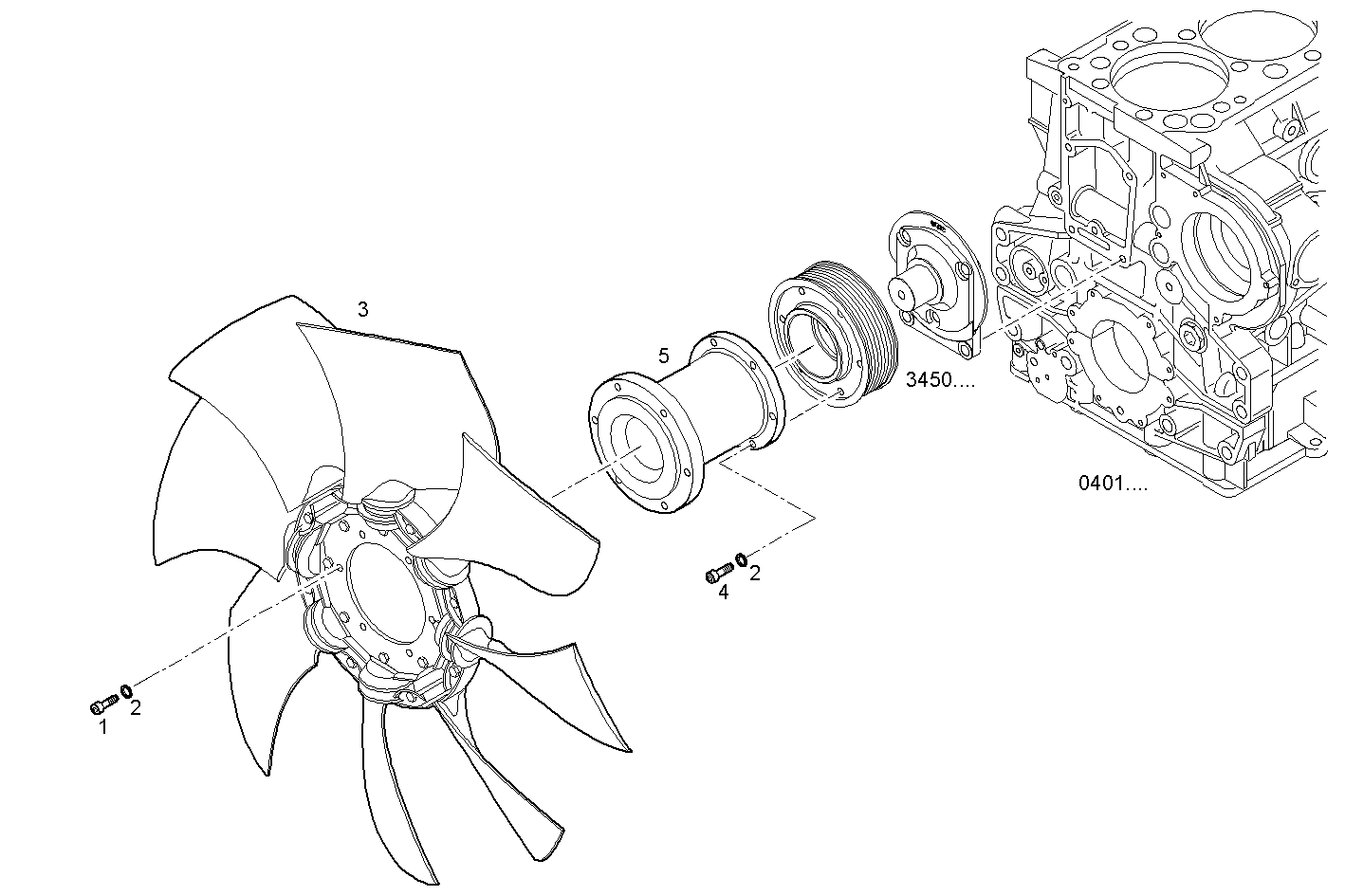

A08010519 HIGHTPUSHER FAN [FROM 15-07-06] [FROM 15-07-06]
Item | Part number | Description |
---|---|---|
1 | 16690625 | CYLIND-HEAD SCREW M8X25 MM |
2 | 17096824 | WASHER Ø8,40X15 MM |
3 | 8041461 | FAN EIGHT BLADES |
4 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
5 | 8045747 | HUB |
