GECURSOR350EA.A71M

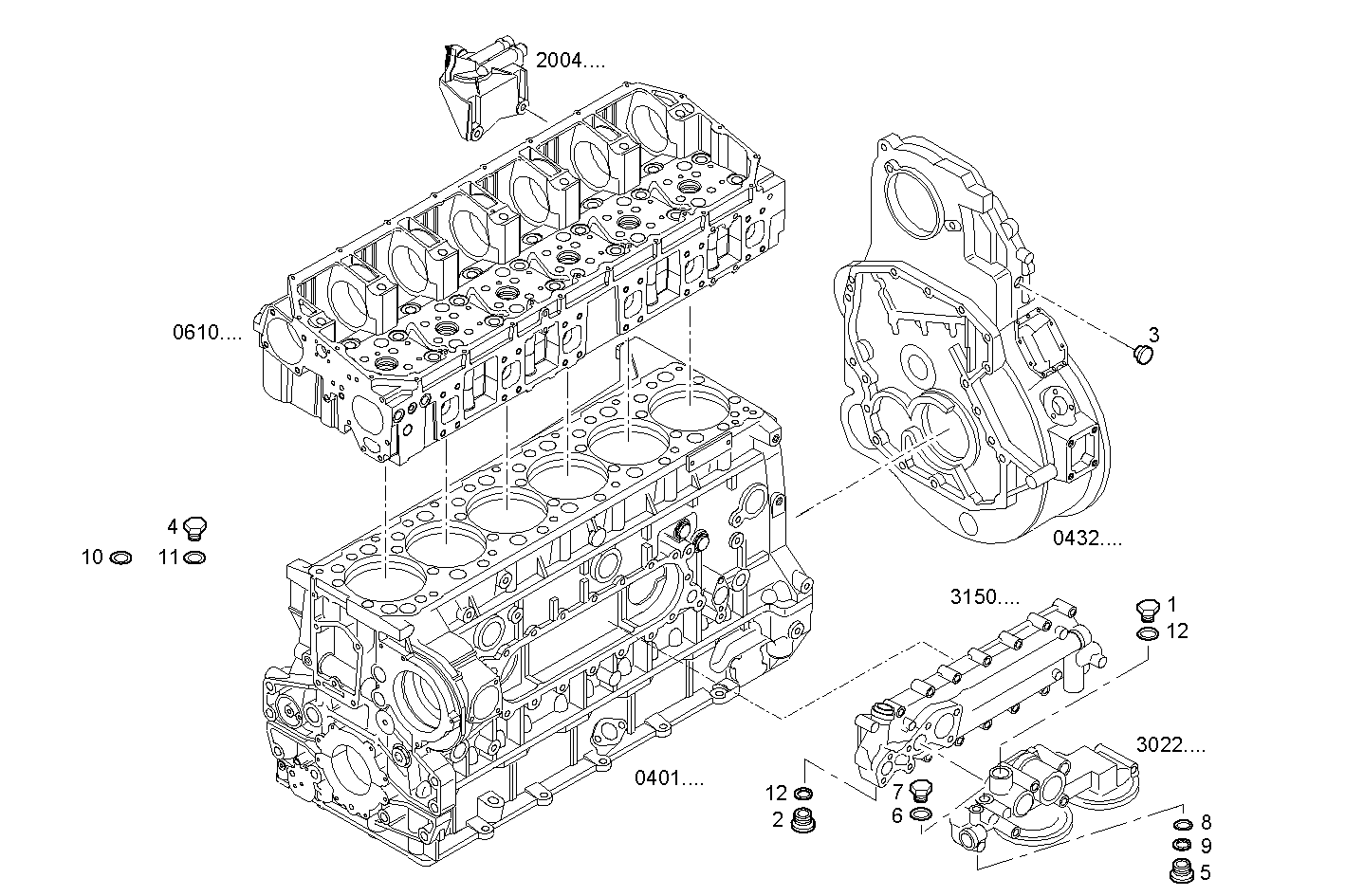

1712.026 SENSORS
| Item | Part number | Description |
|---|---|---|
| 1 | 504084571 | THREADED PLUG |
| 2 | 10300611 | LOCK PLUG M14X1,5 |
| 3 | 504051237 | THREADED PLUG DIAM=1/4" |
| 4 | 16992211 | THREADED PLUG M12X1,5 |
| 5 | 500337200 | THREADED PLUG [FROM # 50368] |
| 6 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 7 | 16992415 | THREADED PLUG M16X1,5 |
| 8 | 17278181 | O-RING [FROM # 50368] |
| 9 | 500337199 | O-RING [FROM # 50368] |
| 10 | 17277881 | O-RING Ø7,65 MM SP=1,78 MM |
| 11 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 12 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
