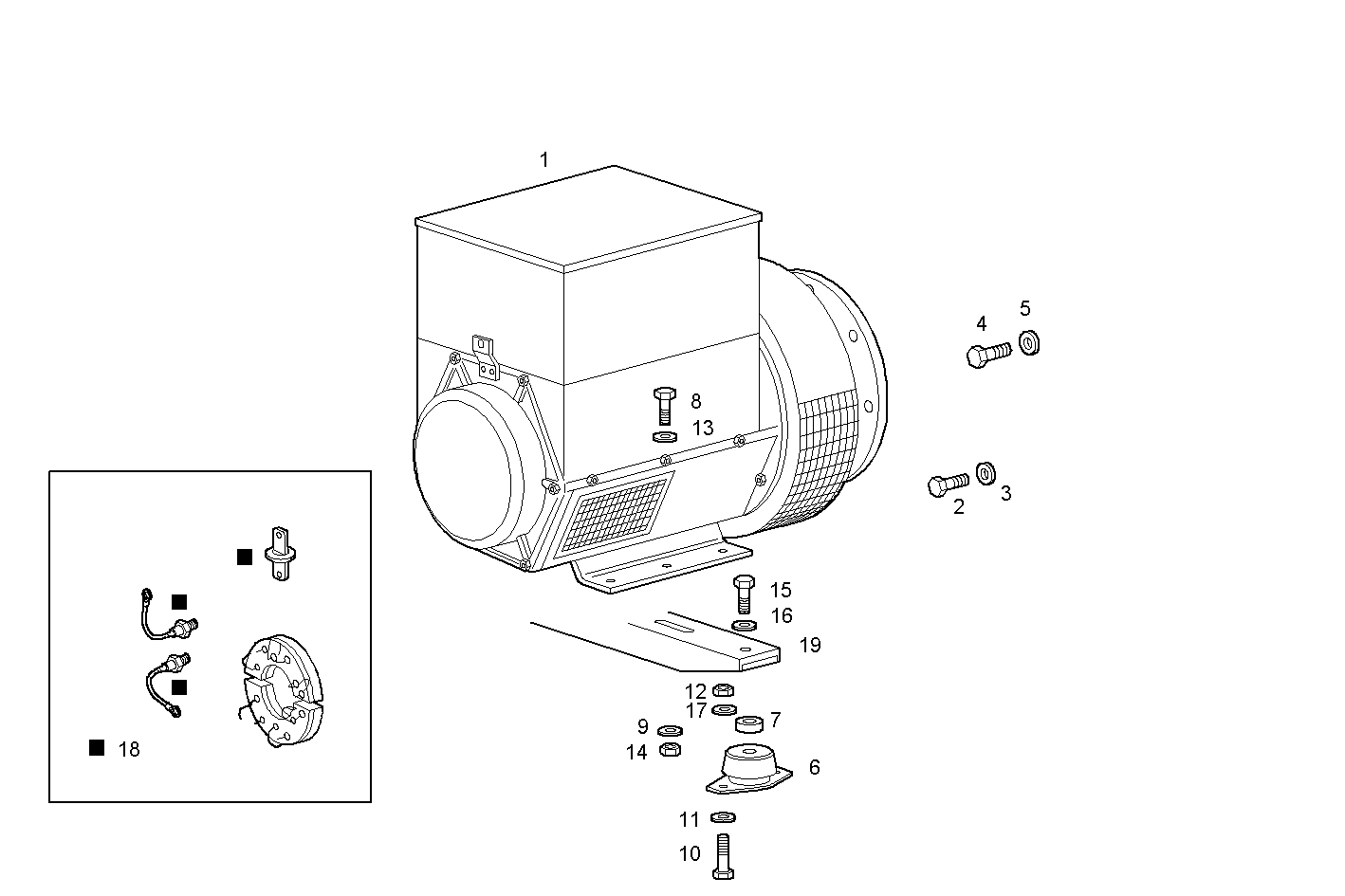

| Item |
Part number |
Description |
|
1 |
503112758 |
ELECTRIC MACHINE HCK4441E |
|
2 |
16608525 |
HEXAGON BOLT M10X1,5X70 MM (8.8) |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
16609924 |
HEXAGON BOLT M12X30 MM (8.8) |
|
5 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
6 |
503112690 |
RUBBER PAD |
|
7 |
503112698 |
SPACING BAR |
|
8 |
16620124 |
SCREW M24X3X80 |
|
9 |
17096214 |
WASHER |
|
10 |
16612424 |
HEXAGON BOLT M14X40 MM |
|
11 |
17091674 |
WASHER Ø14X27X3,0 MM |
|
12 |
17038725 |
NUT M14 |
|
13 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
14 |
17039721 |
HEXAGON NUT M24 |
|
15 |
16615524 |
HEXAGON BOLT |
|
16 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
17 |
17095504 |
WASHER Ø14X28 MM |
|
18 |
8092937 |
KIT-GENERATOR |
|
19 |
503112683 |
TIE |
