GECURSOR400E.R990

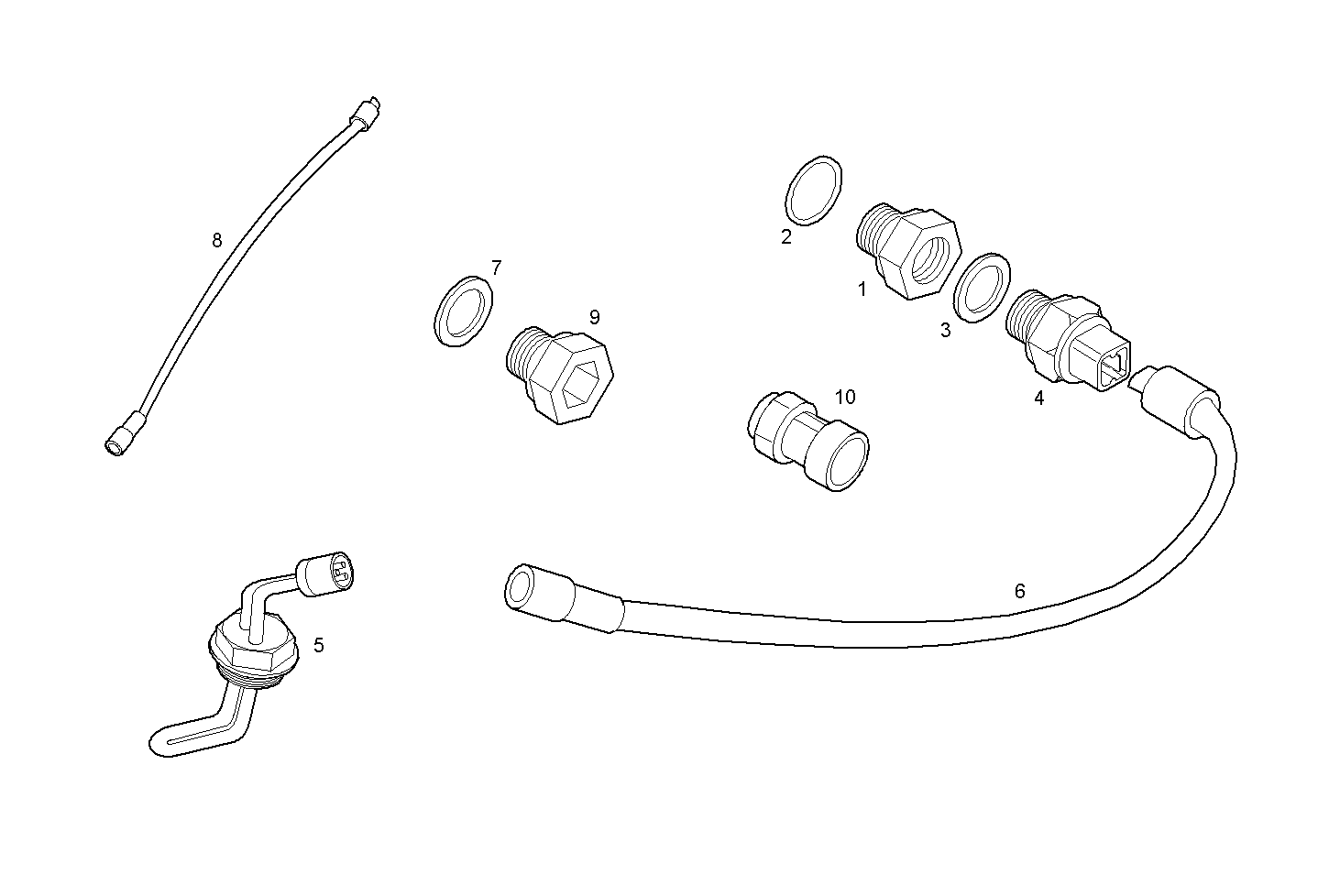

A20605003 HEATHER 220V
Item | Part number | Description |
---|---|---|
1 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
2 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
3 | 98474308 | SEAL GASKET Ø14X22 MM |
4 | 503110825 | THERMOSWITCH |
5 | 8038725 | HEATER |
6 | 503111088 | WIRE/CABLE |
7 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
8 | 8038505 | WIRE/CABLE |
9 | 16992415 | THREADED PLUG M16X1,5 |
10 | 503111395 | GROMMET |
