GECURSOR400E.R990

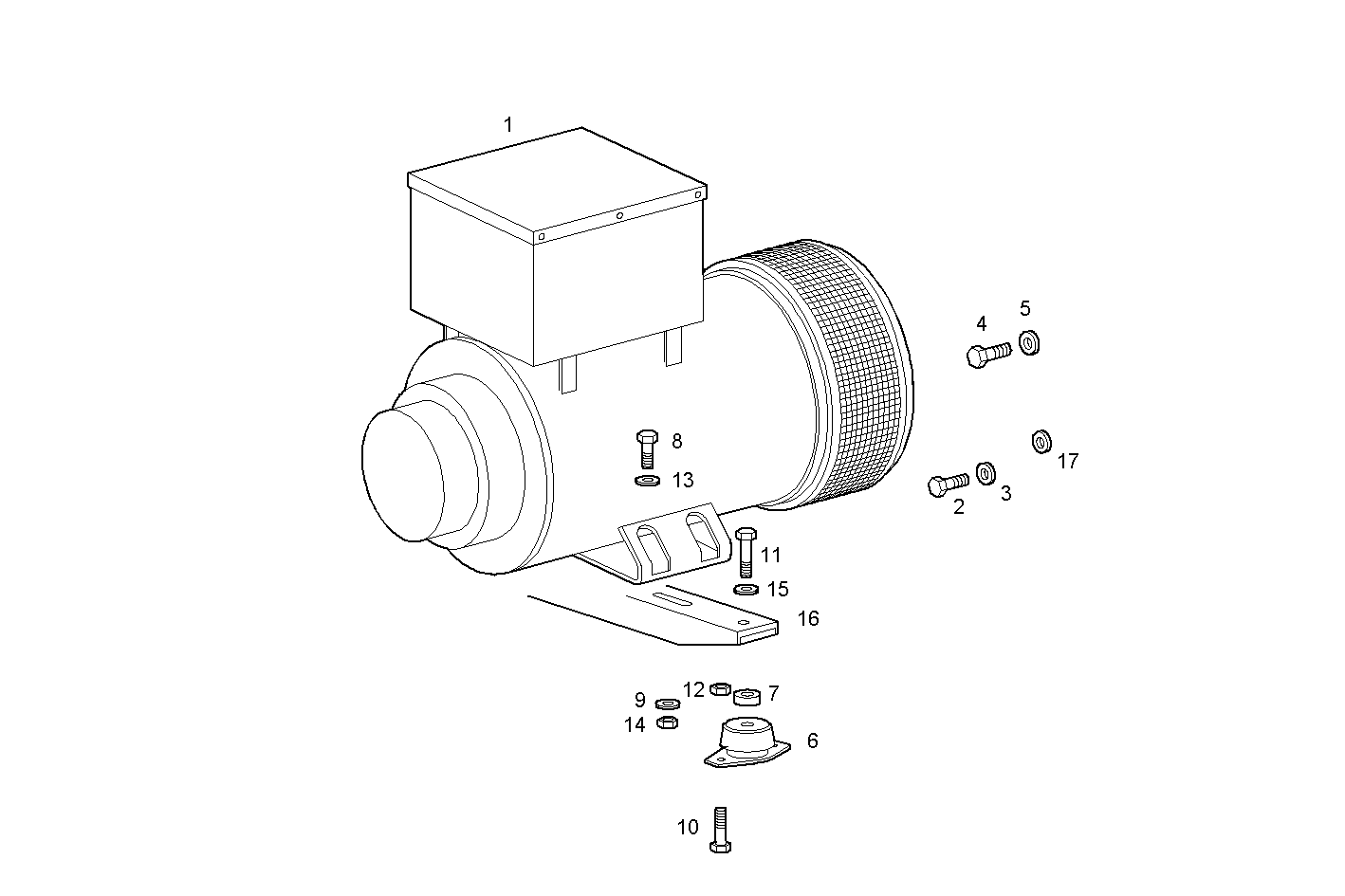

A37215010 ELECTRIC MACHINE - MARELLI
| Item | Part number | Description |
|---|---|---|
| 1 | 503112755 | ELECTRIC MACHINE MJB315 |
| 2 | 16608125 | HEXAGON BOLT M10X50 |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
| 5 | 17091074 | WASHER Ø12X24X2,8 MM |
| 6 | 503112690 | RUBBER PAD |
| 7 | 503112698 | SPACING BAR |
| 8 | 16615524 | HEXAGON BOLT |
| 9 | 17093174 | WASHER Ø24X46X5,4 MM |
| 9 | 17095504 | WASHER Ø14X28 MM |
| 10 | 16612424 | HEXAGON BOLT M14X40 MM |
| 11 | 16619824 | SCREW |
| 12 | 17038725 | NUT M14 |
| 13 | 17091674 | WASHER Ø14X27X3,0 MM |
| 14 | 17039721 | HEXAGON NUT M24 |
| 15 | 17096214 | WASHER |
| 16 | 503112683 | TIE |
| 17 | 17092174 | SPRING WASHER Ø16X32X3,4 |
