GECURSOR400EA.A71M

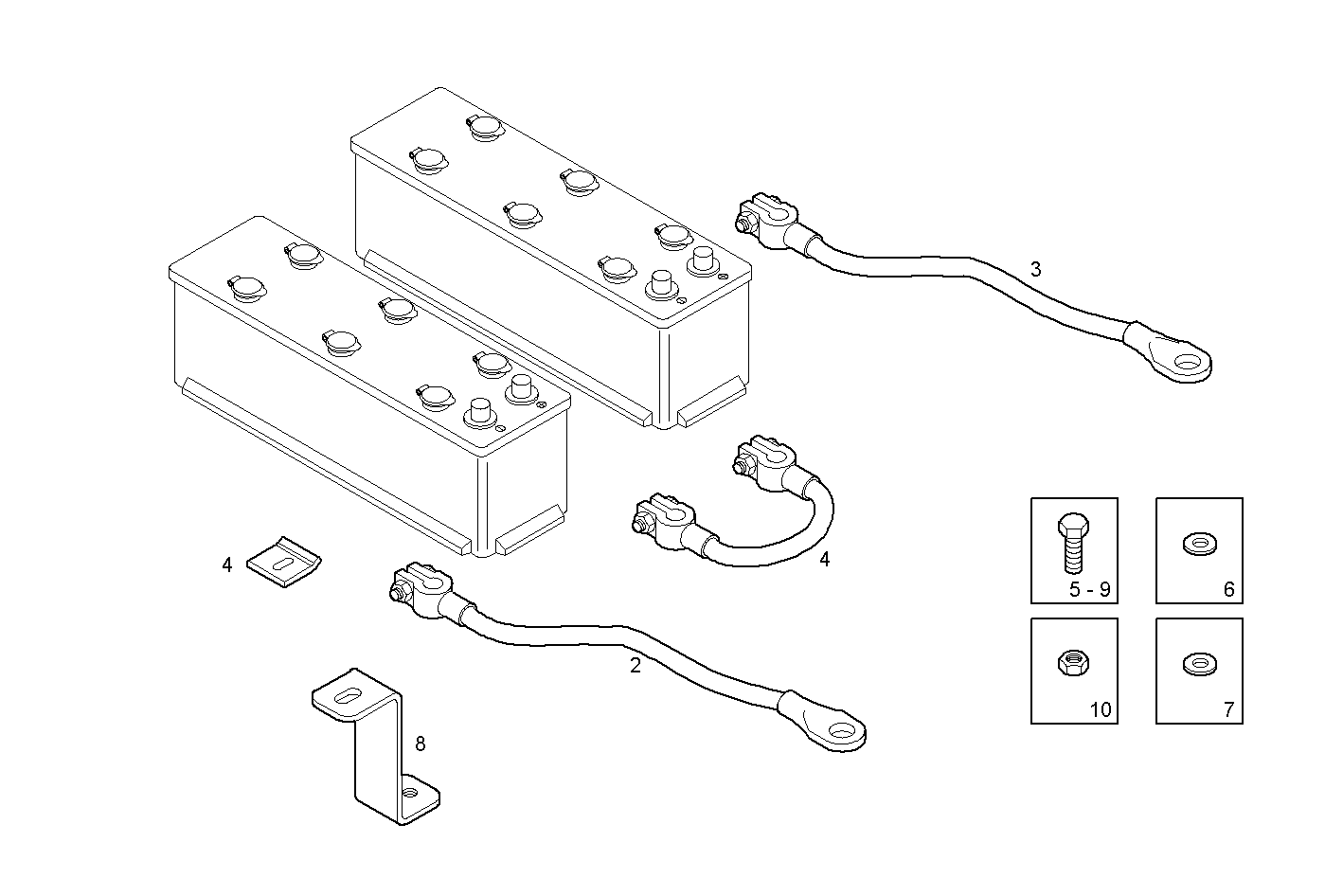

A30715002 STARTER BATTERY
| Item | Part number | Description |
|---|---|---|
| 1 | 8024305 | RETAINER |
| 2 | 503112740 | WIRE/CABLE - |
| 3 | 503112739 | WIRE/CABLE + |
| 4 | 503112738 | WIRE/CABLE |
| 5 | 16607625 | SCREW M10X25 |
| 6 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 7 | 16665604 | WASHER Ø10X20 MM |
| 8 | 503111670 | RETAINER |
| 9 | 16607434 | HEXAGON BOLT M10X16 MM |
| 10 | 17038131 | HEXAGON NUT M10 |
