GECURSOR400EA.R990

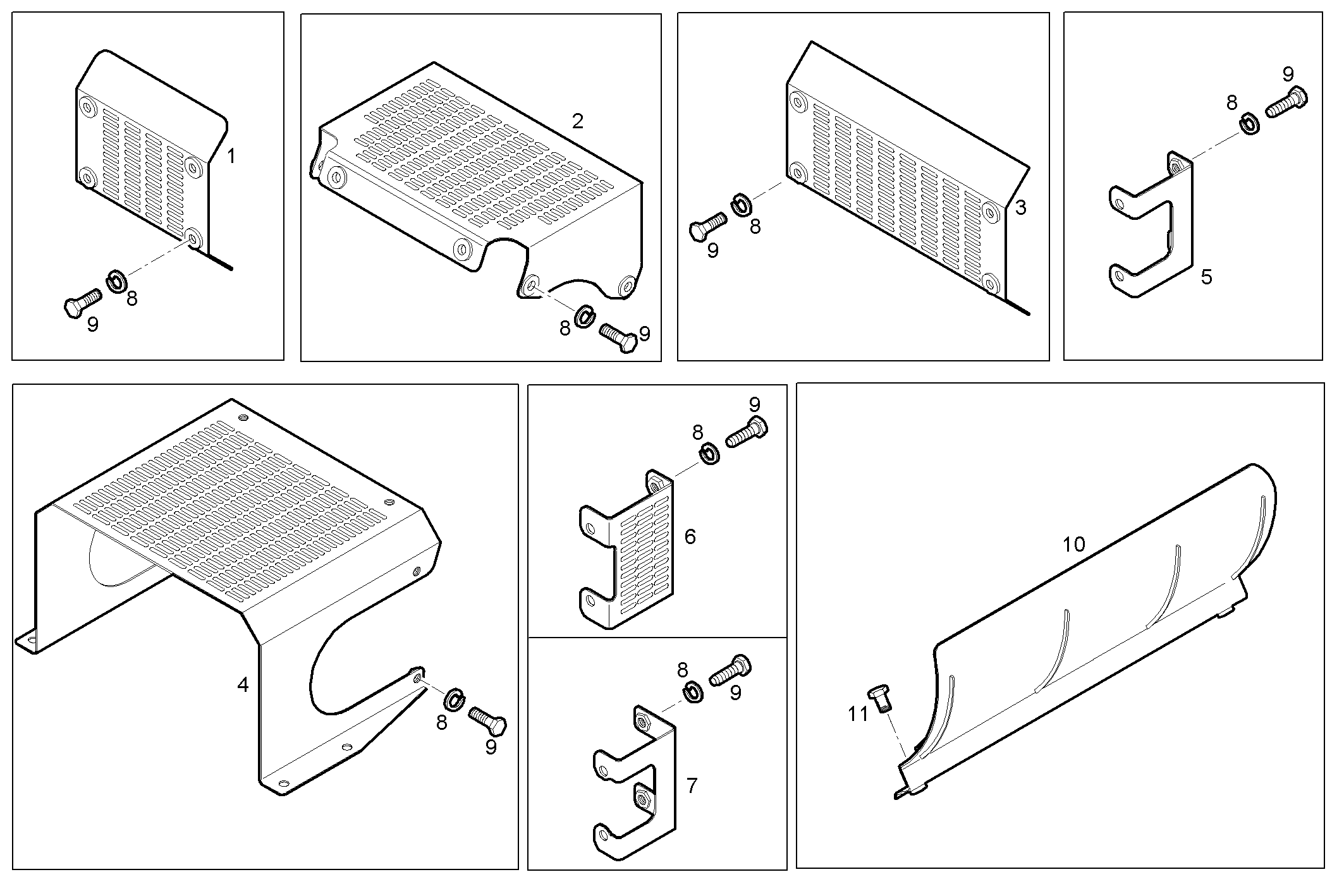

A48505013 GROUP SHIELDS
Item | Part number | Description |
---|---|---|
1 | 8043020 | PROTECTION |
2 | 8041235 | PROTECTION |
3 | 8041220 | PROTECTION |
4 | 8041216 | PROTECTION |
5 | 8043013 | PROTECTION |
6 | 8041206 | PROTECTION |
7 | 8043017 | PROTECTION |
8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
9 | 16605524 | HEXAGON BOLT M8X20 MM |
10 | 8041275 | PROTECTION |
11 | 16673635 | HEXAGON BOLT M8X1.25X20 |
