GEF3240MA.R980

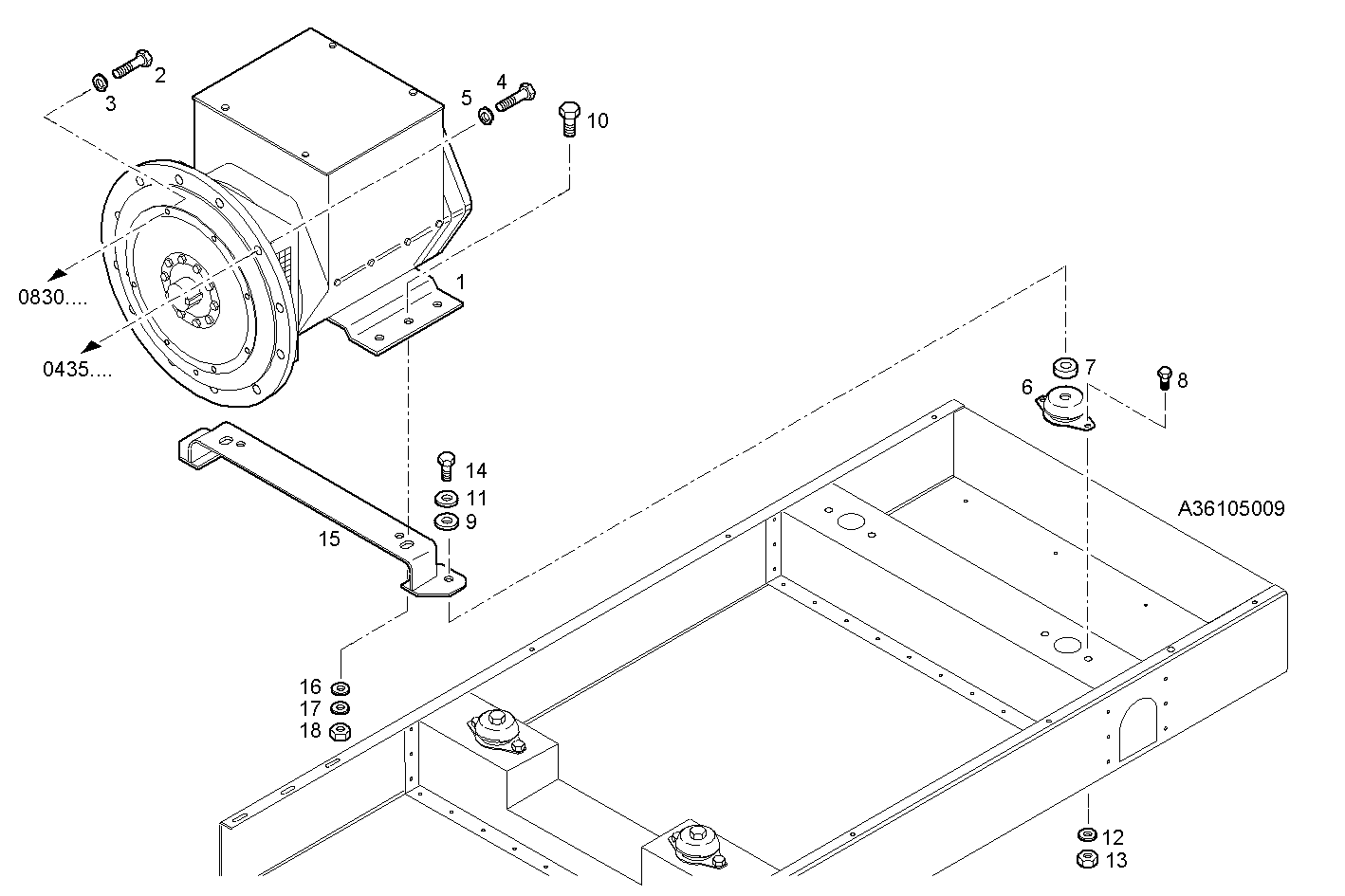

A37015027 SINGLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 503110523 ELECTRIC MACHINE Stamford
2 16619124 SCREW M10X22 MM
3 17494934 WASHER Ø10X18,1X2,2 MM
4 16607924 HEXAGON BOLT M10X1,5X40 MM
5 17090174 SPRING WASHER Ø10X20 MM
6 503111673 RUBBER PAD
7 8015486 SPACING BAR
8 16607734 HEXAGON BOLT M10X30 MM
9 17095724 WASHER Ø16 MM
10 16610035 SCREW M12X35 MM
11 17092174 SPRING WASHER Ø16X32X3,4
12 17090474 SPRING WASHER Ø10X27 MM SP=2,5
13 17038125 NUT M10
14 16615024 SCREW M16
15 503115148 TIE
16 17095304 WASHER Ø12X24 MM
17 17091074 WASHER Ø12X24X2,8 MM
18 17038425 HEXAGON NUT M12 (8)
