GEF3250MA.R980

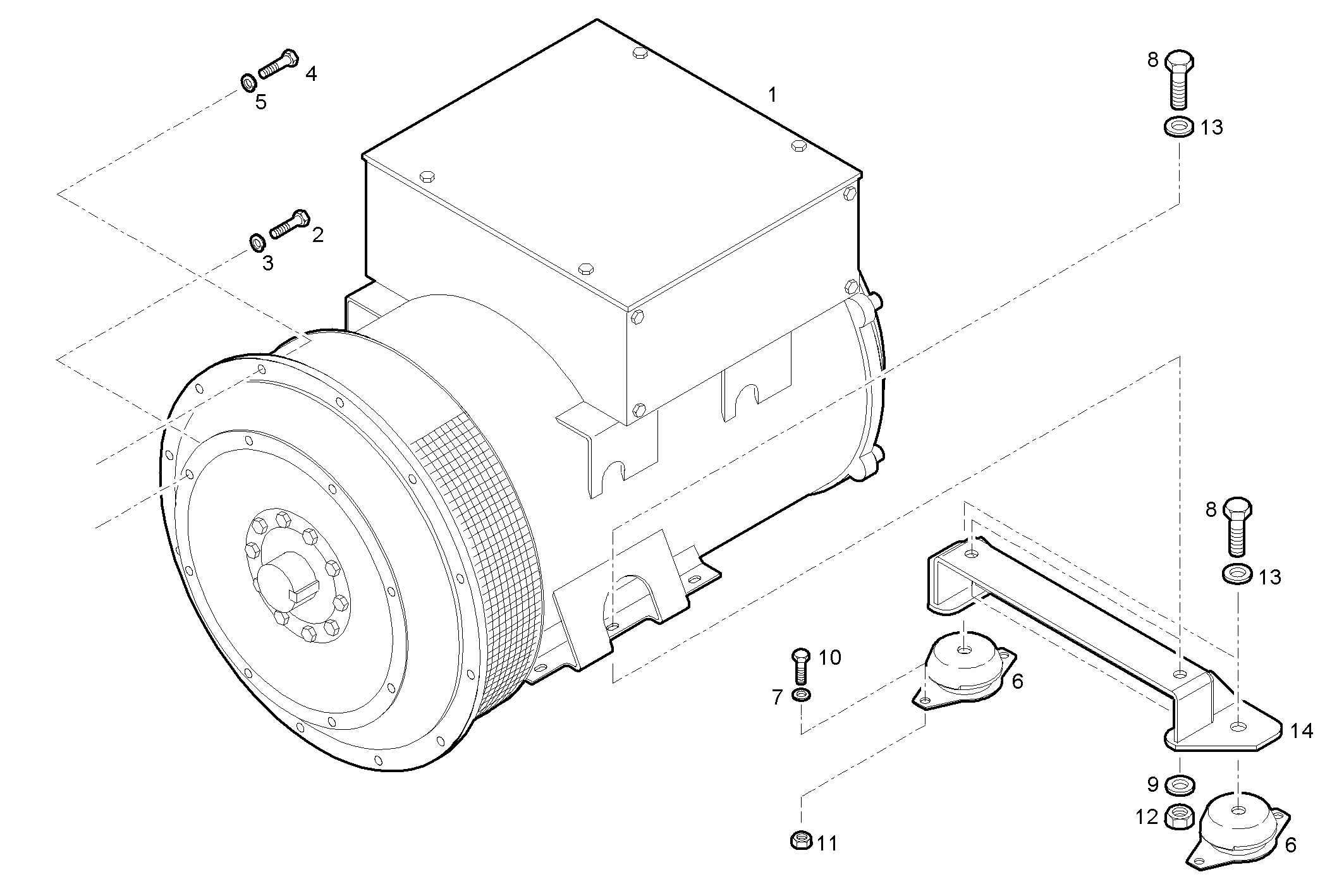

A37215040 SINGLE BEARING ELECTRIC MACHINE - MARELLI
| Item | Part number | Description |
|---|---|---|
| 1 | 503114655 | ELECTRIC MACHINE MJB200 |
| 2 | 16619124 | SCREW M10X22 MM |
| 3 | 17494934 | WASHER Ø10X18,1X2,2 MM |
| 4 | 16607825 | HEXAGON BOLT M10X35 MM |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 503111673 | RUBBER PAD |
| 7 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 8 | 16614524 | HEXAGON BOLT M16X35 MM |
| 9 | 17095724 | WASHER Ø16 MM |
| 10 | 16607734 | HEXAGON BOLT M10X30 MM |
| 11 | 17038125 | NUT M10 |
| 12 | 17038931 | HEXAGON NUT M16X2 |
| 13 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 14 | 503115147 | TIE |
